Kenwood DDX8022BT Prodotto Usato con Garanzia

il tuo prezzo: € 432,60

Prezzo riferito a singolo pezzo (IVA inclusa)

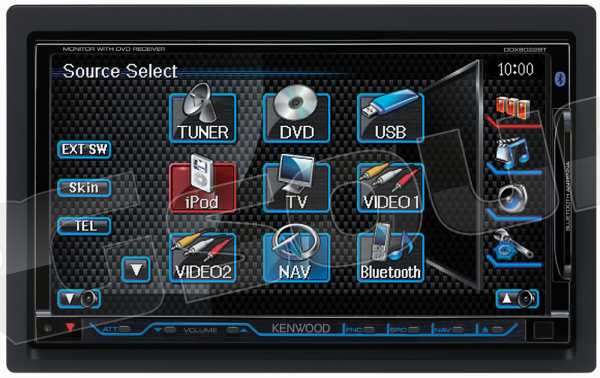

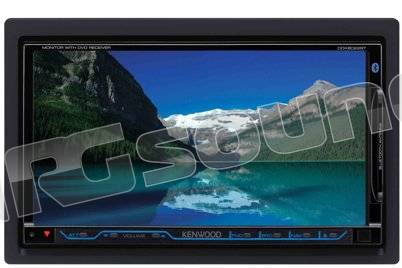

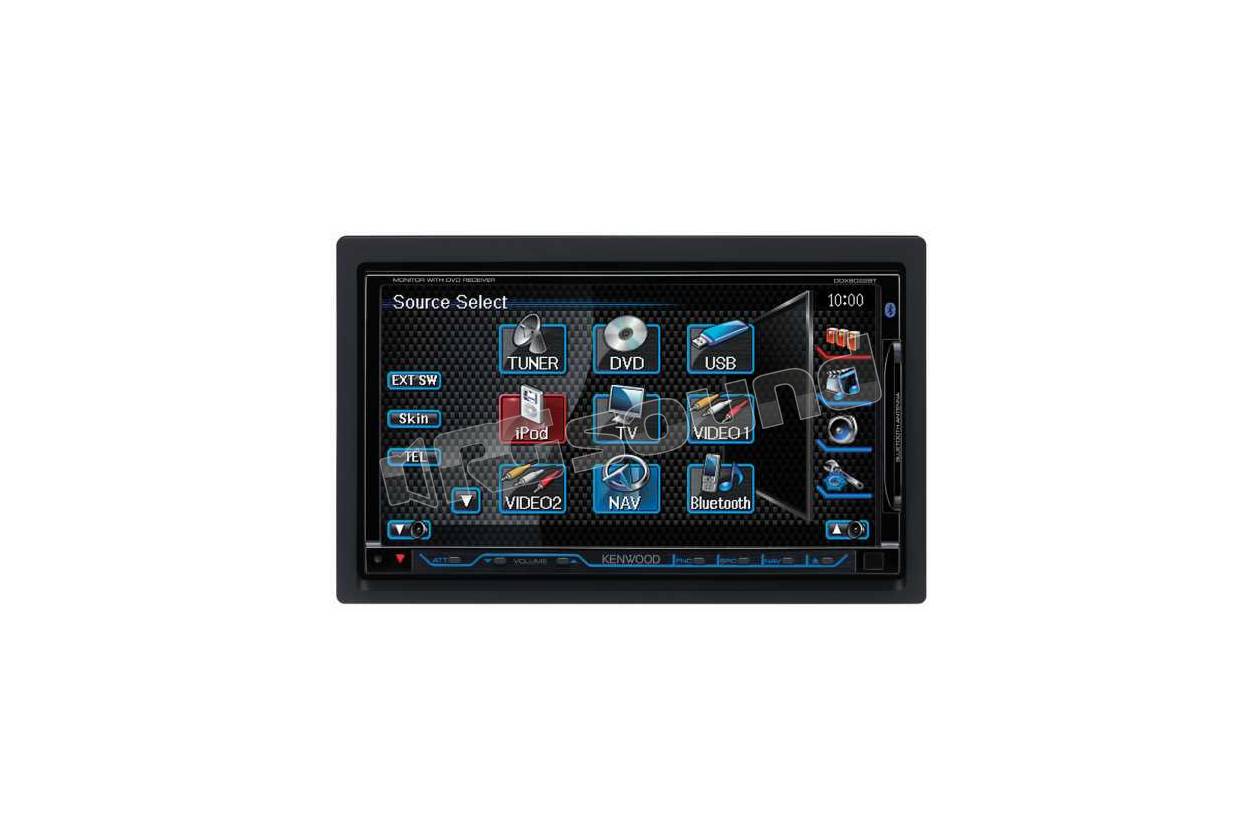

Kenwood DDX8022BT


Monitor da 6,95” touch screen con lettore DVD DiVX AAC WMA MP3 sintonizzatore AM/FM e vivavoce bluetooth integrato

La serie di sistemi multimediali ad alte prestazioni unisce funzionalità e qualità audio superiori in dimensioni compatte ma con un ampio monitor da 6,95”. Il modello di punta DNX8220BT con unità Bluetooth incorporata ed in grado di riprodurre la più ampia gamma di formati digitali, può vantare anche l’uso di un sistema di navigazione ad altissime prestazioni. Il monitor DDX8022BT, anch’esso dotato di unità Bluetooth incorporata e compatibile con i più svariati formati audio e video, comprende (così come il DNX8220BT) un decoder Surround incorporato a 5.1 canali. In entrambi i modelli, grazie alla comoda interfaccia USB potete sia riprodurre i contenuti audio inseriti nella memoria USB connessa che collegarvi il vostro iPod , tramite il cavo opzionale KCA-iP300V e visualizzarne i contenuti sia audio che video sul sistema. Grazie all’ampio display ed alla qualità audio eccezionale questi 2 modelli sono la scelta ideale per chi guida e non vuole rinunciare all’esperienza di un intrattenimento in auto a 360°.

  • 6.95 inch Interactive Touch Panel Control with Full Graphic User Interface
  • DVD Video/Audio-VR/±R/RW, DivX, MPEG 1/2 Video File (.mpg) & JPEG File (.jpg), AAC, WMA, MP3 playback
  • iPod Full Control/ iPod Video/ iPod Album Art with KCA-iP200(audio) or KCA-iP300V(audio&video)
  • USB interface built-in (x2), 5.1 channel decoder built-in
  • 2 RCA AV-In, 1 RCA AV-Out, 1 RCA Video Input for Rear View Camera
  • 4 Gold-plated RCA preouts (5V)
  • Digital 5.1 DSP( 13 bands EQ/X'over/Time aligment)
  • Digital TV tuner (DVBT) ready for KTC-D500E
  • Navigation ready for KNA-G421
  • Bluetooth Handsfree / Audio streaming built-in

General Features

DIN Size 2 DIN
Detachable Faceplate No
Disabled System Indicator (DSI) Yes
Security Code Function (Fixed) Yes
On Screen Display (OSD) Operation Yes
Smooth GUI Yes
Selectable GUI Background Wallpaper Yes
Key Illumination Blue
Installer Memory Yes
Back-up Memory Yes
Attenuator with Smooth Volume Return Yes
Touch Sensor Tone Yes
IR Remote Sensor Yes
IR Remote Control Yes, RC-DV330
Digital Clock (24H) Yes
ISO connector Yes
Bluetooth unit built-in Yes

Monitor Features

In-Dash/On-Dash In-Dash
LCD Type TFT 6.95" Wide
Display Mode 4 Mode (Full/Just/Zoom/Normal)
Screen Adjustments Brigtness/Tint/Color/Contrast/Black Level/Dimmer
Auto Dimmer Sensor Manual
Visual Source Mode DVD/Video/Navigation/(TV)/USB/iPod
Touch Panel Yes
Mechanism Angle Adjustment 5 Steps + Flat + Reverse Tilt
Reverse Tilt Yes
Slide Adjustment No
NTSC/PAL judge Auto

Multimedia GUI Features

OSDC Type Full Graphics
Colour Pallet 256
Base Colour Class 65000
Character Font English
Text English, Greek, Cyrillic
Background Customize Yes
Skin Change Yes

Tuner Features

RDS (PI, PS, AF, TI, Clock) Yes
Radio Text (RDS) Yes
Radio Text Plus Yes
Program Type Function (PTY) Yes
Enhanced Other Networks Function (EON) Yes
K3I - Clean Reception Tuner Yes
FM Reception Yes
AM (MW/LW) Reception Yes
Presets 24 Presets (18FM / 3LW / 3MW)
Station Select List
Automatic Memory Entry (AME) Yes
Up/Down Seek Tuning Yes
Tuning mode (Auto1 / Auto2 / Manual) Yes
FM Stereo / Mono Selector Yes


Mechanism DVS-8500
Disc Capacity 1 Disc(s)
DVD±R/RW Compatible Yes
DVD Region Code 2
VCD Compatible Yes
CD-R/RW Compatible Yes
CD Text Yes
MP3 Yes
ID3 Tag Yes
WMA Tag Yes
AAC Tag Yes
Digital/Analog Converter 24 bit
Shock Proof Yes
2nd Disc Prevention Mechanisme Yes
MPEG1/2 Video File (.mpg) Compatible Yes
JPEG File (.jpg) Compatible Yes
DivX (Certified) Yes
CD-DA Repeat/Scan/Random play Yes
Direct Search Yes
Time Code Display Yes
Resume Play Yes
Zoom Control (DVD/VCD) Yes
Disc Menu Direct Touch Yes
Picture Control (JPEG) Yes

USB Features

USB Interface port Yes, rear side
USB interface port Yes, rear (x2)
Rear USB interface port Yes
USB Type USB1.1 / USB 2.0
USB extension cable supplied no
iPod Direct (2 Wire) Yes
iPod Video Direct (3 Wire) Yes
MP3 playback with ID3 Tag Display Yes
WMA (Windows Media File) playback Yes
AAC (Advanced Audio Codec) playback Yes

Audio features

Max. Output Power (MOSFET Power IC) 4 x 50W
Pre-out 4RCA: Front/Rear/Subwoofer/Center
Pre-out Output Level 2V
Auxiliary Input No
Rear / Subwoofer Switchable Yes
Subwoofer Reference Level Adj. Yes
Dual Zone Source & Volume Control Yes
Dual Zone (FRONT / REAR Switchable) Yes
Source Tone Control & Memory Bass / Mid / Treble
Balance/Fader Control Yes
Loudness Control Yes
Att.(-20dB) with smooth Volume Return Yes
System QEX (Preset & Manual Sound Control) Yes
System E's+ (Built-in HPF & LPF) Yes
Beep On/Off Yes

Multimedia DSP Features

Position Control Yes
Position Preset 4
Position Cabin Size Yes
Parametric Equalizer Yes
Parametric Equalizer Bands 13
Preseted Parametric Equalizer Settings Yes
Manual Parametric Equalizer Settings Yes
Time Aligment Yes
High Pass Filter Yes (Front/Rear/Center)
Low Pass Filter Yes (Non-Fading)
Cross-over Yes
WOW 3D Yes
WOW TrueBass Yes
Dolby PrologicII Yes
Dolby Digital Decode Yes
dts decode Yes
Speaker Size Control Yes
Car type control Yes
Channel Level Control Yes

Video Features

Audio/Video Output 1 RCA
Audio/Video Input Yes, 2 RCA
Video-In for Rear-view Camera 1 dedicated video input (RCA)
Mirror-mode on Rear-view Image Yes
Detection Mode Rear View Camera Reverse sensor wire
DVD Menu Direct Touch Operation Yes
Dolby Pro Logic II decoder Yes
dts Decoder Yes
MPEG Decoder Yes
Linear PCM Decoder Yes
TV ready Yes


PS Amplifier Control System (5L-Bus) No
External Media Control BUS (KAB) Yes
iPod Direct Control (2 wire) Yes
iPod(Video) Direct Control (3 Wire) Yes
OEM Wired Remote Control Yes
Parking sensor wire Yes
Reverse sensor wire Yes
Power Control (P.CON) wire Yes
External Relay Control Yes
2-way (Tel/Navi) mute wire Yes
Dimmer control wire Yes
TV Tuner Control Yes
Navigation RGB Input Yes


Receive Yes
Disconnect Yes
Private conversation Yes
Automatic receive time setting Yes
Voice output SP setting Yes
Call interrupt Yes
Dual Tone Multi Frequency (DTMF) Yes


Phone device status display Yes
Audio device status display Yes
Signal strength display Yes
Remaining battery display Yes


Play Yes
Playback control (AVRCP profile) Yes


Device search (Headunit) Yes
Device search (Bluetooth) Yes
Bluetooth device delete Yes


SMS download Yes
Check received SMS Yes
Check send SMS Yes
SMS receive (Unopened SMS display) Yes
MS sent (Unopened SMS display) Yes


Voice tag registration Yes
Voice tag confirmation Yes
Phonebook search by voice tag Yes


Phonebook download Yes
Phonebook search Yes
Sub index search Yes
Phonebook search by initial Yes
Call History 10 Calls
Receive History 10 Calls
Preset phone number 3 preset x 5 devices

Tuner Specifications

FM Frequency Range 87.5MHz ~ 108MHz
FM Frequency Step 50kHz
FM Usable Sensitivity 0.7μV/750ohm (S/N 26dB)
FM Quieting Sensitivity 1.6μV/75ohm (S/N 46dB)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Sigal to Noise Ratio 65dB(MONO)
FM Selectivity(DIN) over 80dB (±400kHz)
FM Stereo Separation (1kHz) 35dB
MW Frequency Range 531kHz ~ 1611kHz
MW Frequency step 9kHz
MW Usable Sensitivity 25μV (S/N 20dB)
LW Frequency Range 153kHz ~ 281kHz
LW Usable Sensitivity 45μV (S/N 20dB)

DVD Specifications

D/A Converter 24 bit
Video decoder Linear PCM/Dolby Digital/dts/MLP/MP3/WMA/AAC
Audio decoder MPEG1/MPEG2/MPEG4(Divx)
Wow & Flutter Below Measurable Limit
Freq. Resp. (96kHz Sampling) 20Hz ~ 44kHz
Freq. Resp. (48kHz Sampling) 20Hz ~ 22kHz
Freq. Resp. (44,1kHz Sampling) 20Hz ~ 20kHz
Total Harmonic Distortion 0.01% (1kHz)
Signal to Noise Ratio 98dB (1kHz)
Dynamic Range 98dB
Disc Format DVD-Video/Video-CD/CD-DA
Sample Frequency 44.1kHz/48kHz/96kHz
Quantifying bit number 16/20/24bit

USB Specifications

USB Version compatibility 1.1 / 2.0
File System FAT 16/32
Maximum Supply current 500mA
D/A Converter 24 bit
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC "m4a" Files
WAV Decode no

Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 30W x 4
Preout Level 5000mV / 10kOhm,
Preout Impedance 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
Bass Tone Control 100Hz ±10dB
Middle Tone Control 1kHz ±10dB
Treble Tone Control 10kHz ±10dB

DSP Specifications

Frequency band 13 bands
Frequency band - Front 62.5Hz ~ 16kHz
Frequency band - Center 62.5Hz ~ 16kHz
Frequency band - Rear 62.5Hz ~ 16kHz
Equalizer Gain –9db ~ +9db
High Pass Filter frequency Through/30 ~ 250 (Hz)
High Pass Filter Slope -12/-18/-24 dB/Oct
Low Pass Filter frequency 30 ~ 250(Hz)/Through
Low Pass Filter Slope -12/-18/-24 dB/Oct
Time aligment - Front 0 ~ 6.1m (5cm step)
Time aligment - Center 0 ~ 3.4m (5cm step)
Time aligment - Rear 0 ~ 6.1m (5cm step)
Time aligment - Sub 0 ~ 6.1m (5cm step)
Car type ► OFF
Speaker type - Center ► NONE
► 40mm X 70mm
► 5cm
► 10cm
► 13cm
► 16cm OVER
Speaker type - Front ► O.E.M.
► 10cm
► 13cm
► 16cm
► 17cm
► 18cm
► 4" x 6"
► 5" x 7"
► 6" x 8"
► 6" x 9"
► 7" x 10"
Speaker type - Rear ► NONE
► O.E.M
► 10cm
► 13cm
► 16cm
► 17cm
► 18cm
► 4" x 6"
► 5" x 7"
► 6" x 8"
► 6" x 9"
► 7" x 10"
Speaker type - Sub woofer ► NONE
► 16cm
► 20cm
► 25cm
► 30cm
► 30cm over
Channel Level ±10dB

Video Specifications

Color System of External Video Input NTSC/PAL
External Video Input Level (RCA) 1Vpp / 75Ohm
External Audio Max. Input Level (RCA) 2V / 25kOhm
Video Output Level (RCA) 1Vpp / 75Ohm
Audio Output Level (RCA) 1Vpp / 10kOhm

Monitor Specifications

Screen size (Diagonal) 6.95 Inches Wide
Screen Size (WxH) 156.2 x 82.4mm
Display system Transparant TN LCD Panel
Drive system TFT Active Matrix System
Number of Pixels 336960pixels (480(H) x 234(V) x RGB)
Effective pixels 99.99%
Pixel arrangement RGB Striped
Back lighting Cold Cathode Fluorescent Tube

CE_Bluetooth specs

Technology bluetooth 1.2 certified
Frequency 2.402 - 2.48 GHz
Output power +4dBm(max), 0dBm (AVE) power class 2
Maximum range Line of sight approx. 10 meter
Handsfree profile (HFP) Yes
Serial port profile (SPP) Yes
Headset profile (HSP) Yes
Advanced audio distribution profile (A2DP) Yes
Audio/Video remote control profile (AVRCP) Yes
Object push profile (OPP) Yes
Phonebook access profile (PBAP) Yes
Synchronization profile (SYNC) Yes


Release keys 2 pieces
Escutcheon Yes
Installation Sleve Yes
DC cord (Molex to ISO) 20 cm
Relay control Cord 2 wires, 50 cm

General Specifications

Operating voltage 14.4V (10 ~ 16V Allowable)
Current Consumption 15A
Dimensions (WxHxD) 182 x 112 x 163mm
Weight 2550gr
Operation Temperature Range -10°C ~ 60°C
Storage Temperature Range -20°C ~ 85°C
Instruction Manuals ENG/FRE/GER/DUT/ITA/SPA/POR
Maximum current Relay control wire(s) 500 mA
