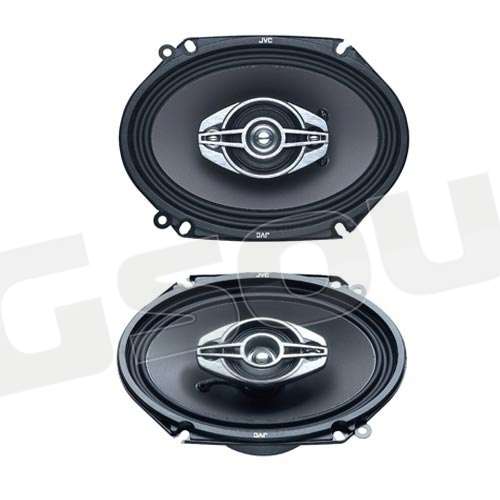

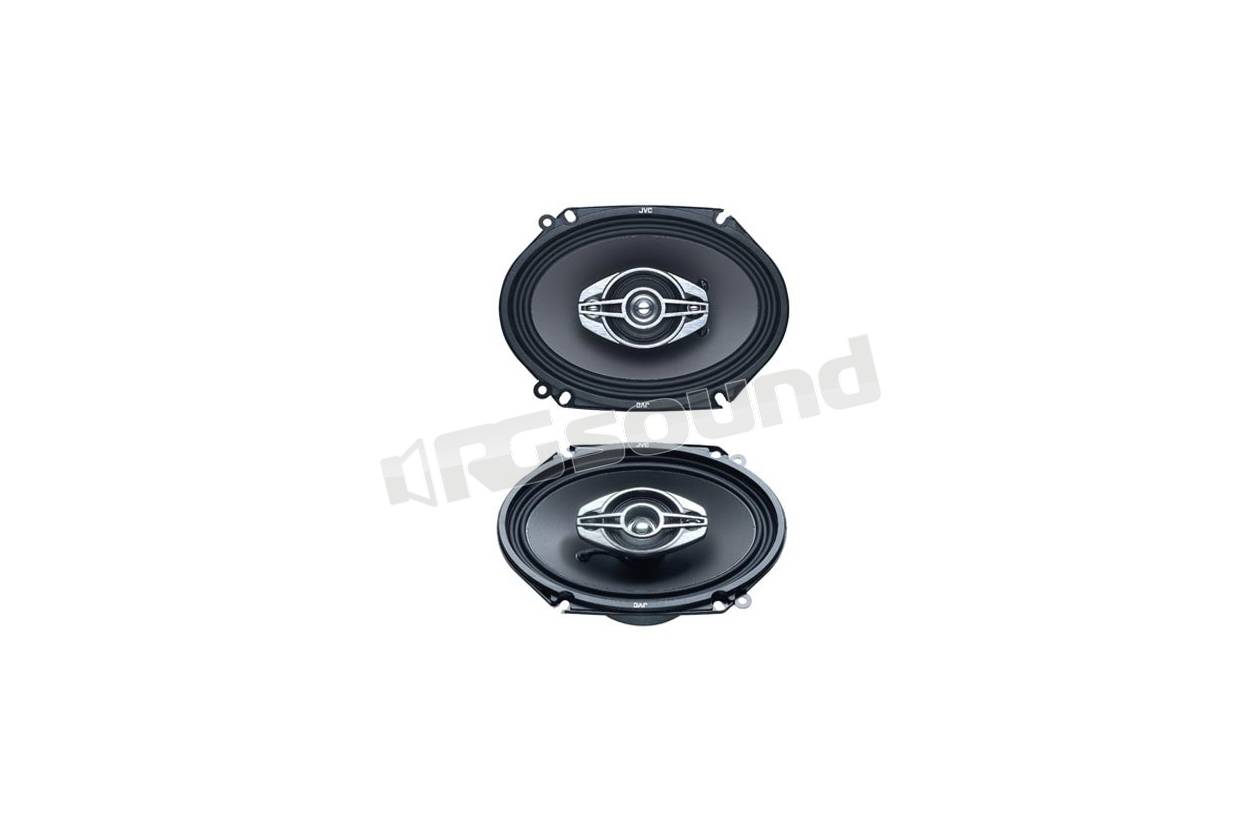

CS-HX6848
Product Description
THESE SPEAKERS ARE A PERFECT REPLACEMENT SIZE FOR MOST NEW MAZDAS AND FORDS.6’ x 8’/5" x 7" 4-Way Coaxial Speakers with 310
- Watts Max Power Handling.
- 4-Way Coaxial
- 310W Peak/50W RMS Power
- Shallow and Slim Design
- Frequency Response: 30 - 25,000Hz
- Sensitivity: 85dB/W.m
- 4-Way Coaxial
- 310W Peak/50W RMS Power
- Shallow and Slim Design
- Frequency Response: 30 - 25,000Hz
- Sensitivity: 85dB/W.m
- Crossover Frequency: 4, 8, 12kHz
- Mica Aramid Fiber + Carbon Fiber Composite Olefin Cone Woofer
- Metal Coated Poly-Ether Imide Dome Tweeter
- Metal Coated Poly-Ether Imide Super Tweeter
- Strontium Magnet (Woofer)
- Neodymium Magnet (Midrange)
- Twin Roll Rubber Edge
- Heat-Resistant Voice Coil
- GM 5’’ x 7’’ (13 x 17cm) Compatible
- Mounting Depth: 2-13/32’’ (61 mm)
Product Specifications
| 1Speakers |
| Woofer |
CS-HX6848 |
| Size |
6’’ x 8’’ (15 x 20 cm) |
| Type |
4-Way Coaxial |
| Twin Roll Rubber Edge |
Yes |
| Heat-Resistant Voice Coil |
Yes |
| Strontium Magnet |
Yes |
| Midrange |
CS-HX6848 |
| Size |
1-31/32’’ (5 cm) |
| Type |
|
| HHC Cone |
Yes |
| Neodymium Magnet |
Yes |
| Tweeter |
CS-HX6848 |
| Size |
19/32’’ (1.5 cm) |
| Supertweeter |
CS-HX6848 |
| Size |
1/2’’ (1.2 cm) |
| General |
CS-HX6848 |
| Frequency Response |
30 - 25,000Hz |
| Power Handling Capacity (Nom.) |
50W |
| Power Handling Capacity (Max. music power) |
310W |
| Impedance |
4 ohms |
| Sound Pressure Level |
85dB/W.m |
| Crossover Frequency |
4, 8, 12kHz |
| Weight |
|
| Magnet Mass |
332g (11.7 oz) |
| Mounting Depth |
2-13/32’’ (61 mm) |
