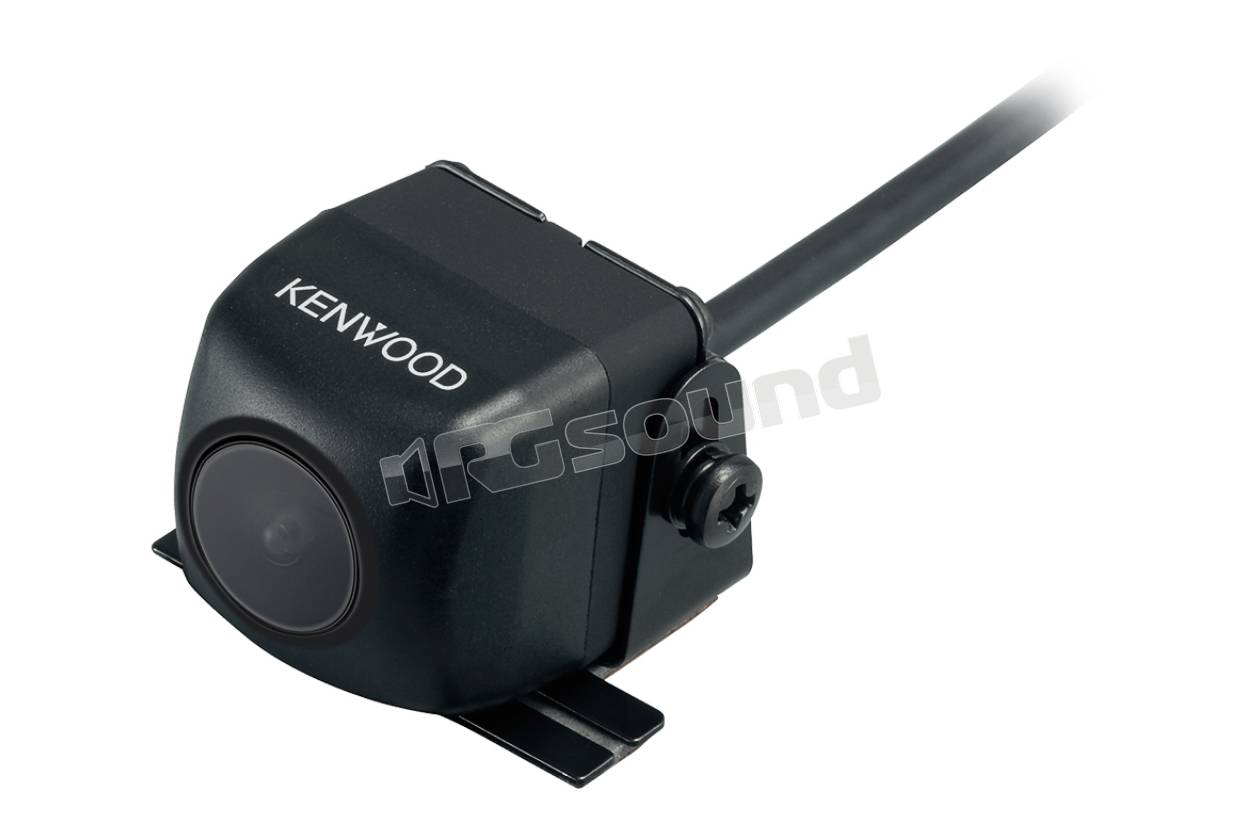

Kenwood CMOS-230 retrocamera CMOS universale

il tuo prezzo: € 129,00

Prezzo riferito a singolo pezzo (IVA inclusa)

Caratteristiche CMOS-230

Immagine speculare grandangolare
Sensore CMOS 1/3.6" a colori
Impermeabile e base di montaggio flessibile
NTSC Video Signal Out (RCA)


Caratteristiche CMOS-230

Camera Type 1/3.6" colour CMOS sensor
Colour type Yes
Effective number of pixels roughly 330000
High sensitivity Pixels Yes
Output video wide-angle mirror image
Waterproof chassis Yes
Mounting system Fexible mount base
Installation positions Rear
Rear view switching Reverse line
High voltage protection Yes
Wide angle lens Yes
Focal length f: 1.12mm, F value 2.2
Horizontal Angle view +/- 128°
Vertical Angle View +/- 103°
Illumination range approx. 0.9 to 100000 lux
Iris System Electronic
White balance Automatically
Scanning System Interlace
Synchronizing System Internal
Video output level 1Vpp, 75Ω
Video signal format NTSC (Mirror view)
Connection cable (DC+video) 5 m
Operating voltage 14.5V (9 ~ 16V Allowable)
Maximum Current Consumption 0.05A
Dimensions (WxHxD) 23.4 x 23.4 x 23.9mm
Weight 22gr
Operation Temperature Range -30°C ~ 70°C
Storage Temperature Range -40°C ~ 80°C
