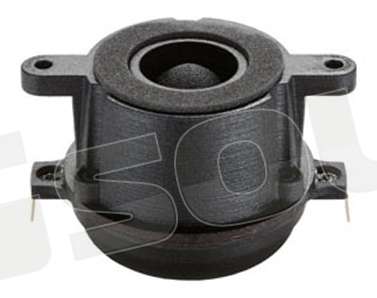

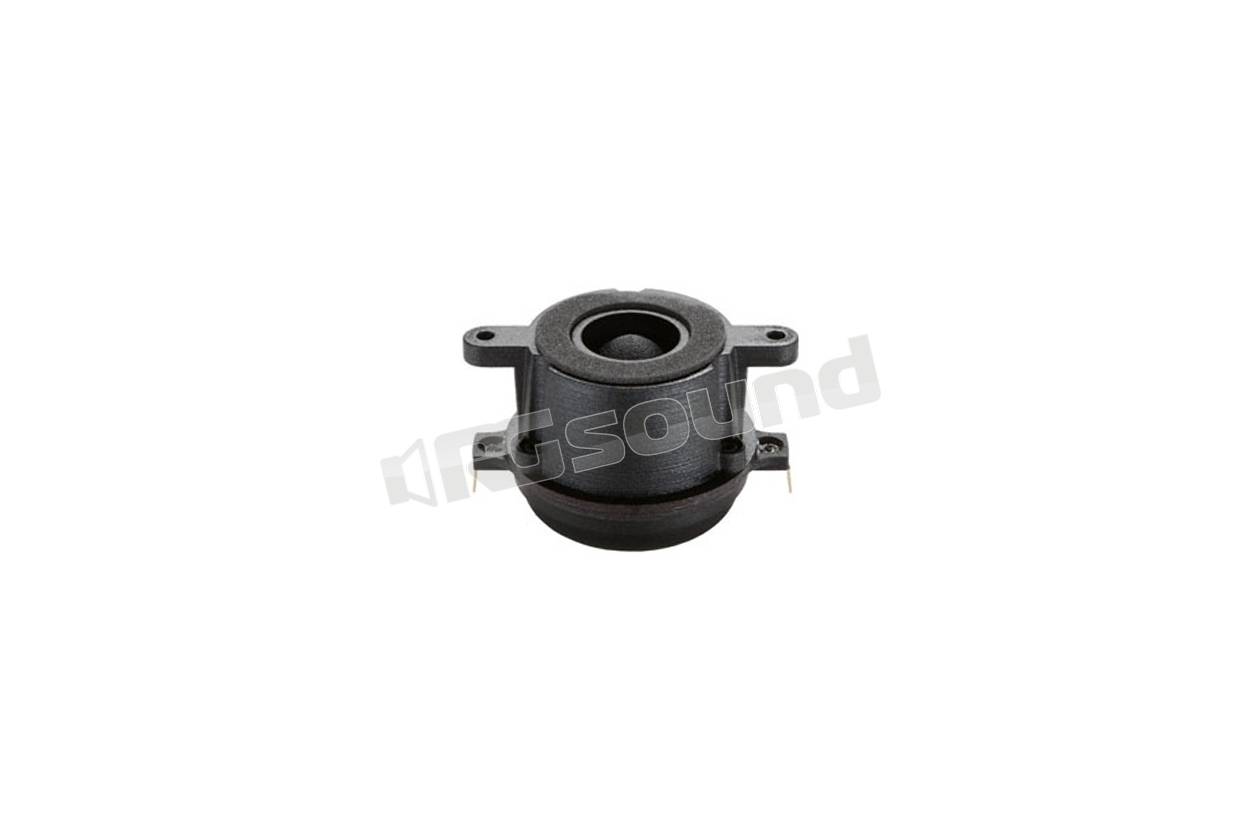

Ciare CD-381 T

CIARE CD-381T DRIVER A COMPRESSIONE

Caratterstiche CD-381 T

60Watt Max Power
1 in Horn throat diameter
Flat Titanium diaphragm
38 mm (1.50 in) voice coil, aluminium wire
Neodymium magnet assembly
16 Ohm available

Measure Conditions
Measurement executed in free air (1m) in semi-anechoic chamber
+ Plane Wave Tube
Applied RMS Voltage is set to 2.83 V for 8 Ohm nominal impedance
Impedance module related to driver in free air
Frequency response with driver mounted on: PR312

Specifiche CD-381 T

Throat Diameter 1 in - 25.4 mm
Nominal Impendance 8 Ohm
Minimum Impedance 7.2 Ohm
Direct Current Resistance (Re) 5.6 Ohm
Minimum Crossover Frequency (1) 2 kHz
Sensitivity (1W/1m) (2) 108 dB
Frequency Range 1.2 ÷ 18 kHz
AES Power (3) 30 Watt
Program Power (4) 60 Watt
Diaphragm Material Flat Titanium
Voice Coil Diameter 38 mm (1.5 in)
Voice Coil Winding Material Aluminum
Voice Coil Former Material Kapton
Phase Plug Material Reinforced plastic polymer
Magnet Material Neodymium
Full Throat Angle 25.3 degree
BL Factor 4.6 N/A
Flux Density 1.52 T
Inductance (Le) 0.061 μH
Net weight 0.40 kg (0.88 lb)
Overall Diameter 60 mm (2.36 in)
Mounting holes diameter 2 x M5 holes 180°
Mounting bolt diameter 76 mm (2.99 in)
Total Volume Size 0.12 dm3 (0.004 ft3)
Total Depth 52 mm (2.05 in)
Units per Shipping Box 12 units
Shipping Box Size (mm) 305 x 295 x 210 mm
Shipping Box Size (in) 12 x 11.6 x 8.3 in

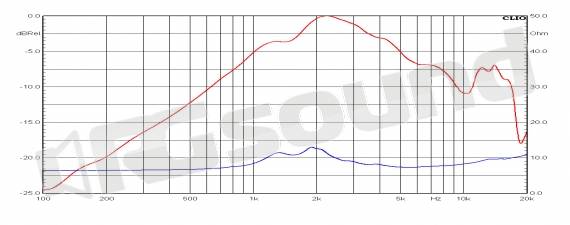

Plane Wave Tube

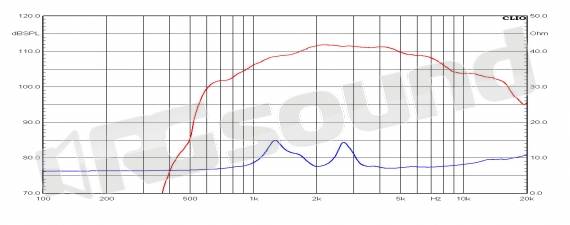

Semi-Anechoic Chamber
