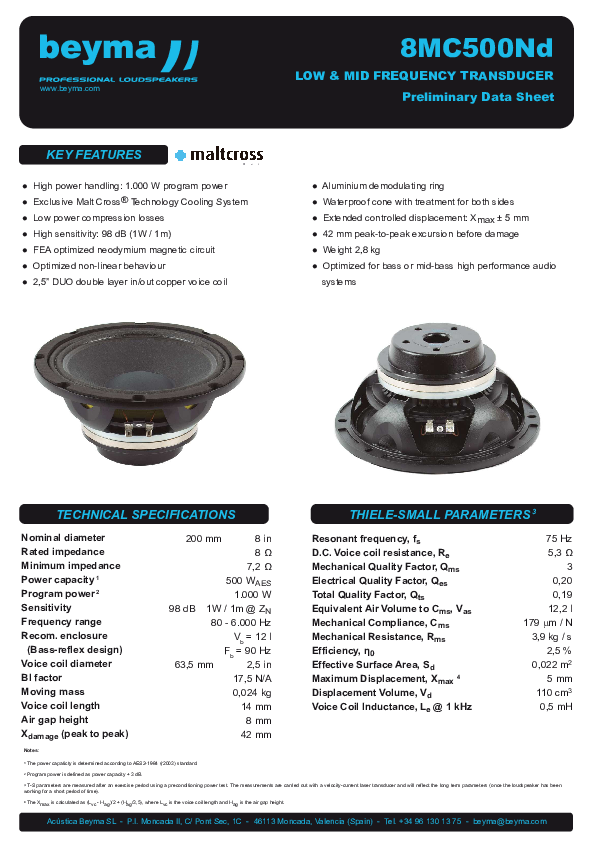

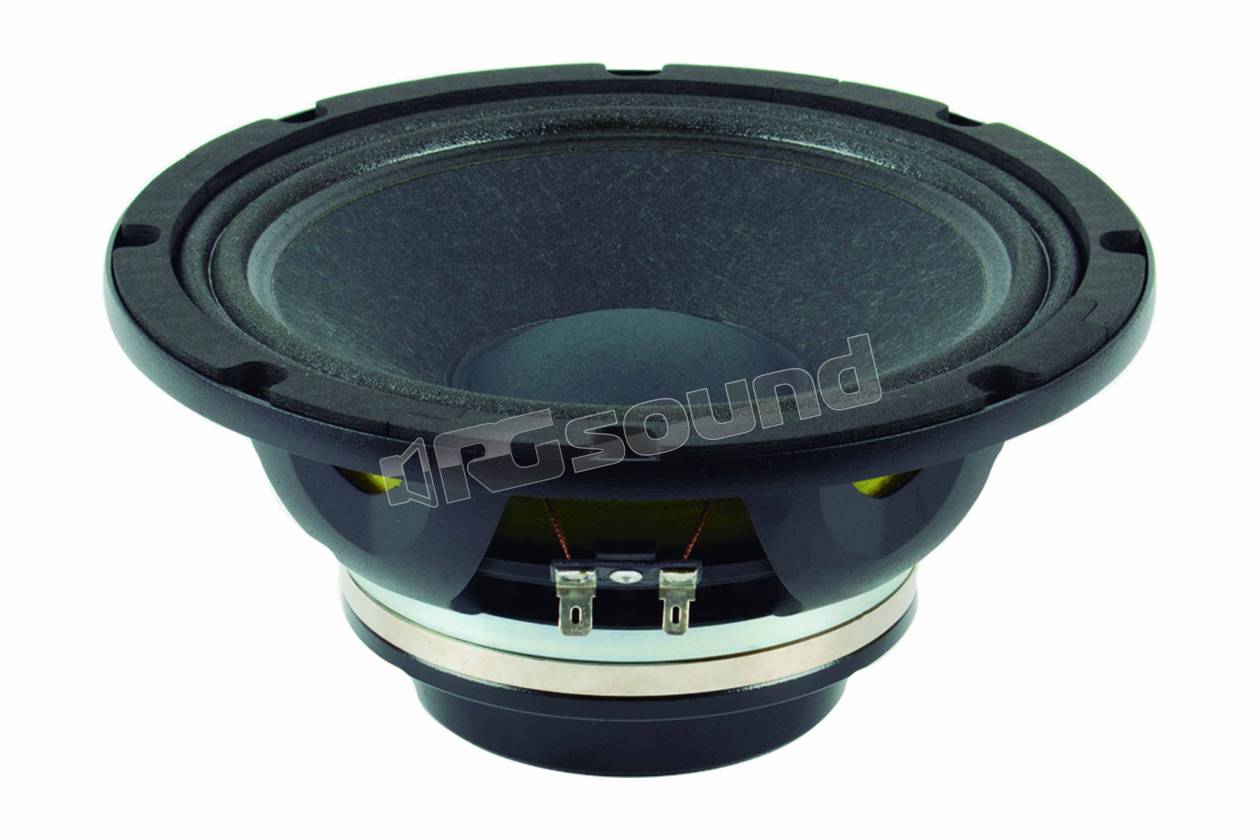

Beyma 8MC500Nd low e mid frequency transducer 20cm

Beyma
il tuo prezzo: € 181,70
Prezzo riferito a singolo pezzo (IVA inclusa)

Bryman 8MC500Nd low & mid frequency transducer da 200 mm, con impedneza 8 Ohm e una potenza di 500 W



Caratteristiche tecniche:

Nominal impedance 8 Ohm

Power capacity 500 W AES

Nominal diameter 200 mm 8 in

Sensitivity 98 dB 1 W @ 1 m @ ZN

Minimum impedance 7.2 ohm

Frequency range 80-6000 Hz

Program power 1000 W

Recommended enclosure volume 12 l

Voice coil diameter 63.5 mm 2.5 in

BL factor 17.5 N/A

Moving mass 0.024 kg

Winding length 14 mm

Air gap height 8 mm

Xdamage pp 42 mm



Fs 75 Hz

Re 5.3 ohm

Qms 3

Qes 0.20

Qts 0.19

Vas 12.2 l

Cms 179 µm / N

Rms 3.9 kg/s

Efficiency % 2.5

Sd 0.022 m²

Xmax 5 mm

Vd 110 cm³

Le @1 kHz

0.5 mH



Depth 100 mm 3.9 in

Net weight 2.8 kg 6.2 lb

Total weight 3.1 kg 6.83 lb

Magnet Neodymium
