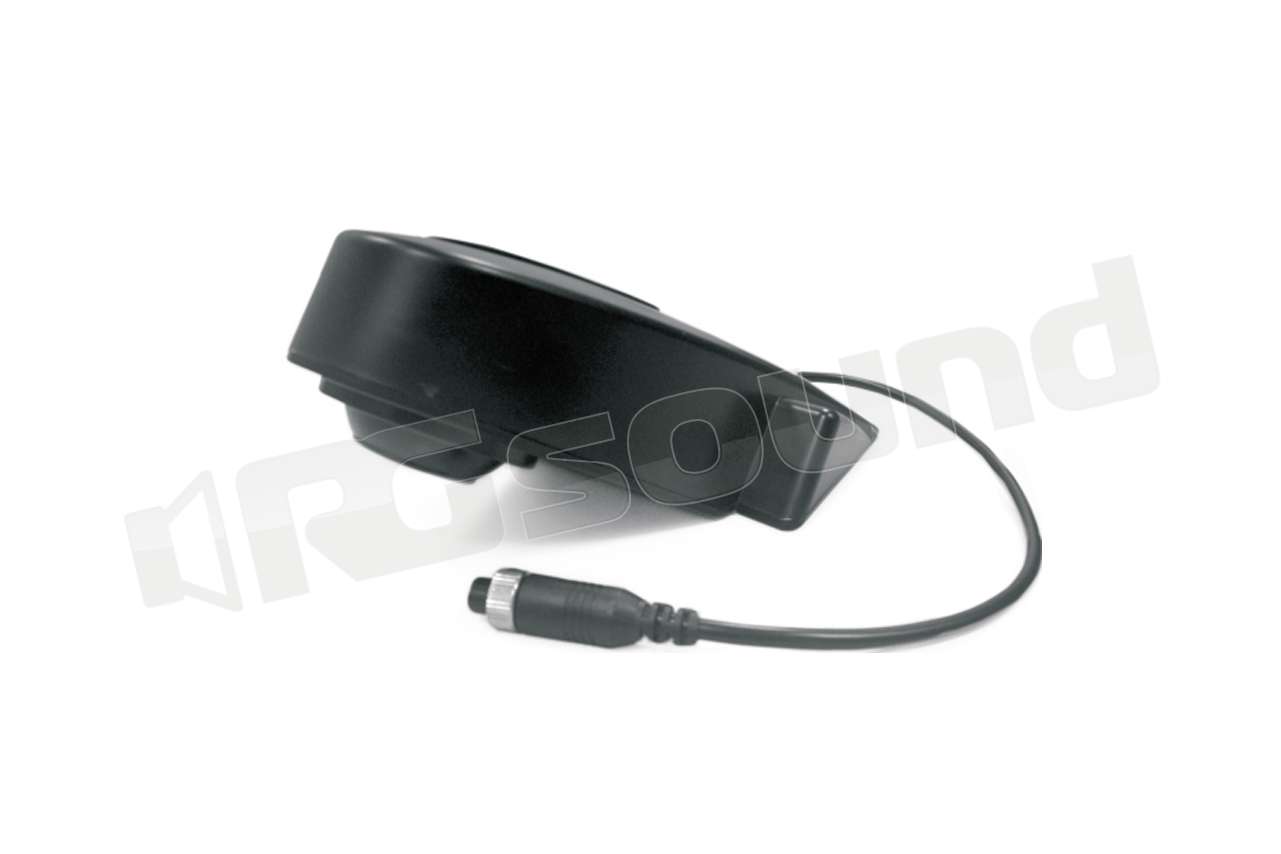

Calearo 7137738 telecamera posteriore industriale CAM-970

Calearo 7137738 CAM-970 telecamera posteriore industriale completamente impermeabile (IP68). La CAM-970 è realizzata in lega di alluminio e custodia in plastica, sensore CCD 1/3 ".

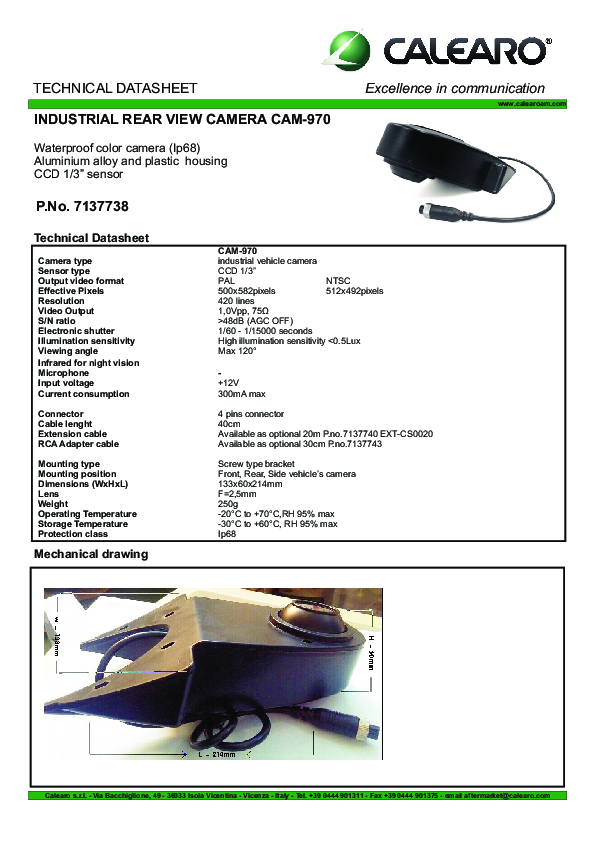

Caratteristiche 7137738 CAM-970

Camera type industrial vehicle camera
Sensor type CCD 1/3”
Output video format PAL NTSC
Effective Pixels 500x582pixels 512x492pixels
Resolution 420 lines
Video Output 1,0Vpp, 75Ù
S/N ratio >48dB (AGC OFF)
Electronic shutter 1/60 - 1/15000 seconds
Illumination sensitivity High illumination sensitivity <0.5Lux
Viewing angle Max 120°
Infrared for night vision ●
Input voltage +12V
Current consumption 300mA max
Connector 4 pins connector
Cable lenght 40cm
Extension cable Available as optional 20m P.no.7137740 EXT-CS0020
RCA Adapter cable Available as optional 30cm P.no.7137743
Mounting type Screw type bracket
Mounting position Front, Rear, Side vehicle’s camera
Dimensions (WxHxL) 133x60x214mm
Lens F=2,5mm
Weight 250g
Operating Temperature -20°C to +70°C,RH 95% max
Storage Temperature -30°C to +60°C, RH 95% max
Protection class Ip68
