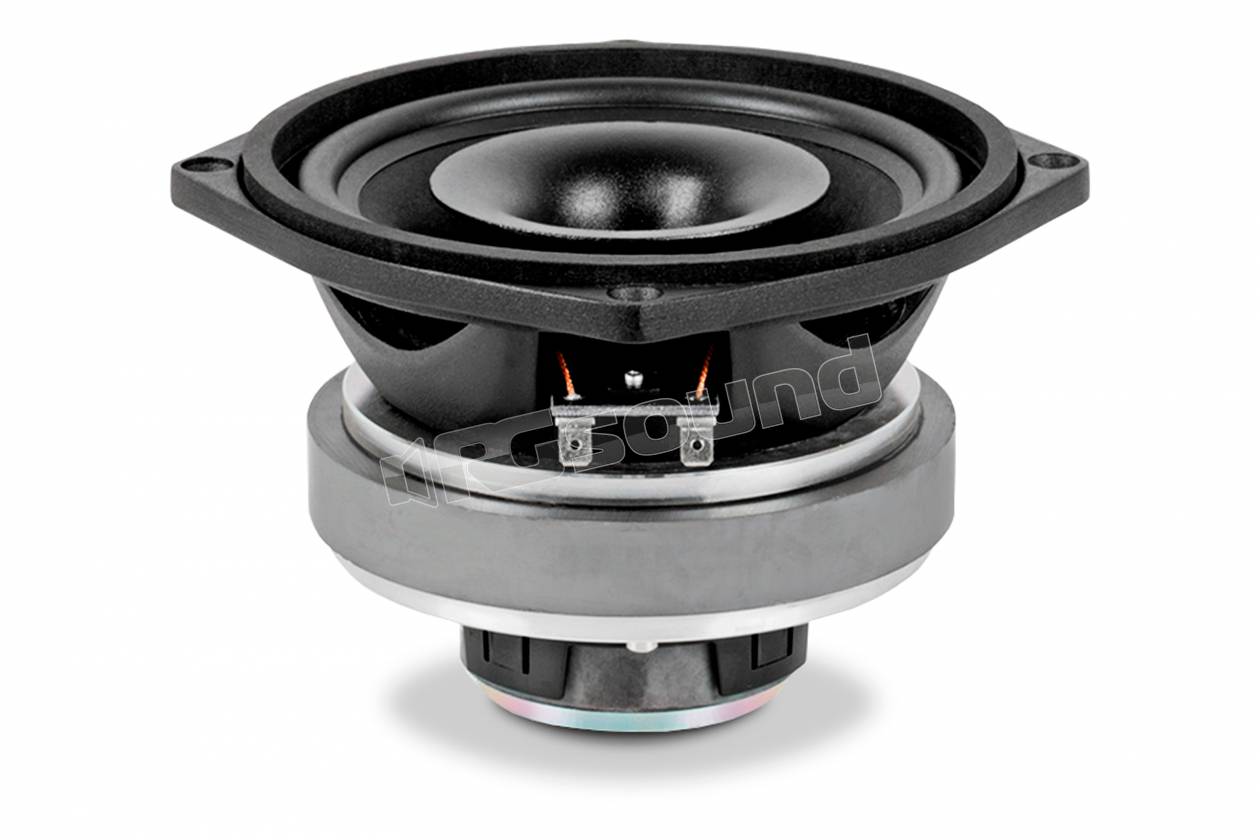

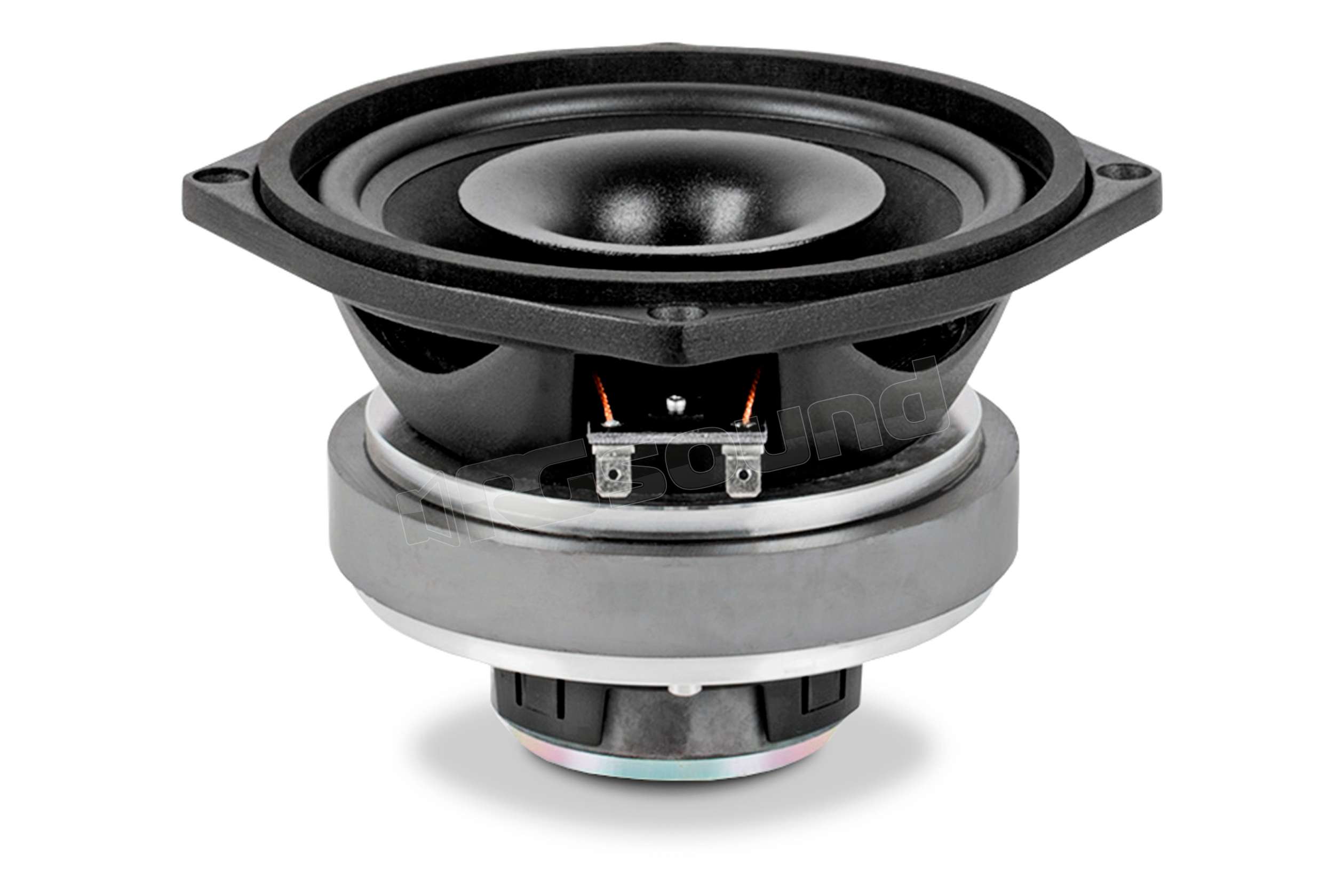

Beyma 6CX200FE
AGGIUNGI AL CARRELLO
il tuo prezzo: € 207,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Tipologia
Coassiale
Dimensione Altoparlante
165 mm
Potenza MAX
400 Watt
Potenza RMS
200 Watt
Risposta in frequenza
65 - 20000 Hertz
Sensibilità
94 dB
Impedenza
8 Ohm
Peso
3,6 Kg
Profondità di installazione
mm
Diametro bobina mobile
50,8 mm

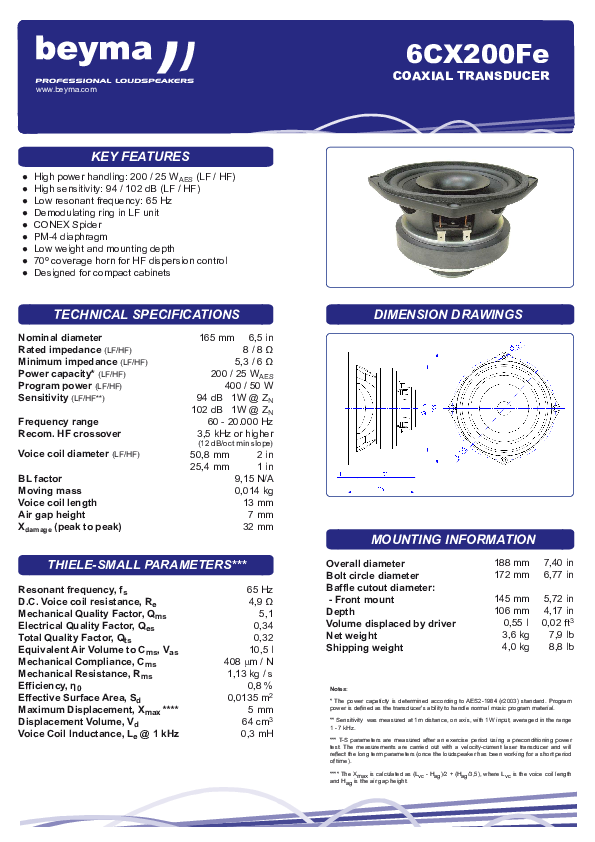

Beyma 6CX200FE specifiche tecniche
| Nominal diameter | 165 mm 6.5 in |
| Nominal impedance LF/HF | 8/8 ohm |
| Minimum impedance LF/HF | 6/5.9 ohm |
| Power capacity LF/HF | 200/25 W AES |
| Program power LF/HF | 400/50 W |
| Sensitivity LF/HF | 94/102 2.83 @ 1 m @ 2Π |
| Frequency range | 65-20000 Hz |
| Recom. crossover frequency | 3 kHz or higher (12 dB/oct. min slope) |
| Voice coil diameter LF/HF | 50.8/25.4 mm - 2/1 in |
| Dispersion (conical) | 70º |
| BL factor | 7.97 N/A |
| Moving mass | 0.01 kg |
| Winding length | 14 mm |
| Xdamage pp | 32 mm |
| LF Recone kit ref. | 5M6CX2ND8 |
| HF diaphragm ref. | 5MCP5CX8 |
THIELE SMALL PARAMETERS
| Fs | 65 Hz |
| Re | 4.8 ohm |
| Qms | 3.95 |
| Qes | 0.35 |
| Qts | 0.32 |
| Vas | 10.54 l |
| Cms | 476 µm / N |
| Rms | 1.17 kg/s |
| Efficiency % | 1.21 |
| Sd | 0.0135 m² |
| Xmax | 5 mm |
| Vd | 64 cm³ |
| Le @1 kHz | 0.2 mH |
CONSTRUCTIVE DETAILS
| Net weight | 3.6 kg 7.92 lb |
| Total weight | 4 kg / 8.81 lb |
| Magnet | Ferrite |
