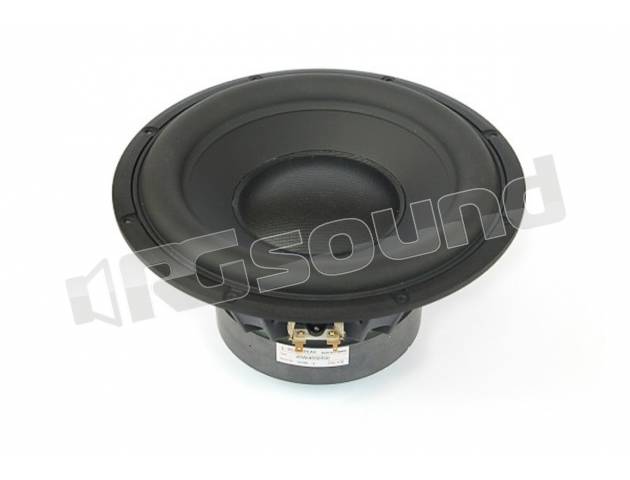

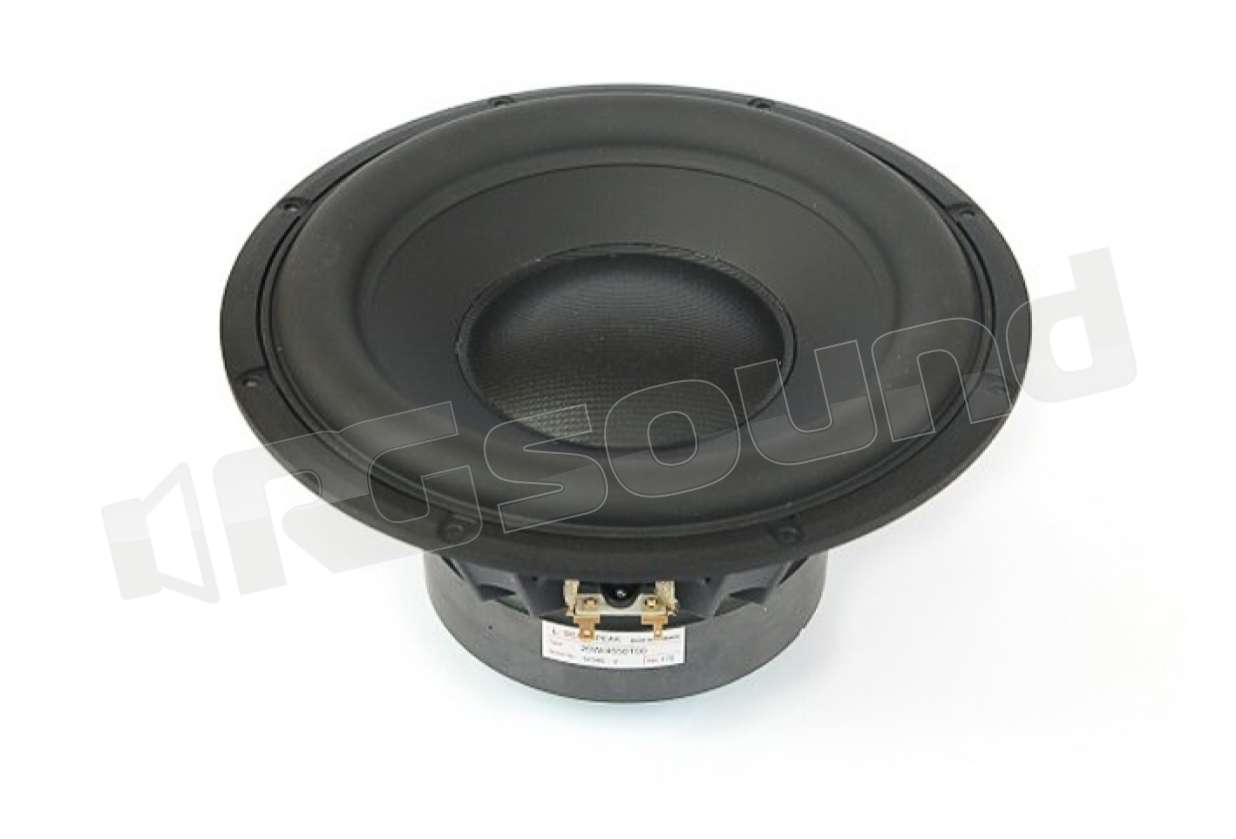

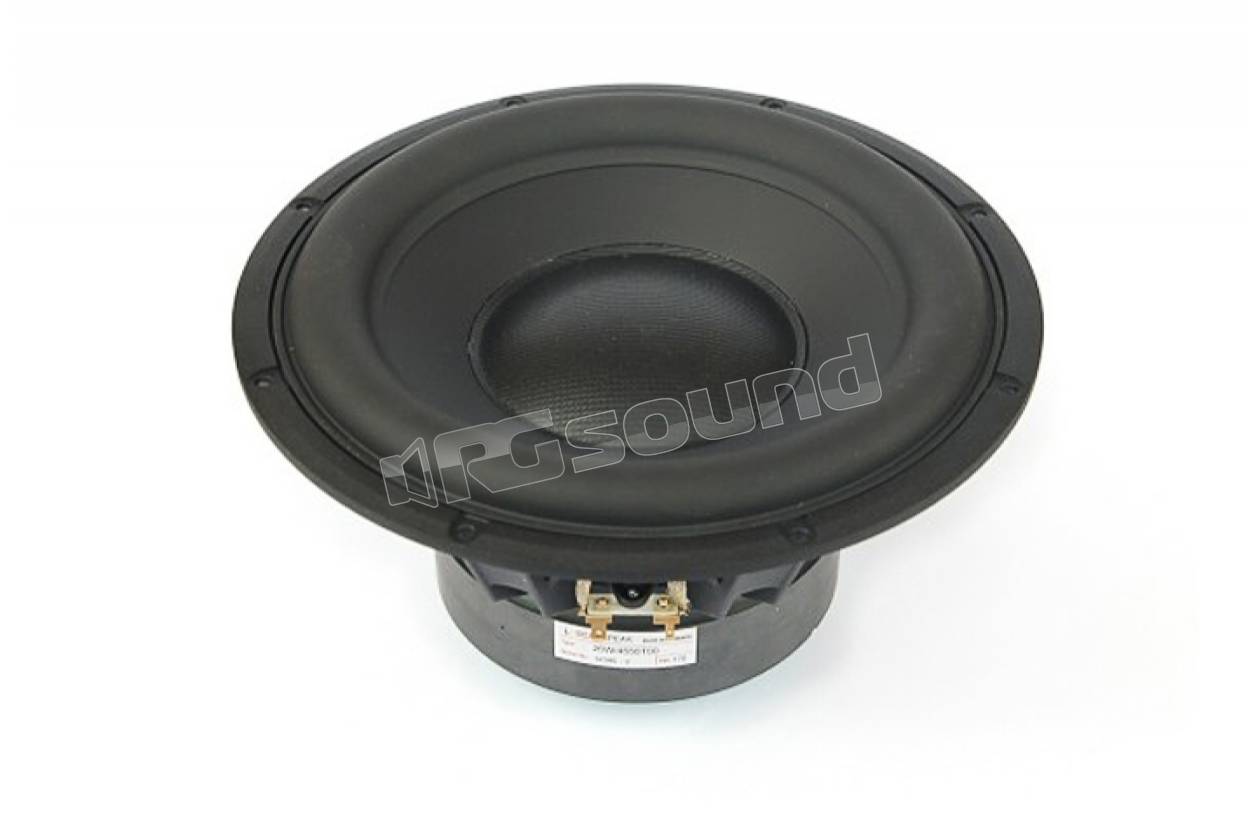

Scan Speak 26W/4558T00 sub 25cm Serie Discovery

Scan Speak 26w/4558t00 Serie Discovery subwoofer 250 mm (10"), potenza RMS 150W, potenza max 350W, impedenza 4 Ohm.

Caratteristiche generali 26w/4558t00

Cestello in alluminio anodizzato e cono in fibra di vetro
Escursione massima 56mm, escursione lineare 25mm
Bassa frequenza di risonanza 21Hz
Sensibilità 88dB @ 2,83V

Caratteristiche tecniche 26w/4558t00

100h RMS noise test (IEC 17.1) 150 W

Long-term max power (IEC 17.3) 350 W

Nominal impedance 4 Ω Zn

Minimum impedance 3.3 Ω Zmin

Maximum impedance 46.8 Ω Zo

DC resistance 2.6 Ω Re

Voice coil inductance 0.83 mH Le

Resonance frequency 21 Hz

Mechanical Q factor 5.56 Qms

Electrical Q factor 0.33 Qes

Total Q factor 0.31 Qts

Force factor 10.5 Tm Bl

Mechanical resistance 2.49 kg/s Rms

Moving mass 105 g Mms

Suspension compliance 0.55 mm/N Cms

Effective diaph. diameter 212 mm D

Effective piston area 352 cm² Sd

Equivalent volume 94.9 l Vas

Sensitivity (2.83V/1m) 88 dB

Ratio Bl/√Re 6.51 N/√W

Ratio fs/Qts 68 Hz

Voice coil diameter 51 mm

Voice coil height 33 mm

Voice coil layers 4

Height of gap 8 mm

Linear excursion ± 12.5 mm

Max mech. excursion ± 28 mm

Unit weight 6.2 kg

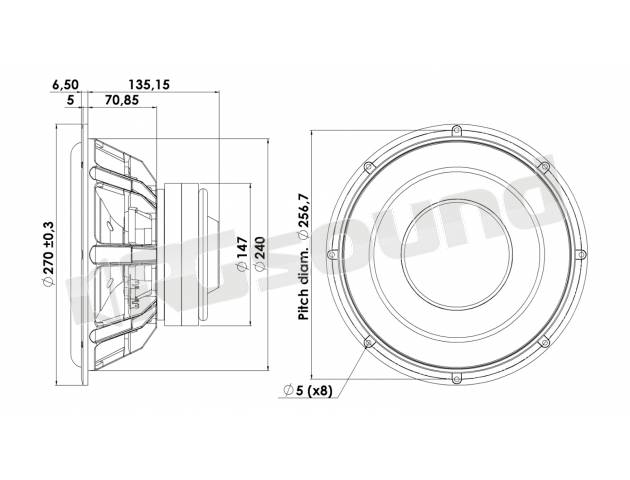

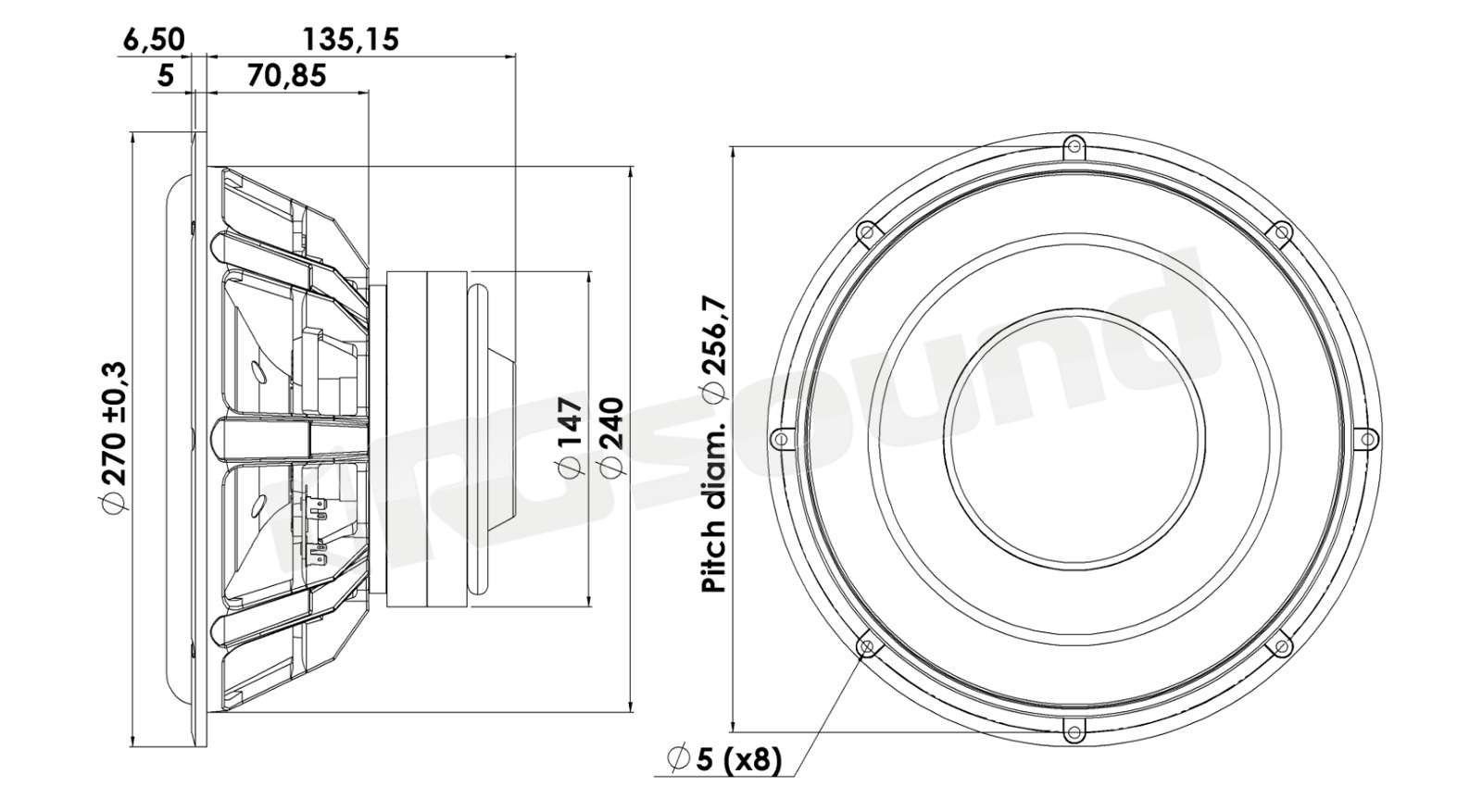

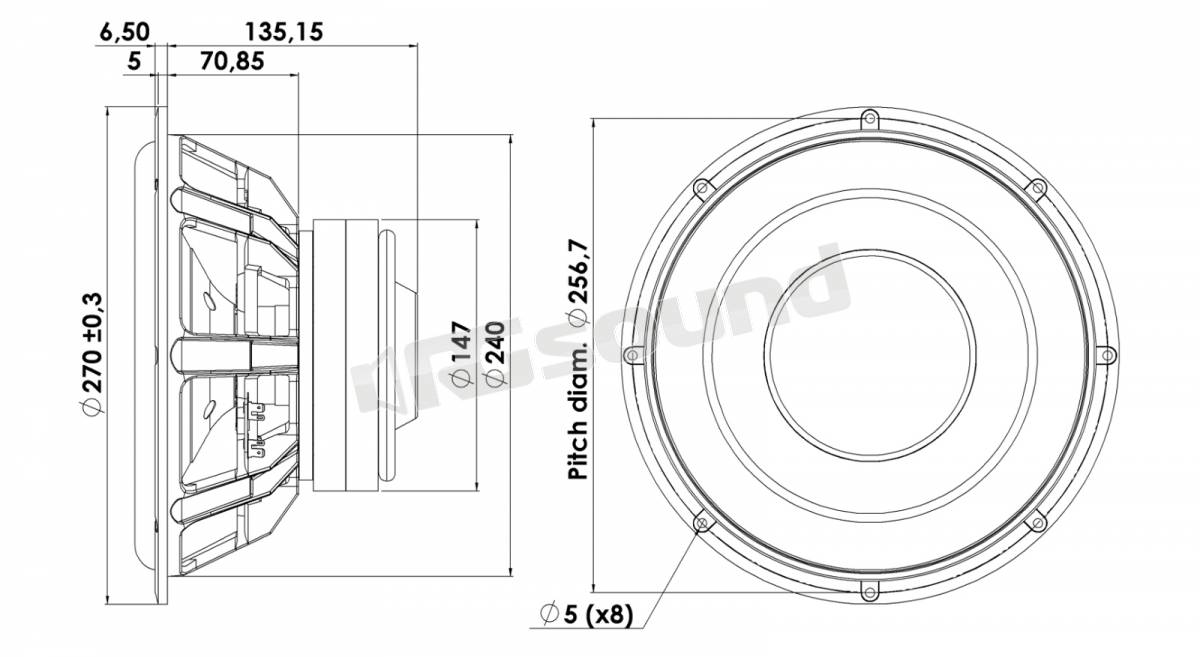

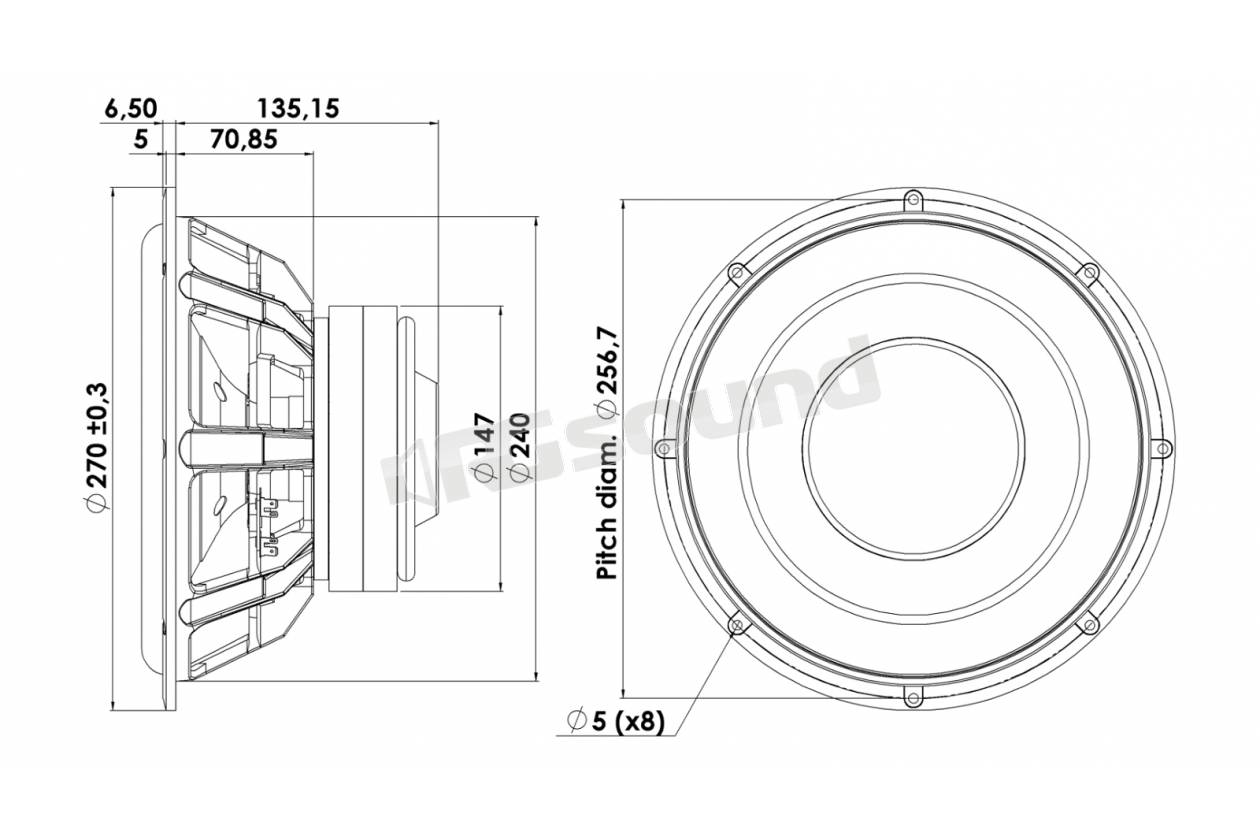

Dimensioni 26w/4558t00
