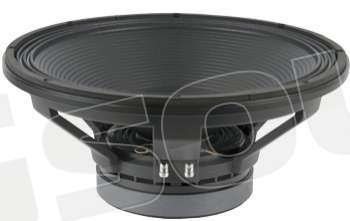

Beyma 18P1000Fe V2 Subwoofer 46 cm
il tuo prezzo: € 343,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Fai una domanda sul prodotto

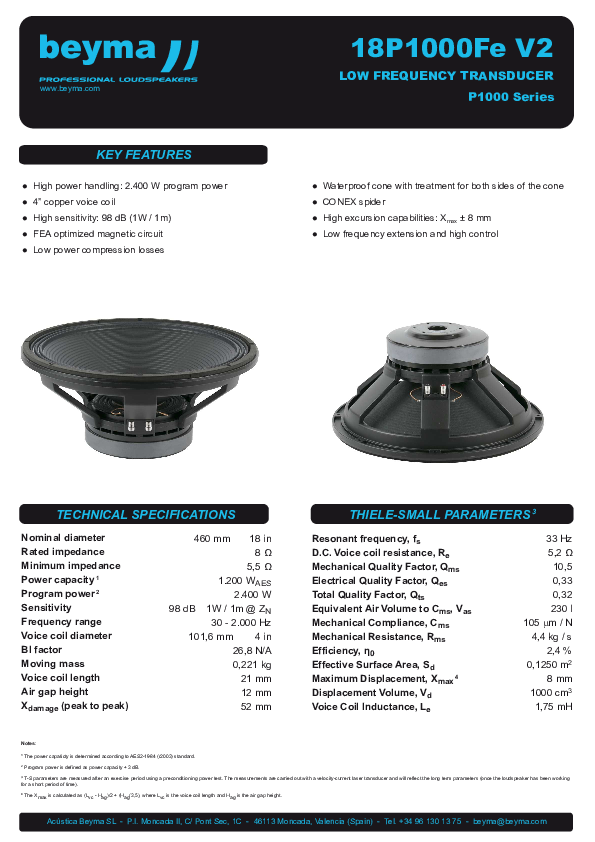

TECHNICAL SPECIFICATIONS
| Nominal diameter | 460 mm 18 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 5.5 ohm |
| Power capacity | 1200 W AES |
| Program power | 2400 W |
| Sensitivity | 98 dB 1 W @ 1 m @ ZN |
| Frequency range | 30-2000 Hz |
| Voice coil diameter | 100 mm 4 in |
| BL factor | 26.8 N/A |
| Moving mass | 0.221 Kg |
| Winding length | 21 mm |
| Air gap height | 12 mm |
| Xdamage pp | 52 mm |
THIELE SMALL PARAMETERS
| Fs | 33 Hz |
| Re | 5.2 ohm |
| Qms | 10.5 |
| Qes | 0.33 |
| Qts | 0.32 |
| Vas | 230 l |
| Cms | 105 µm / N |
| Rms | 4.4 kg/s |
| Efficiency % | 2.4 |
| Sd | 0.125 m² |
| Xmax | 8 mm |
| Vd | 1000 cm³ |
| Le @1 kHz | 1.75 mH |
CONSTRUCTIVE DETAILS
| Net weight | 13.8 kg 30.4 lb |
| Total weight | 15.3 kg 33.7 lb |
| Magnet | Ferrite |
