Beyma
il tuo prezzo: € 455,00
Prezzo riferito a singolo pezzo (IVA inclusa)

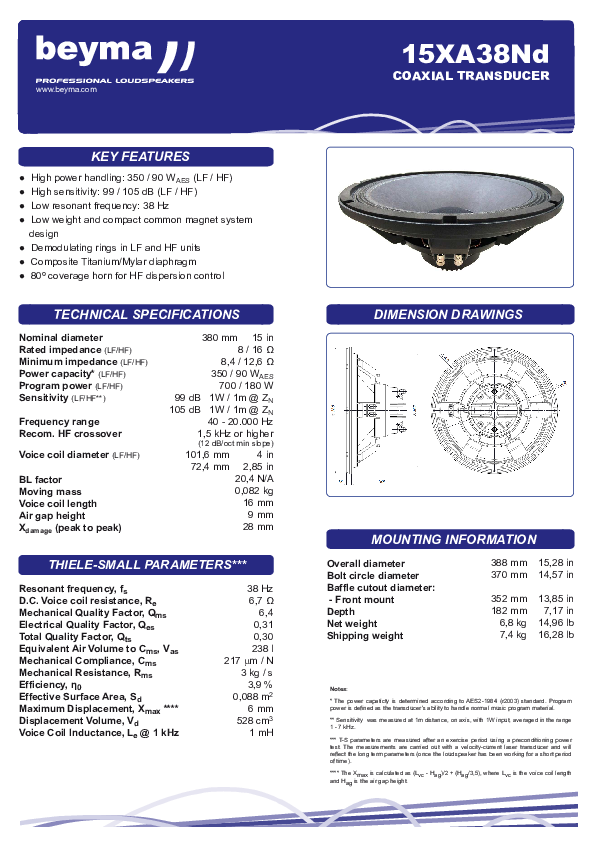

TECHNICAL SPECIFICATIONS

Nominal diameter   380 mm 15 in
Nominal impedance LF/HF   8/16 ohm
Minimum impedance LF/HF   8.4 / 12.6 ohm
Power capacity LF/HF   350/90 W AES
Program power LF/HF   700/180 w
Sensitivity LF/HF   99/105 2.83 @ 1 m @ 2Π
Frequency range   40-20000 Hz
Recom. crossover frequency   1.5 kHz or higher (12dB/oct min slope)
Voice coil diameter LF/HF   101.6/72.4 mm - 4/2.85 in
Dispersion (conical)   80º
BL factor   20.4 N/A
Moving mass   0.082 kg
Winding length   16 mm
Xdamage pp   28 mm
LF Recone kit ref.   5M15XA388
HF diaphragm ref.   5MCP756


THIELE SMALL PARAMETERS

Fs   38 Hz
Re   6.7 ohm
Qms   6.4
Qes   0.31
Qts   0.3
Vas   238 l
Cms   217 µm / N
Rms   3 kg / s
Efficiency %   3.9
Sd   0.088 m²
Xmax   6 mm
Vd   528 cm³
Le @1 kHz   1mH

CONSTRUCTIVE DETAILS

Net weight   6.8 kg 14.96 lb
Total weight   7.4 kg 16.28 lb
Magnet   Neodymium
