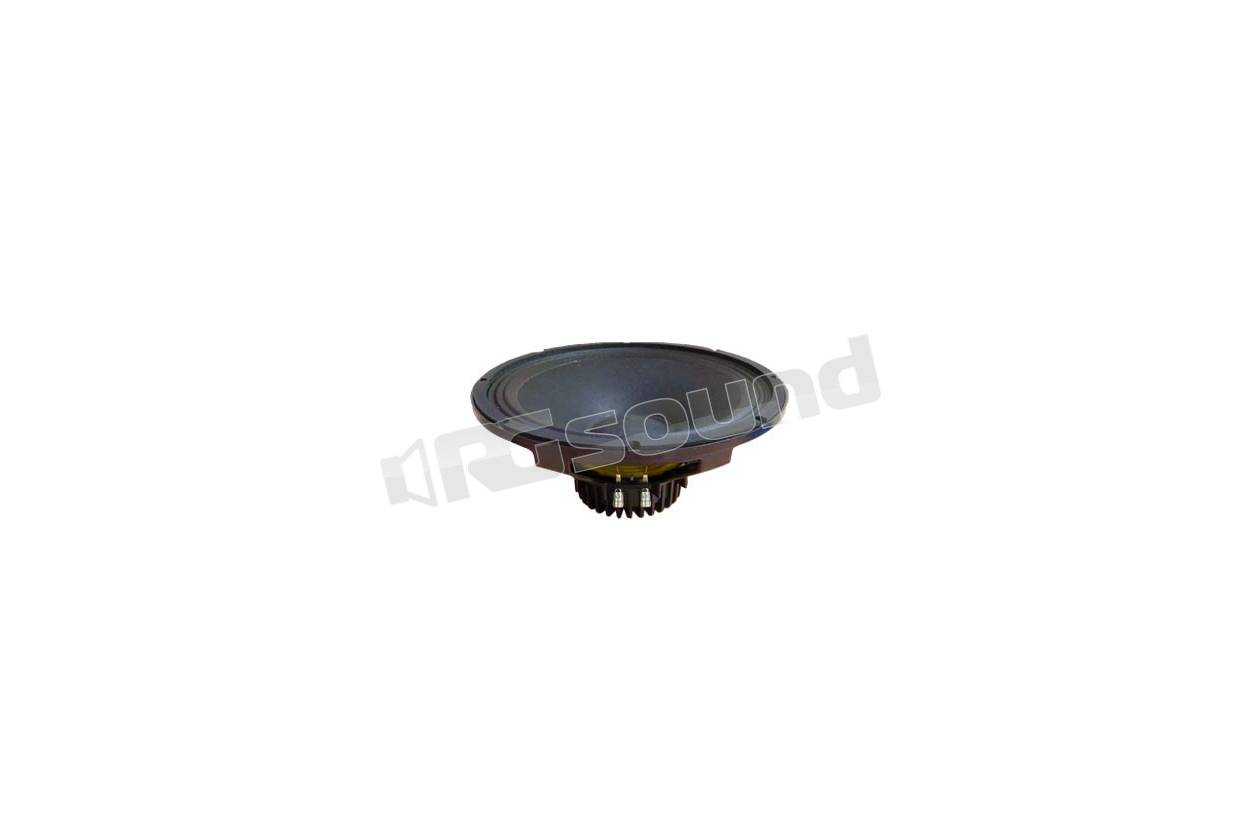

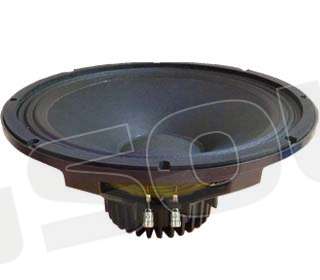

Beyma 15LW30 Subwoofer 38 cm
il tuo prezzo: € 239,30
Prezzo riferito a singolo pezzo (IVA inclusa)
Fai una domanda sul prodotto

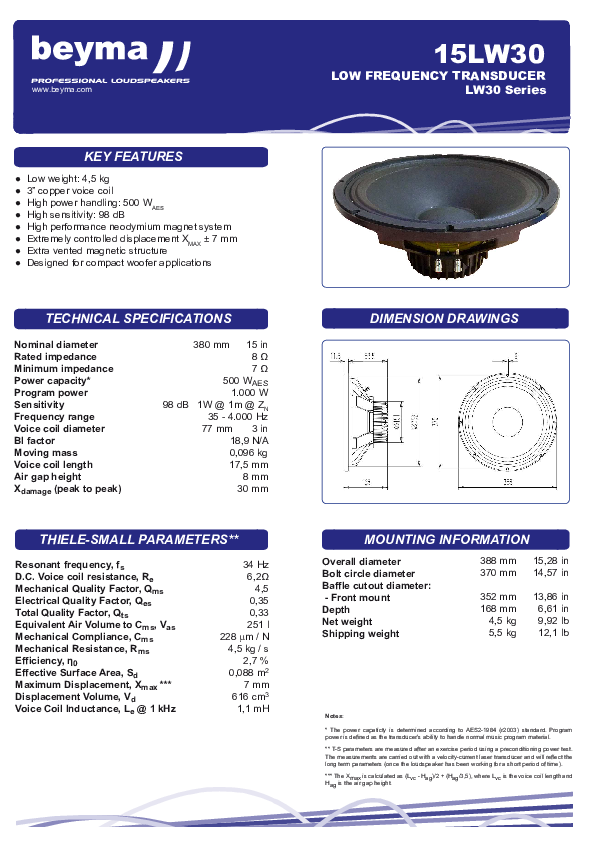

TECHNICAL SPECIFICATIONS
| Nominal diameter | 380 mm 15 in |
| Nominal impedance | 8 Ohm |
| Minimum impedance | 7 ohm |
| Power capacity | 500 W AES |
| Program power | 1000 W |
| Sensitivity | 98 dB 1 W @ 1 m @ ZN |
| Frequency range | 35-4000 Hz |
| Recommended enclosure volume | - |
| Voice coil diameter | 77 mm 3 in |
| BL factor | 18.9 N / A |
| Moving mass | 0.096 |
| Winding length | 17.5 mm |
| Air gap height | 8 mm |
| Xdamage pp | 30 mm |
THIELE SMALL PARAMETERS
| Fs | 34 Hz |
| Re | 6.2 ohm |
| Qms | 4.5 |
| Qes | 0.35 |
| Qts | 0.33 |
| Vas | 251 l |
| Cms | 228 µm / N |
| Rms | 4.5 kg / s |
| Efficiency % | 2.7 |
| Sd | 0.088 m² |
| Xmax | 7 mm |
| Vd | 616 cm³ |
| Le @1 kHz | 1.1 mH |
CONSTRUCTIVE DETAILS
| Net weight | 4.5 kg 9.9 lb |
| Total weight | 5.5 kg 12.1 lb |
| Magnet | Neodymium |
