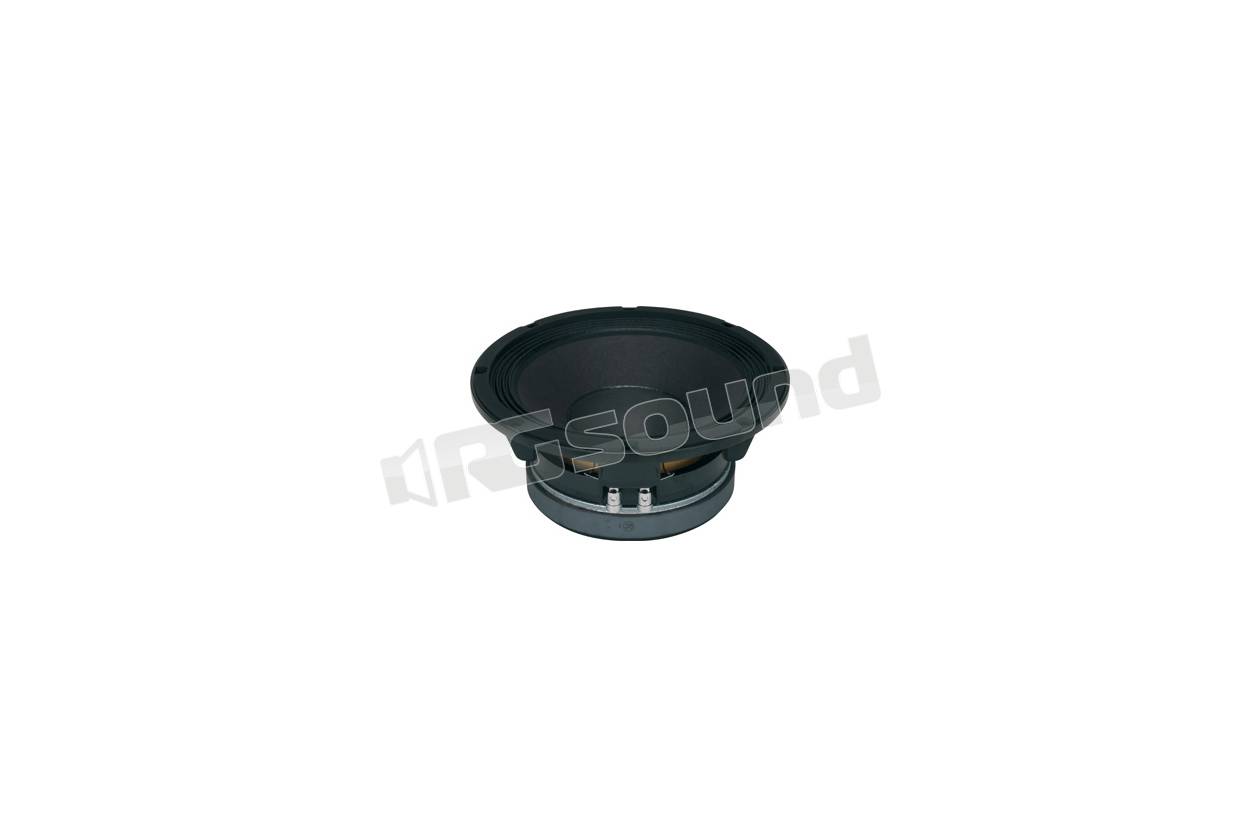

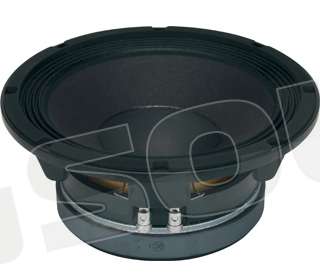

Beyma 10G40 Subwoofer 25 cm

Beyma
il tuo prezzo: € 180,10
Prezzo riferito a singolo pezzo (IVA inclusa)
Aggiungi al carrello   AGGIUNGI AL CARRELLO

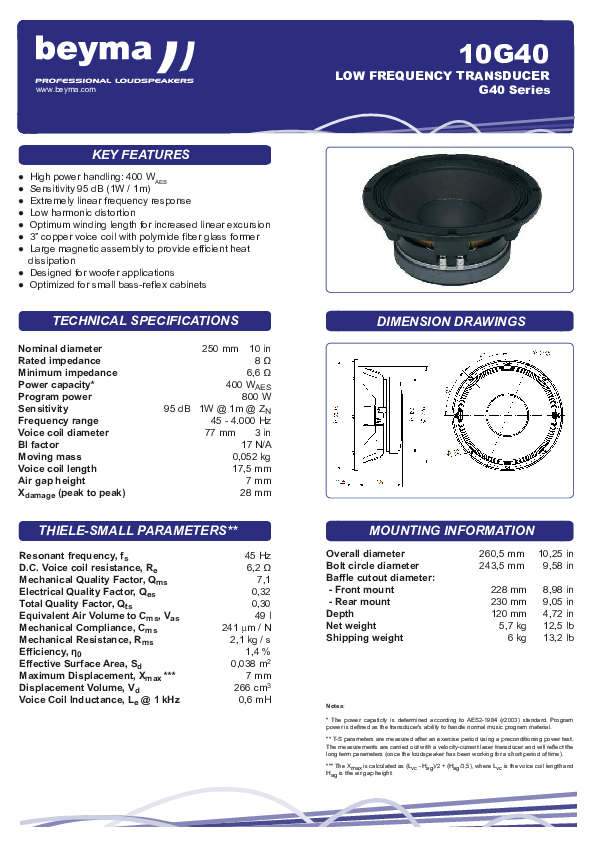

Beyma 10G40 caratteristiche tecniche



Nominal diameter   250 mm 10 in
Nominal impedance   8 Ohm
Minimum impedance   6.6 ohm @ 5.3 kHz
Power capacity   400 W AES
Program power   800 W
Sensitivity   95 dB 1 W @ 1m @ 2Π
Frequency range   45-4000 Hz
Recommended enclosure volume   20 / 70 l 0.7 / 2.6 ft.³
Voice coil diameter   77 mm 3 in
BL factor   17 N / A
Moving mass   0.052 kg
Winding length   17.5 mm
Air gap height   7 mm
Xdamage pp   28 mm


THIELE SMALL PARAMETERS

Fs   45 Hz
Re   6.2 ohm
Qms   7.1
Qes   0.32
Qts   0.3
Vas   49 l
Cms   241 µm / N
Rms   2.1 kg / s
Efficiency %   1.4
Sd   0.038 m²
Xmax   7 mm
Vd   266 cm³
Le @1 kHz   0.6 mH

CONSTRUCTIVE DETAILS

Net weight   5.7 kg 12.5 lb
Total weight   6 kg 13.2 lb
Magnet   Ferrite
