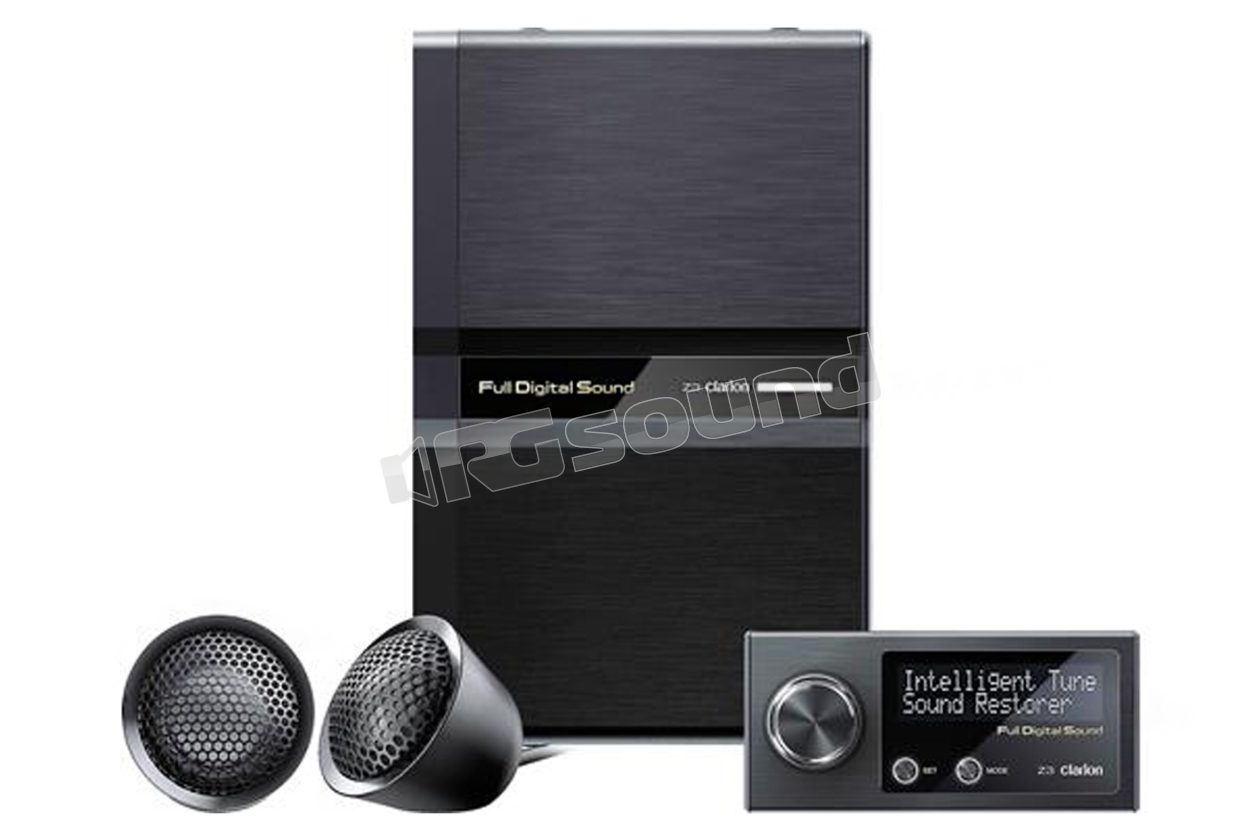

Z3 Full Digital Sound processor with controller and tweeters

Clarion
Your price:
€ 299,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

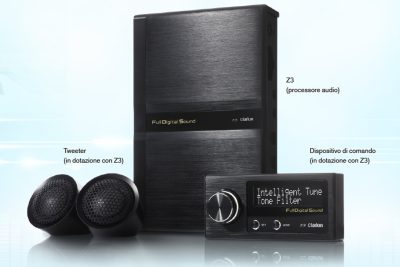

Clarion Z3 Full Digital Sound Processor with Control Device and Pair of Tweeters

Processor with robust and appealing design, minimal body texture and modern with thin finish. The matte black body is distinguished by a thin finish and gives the processor the modern look that characterizes the Clarion Full Digital Sound system. The compact chassis takes up minimal space and can be easily installed under the seat or in other confined spaces.

The Z3 (audio processor) is equipped with a USB port for connecting to a smartphone or tablet via USB cable to play high-resolution audio content stored on an iOS® and Android™ smartphone or tune it via a tablet. The compact chassis takes up minimal space and can be easily installed under the seat or in other confined spaces.

Note: Does not support audio playback from USB memory.

Clarion Full Digital Sound Innovation

Full Digital Sound technology is able to transfer the signal from the source to the speakers in a completely digital way, thus reproducing high-resolution files without degrading the audio. Furthermore, because it converts digital signals to audio extremely efficiently, the system is able to offer four times the power output of a traditional fully digital system, while achieving reduced power consumption that is only about 1/5 that of analog systems.

Audio Processor and Full Digital Sound Tweeter

  • New dedicated LSI for the automotive sector originally developed by Clarion (for tweeter drive device)
  • 96 kHz/24 bit digital signal processing
  • Tuning functions (crossover, time alignment, equalizer)
  • Intelligent Tune (Sound Restorer/Virtual Bass/Tone Filter/Reverb Control)
  • Input connectors: USB, digital input (optical), digital input (coaxial), RCA input, speaker level input
  • Output connectors: digital speaker output, RCA output
  • Pair of tweeters with clear and dynamic reproduction of the mid-high range and elegant curved design for reproduction of subtle tones.
  • Dual neodymium magnet with high response
  • By positioning the two neodymium magnets, one above and one below the tweeter plate, the superior level magnetic flux density of neodymium creates a high-density magnetic void to provide rapid response and stable activation.
  • Tweeter with pure soft silk dome for rich mid-high range
  • Clear reproduction of high tones up to 40 kHz and powerful vocal lines is possible thanks to this wide bandwidth tweeter. Paired with the Z7 at the front allows high-range reproduction of high-resolution audio sources. In addition to reproducing an extremely resonant high range, it offers a powerful presence mid-range, as well as natural vocal lines.
  • The tweeter can be mounted on the dashboard or installed flush in the door by modifying its trim.

Control Device Functions

Control device with intuitive interface for precise adjustment of delicate sounds. The large volume knob provides the feel of a high-performance home audio system and ensures superior ease of use, intuitive and linear volume control and other functions. The black body and thin finish contribute to creating a robust and quality structure. Furthermore, the contrast between the metallic texture of the volume knob and the body with thin finish creates an elegant appearance that will never tire you. Sound Restorer allows high-quality reproduction of compressed audio, while Reverb Control helps create a more natural surround audio experience. You can choose advanced acoustic technologies like these based on the music genre or media device in use. Turn the volume knob to change the menu display.

Dynamat
DYN10612 Dynamat Superlite Lightweight anti-vibration damping material for car soundproofing - 3 sheets 47 x 82 cm Dynamat
Dynamat DYN10612 Dynamat Superlite Lightweight anti-vibration damping material for car soundproofing - 3 sheets 47 x 82 cm
Price incl. VAT
€ 71,90
Dynamat
DYN10425 XTREME wedge pak pack with 1 sheet of 81.2 x 45.7 cm Dynamat
Dynamat DYN10425 XTREME wedge pak pack with 1 sheet of 81.2 x 45.7 cm
Price incl. VAT
€ 29,90
Dynamat
DYN10435 Xtreme DOOR KIT Damping and soundproofing material for doors Dynamat
Dynamat DYN10435 Xtreme DOOR KIT Damping and soundproofing material for doors
Price incl. VAT
€ 79,00
Dynamat
DYN10415 Xtreme Speaker KIT Anti-vibration damping for car speakers Dynamat
Dynamat DYN10415 Xtreme Speaker KIT Anti-vibration damping for car speakers
Price incl. VAT
€ 16,90

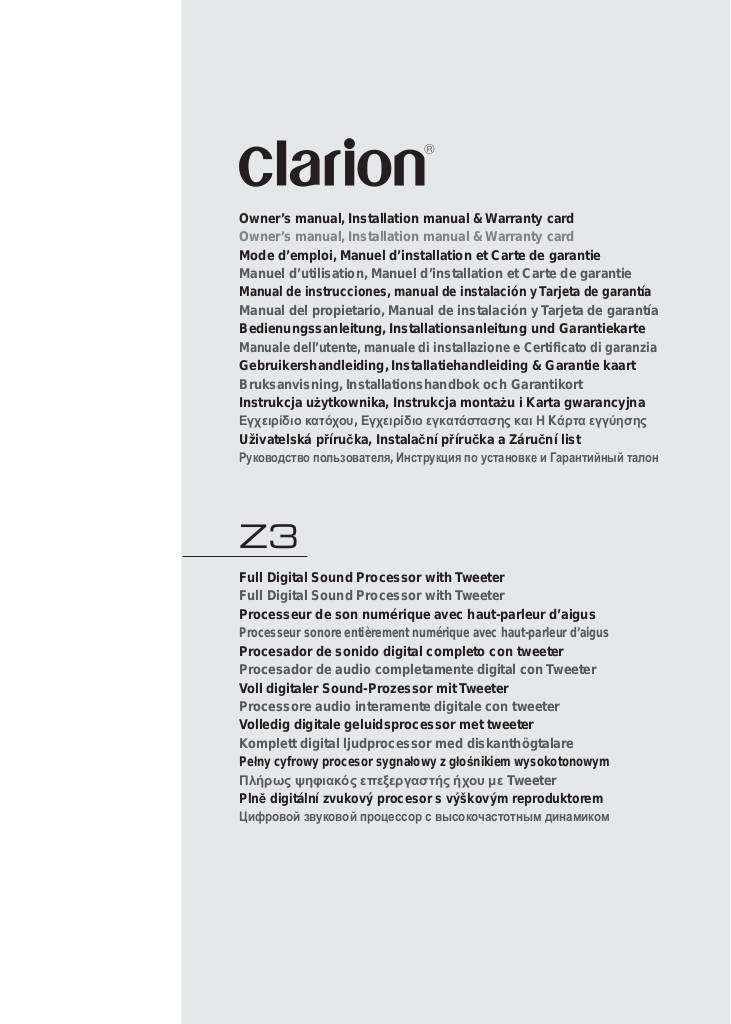

Manuale utente

n-20160715154730-z3-manual-it.pdf

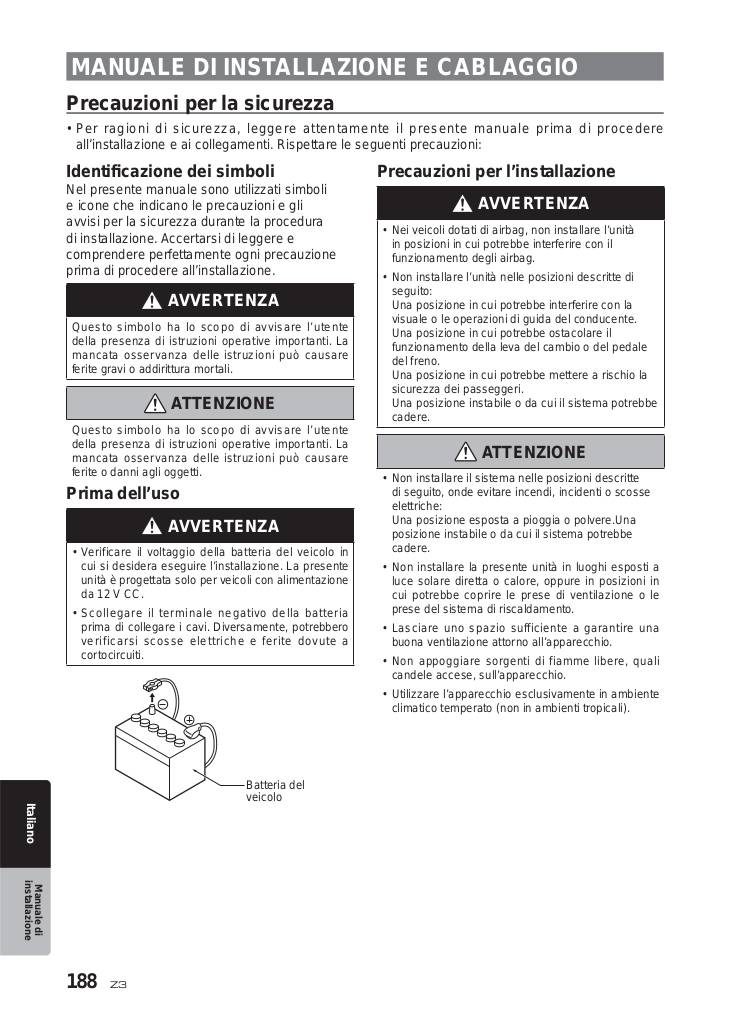

Scheda tecnica

n-20160715154730-z3-inst-it.pdf

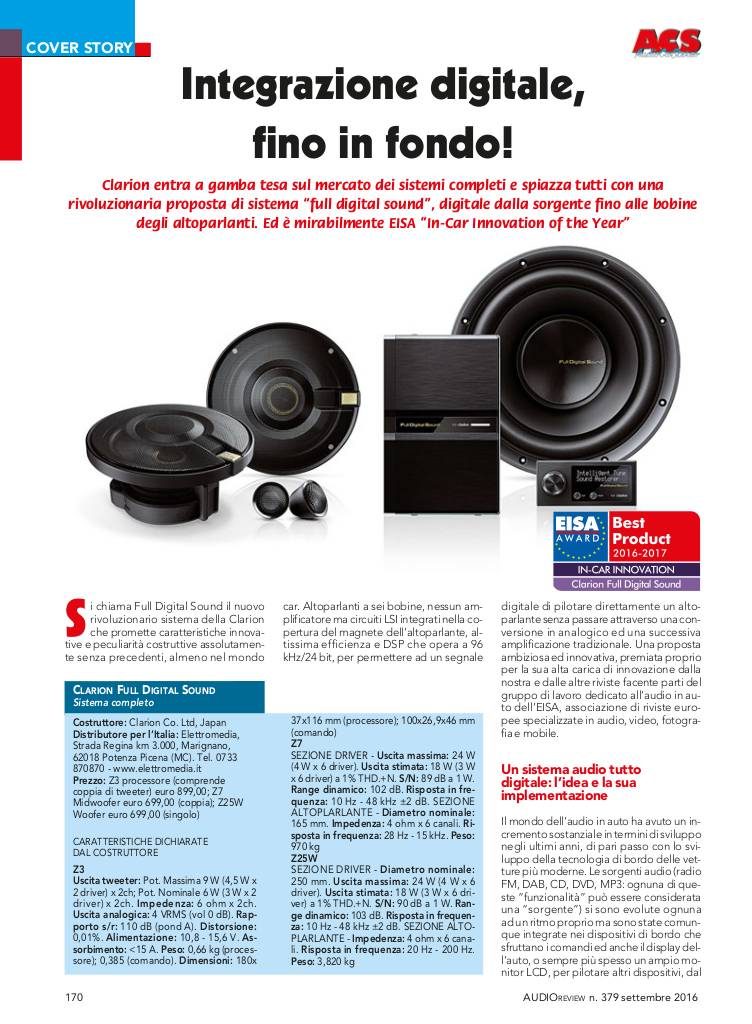

Recensione ACS

n-20160921163830-cover-story-ar379mac-5.pdf

Clarion Z3 Technical Specifications

Audio Processor

  • Analog output 4 Vrms (VOL 0db)
  • S/N 110 dB (A filter)
  • Harmonic distortion 0.01%
  • Analog input RCA input, speaker level input
  • Input sensitivity
  • Bass: RCA-in = 4 Vrms/power-in = 8 Vrms
  • Mids: RCA-in = 2 Vrms/power-in = 4 Vrms
  • Treble: RCA-in = 1 Vrms/power-in = 2 Vrms
  • Digital coaxial input 0.5 Vp-p/75Ω, Up to 96 kHz/24 Bit/PCM
  • Digital optical input Up to 96 kHz/24 Bit/PCM
  • Power supply 10.8 ~ 15.6 V DC, negative ground
  • Current consumption maximum 15 A
  • Weight 660g
  • Dimensions 180 (W) × 37 (H) × 116 (D) mm
  • Control Device (included with Z3)
  • Weight 385g
  • Dimensions 100 (W) × 27 (H) × 46 (D) mm

Tweeter (included with Z3)

  • Maximum output 9 W (4.5 W × 2 Driver) × 2 channels
  • Estimated output 6 W (3 W × 2 Driver) × 2 channels at 1% THD+N
  • Impedance 6 Ω × 2 channels
  • Frequency response 1.5 kHz – 40 kHz
  • Weight (one speaker) 77g
  • Dimensions 40 (W) × 40 (H) × 21.5 (D) mm

List of control device operating commands (included with Z3)

  • Main VOL (Main VOL) –99 dB – 0 dB– 1 dB step–
  • SW VOL (SW VOL) –10 dB – +10 dB– 0.5 dB step–
  • Memory select (Memory Selection) Custom memory 1 (Custom Memory 1)/Custom memory 2 (Custom Memory 2)/ Custom memory 3 (Custom Memory 3)/Custom memory 4 (Custom Memory 4)–4 routes–
  • Intelligent Tune
  • Sound Restorer OFF/Low (Low)/Mid (Mid)/High (High)
  • Virtual Bass OFF/Low (Low)/Mid (Mid)/High (High)
  • Tone Filter (Tone Filter) Vivid (Vivid) +2 / Vivid (Vivid) +1/OFF/Vintage +1/Vintage +2
  • Reverb Control (Reverb Control) OFF/Low (Low)/Mid (Mid)/High (High)
  • Balance (Balance) Left (Left) 12 – Center (Center) – Right (Right) 12
  • Fader (Fader) Rear (Rear) 12 ~ Centre (Center) ~ Front (Front) 12
  • Source (Input setting) (Source (Input Setting)) Digital optical (Digital Optical)/Digital coaxial (Digital Coaxial)/Analogue (Analogue)/USB
  • Audio sense (Audio Sensitivity) Low (Low), Mid (Mid)/High (High)
  • Brightness (Brightness) OFF/Level (Level) 1 ~ 10
  • Beep (Beep) ON/OFF

Main included components

  • Audio Processor
  • Control Device (2.46 m)
  • Tweeter Kit
  • Power cable (2.5 m) * Ground cable (2 m)
  • Speaker input cable (2 m)
  • USB A cable (0.5 m)
  • USB B cable (0.15 m)

Tweeter Kit

  • Tweeter × 2
  • Installation adapter × 2
  • Spacer for flush mounting × 2
  • Lever arm × 2
  • Z3 output cable (0.3 m)
  • Extension (3 m) × 2
€ 299,00 Price incl. VAT
