Z25W Fully digital active subwoofer

Clarion
Your price:
€ 490,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

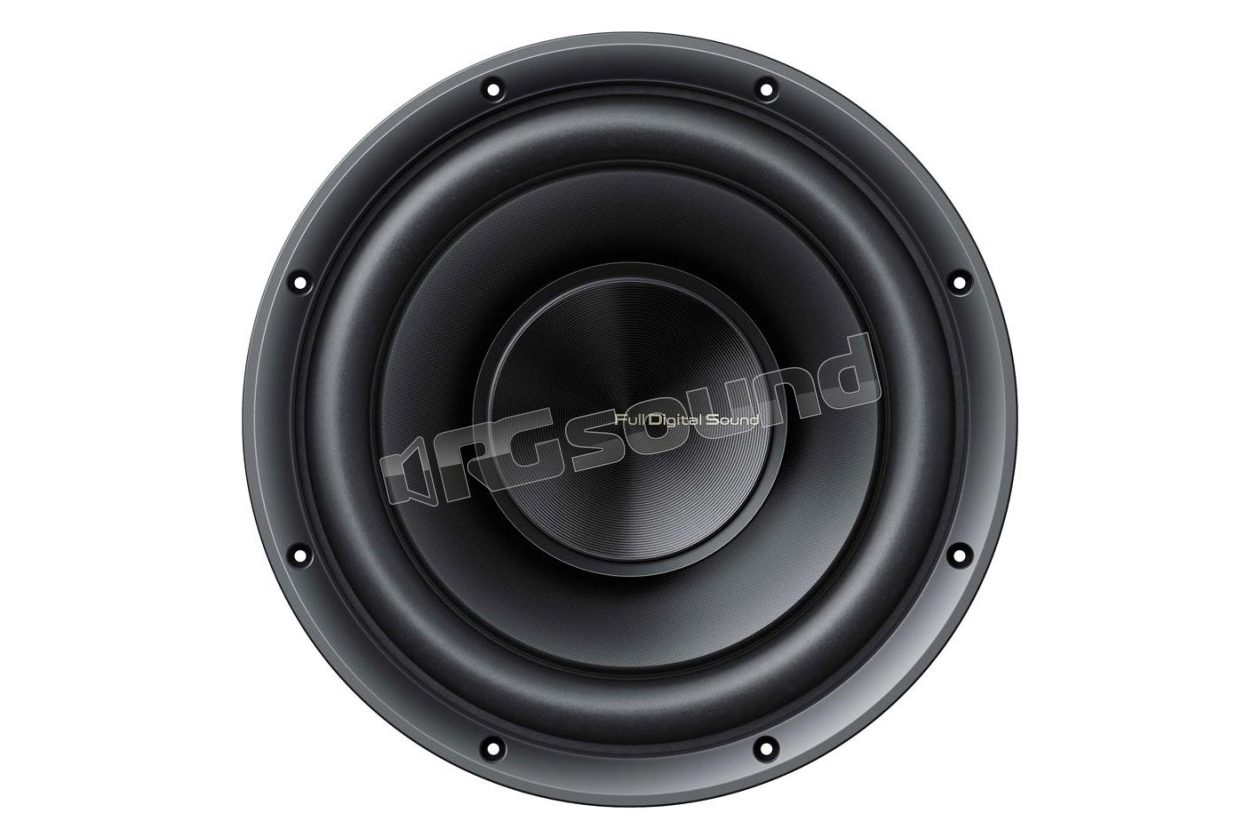

Clarion Z25W Fully Digital Active Subwoofer

Fully digital active subwoofer from the Clarion Full Digital Sound line. The black finish accentuates the champagne gold inserts and gives the sub an elegant and modern look.

Clarion Full Digital Sound Innovation

Full Digital Sound technology is able to transfer the signal from the source to the speakers in a completely digital way, thus reproducing high resolution files without degrading the audio. Furthermore, because it converts digital signals to audio extremely efficiently, the system is able to offer four times the power output of a traditional fully digital system, while at the same time achieving reduced power consumption that is just about 1/5 of that of analog systems.

Clarion Z25W Full Digital Sound Sub Features

Center dust cap screwed in to deliver a genuine feel. The matte black finish reflects the deep bass tones coming out of the subwoofer. In the center cap is integrated a metal ring that contributes to clear and precise reproduction of the low frequency range. Optimal weight balancing ensures uniform bass tone performance.

The dedicated LSI for the automotive sector originally developed by Clarion is integrated in the control circuit, itself integrated into a low-profile design that houses the woofer magnetic circuit within the frame. Therefore, while being extremely powerful, it maintains compact dimensions without taking up useful space in the car.

The GAC-composite cone delivers powerful audio by leveraging the characteristics of each fiber. Clarion developed the new GAC-composite cone by combining GAC fibers (fiberglass, aramid, carbon) with a light and rigid pulp material. By leveraging the various characteristics of each type of fiber, the new partially heat-molded cone supports high rigidity and optimal internal loss to be able to reproduce powerful and precise bass tones.

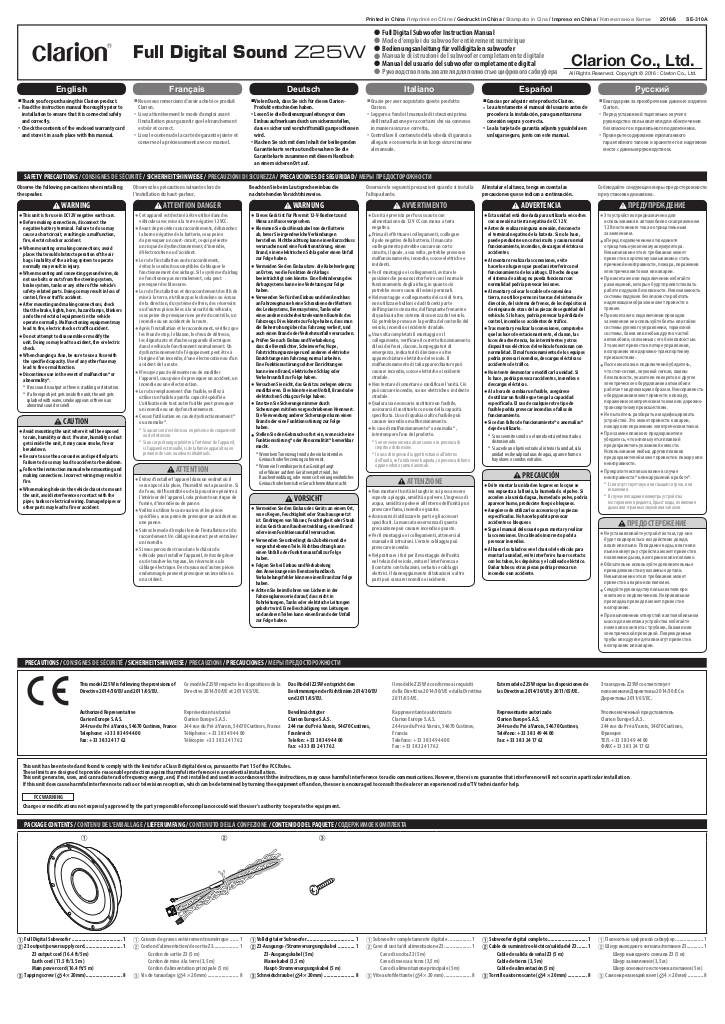

Manuale utente

n-20160715164146-z25w-inst-2.pdf

Clarion Z25W Technical Specifications

  • Maximum output: 24W (4W × 6 Driver)
  • Estimated output: 18W (3W × 6 Driver) at 1% THD+N
  • S/N 90 dB at 1W
  • Dynamic range 103 dB
  • Frequency response 10 Hz 48 kHz ± 2 dB
  • Impedance 4 Ω × 6 channels
  • Frequency response 20 Hz 200 Hz
  • Fs 38 Hz
  • Vas 50.3 liters
  • Mms 74.4 g
  • Qes 0.74
  • Qms 4.75
  • Qtà 0.64
  • Xmax. Lin. 11.4 mm
  • Weight 3,820 g
  • Dimensions 296 (L) × 296 (H) × 98.5 (D) mm
  • Recommended box volume
  • Sealed box: 25 liters ? 45 liters
  • Ported box: 85 liters ? 95 liters
  • Main components included
  • Fully digital subwoofer
  • Power/output cable Z3*
  • Output cable Z3 (5 m)
  • Main power cable (5 m)
  • Ground cable (3.5 m)
€ 490,00 Price incl. VAT
