WXF15.800 15"/380mm Woofer

LaVoce
Your price:
€ 216,40
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
1600 Watt
RMS Power
800 Watt
Frequency Response
40-2000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm

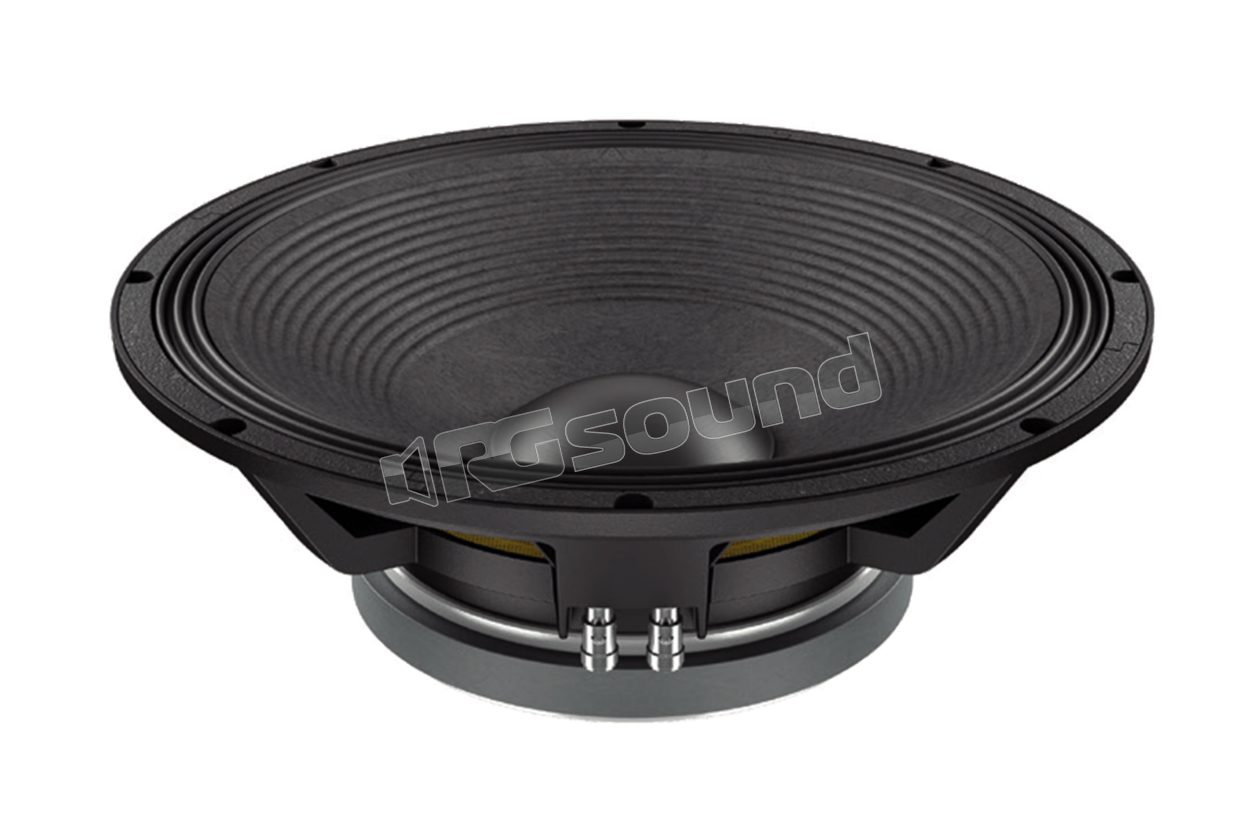

LaVoce WXF15.800 15"/380mm Woofer

LaVoce code 70R99151

WXF15.800 Features

  • 4 inch edgewound CCA voice coil
  • Sensitivity 98 db/spl
  • Program power handling 1600 watt
  • Optimized motor and suspensions
  • Optimized cooling system
  • Aluminum demodulating ring
  • Resonance-free and resistant basket design
  • Triple roll surround

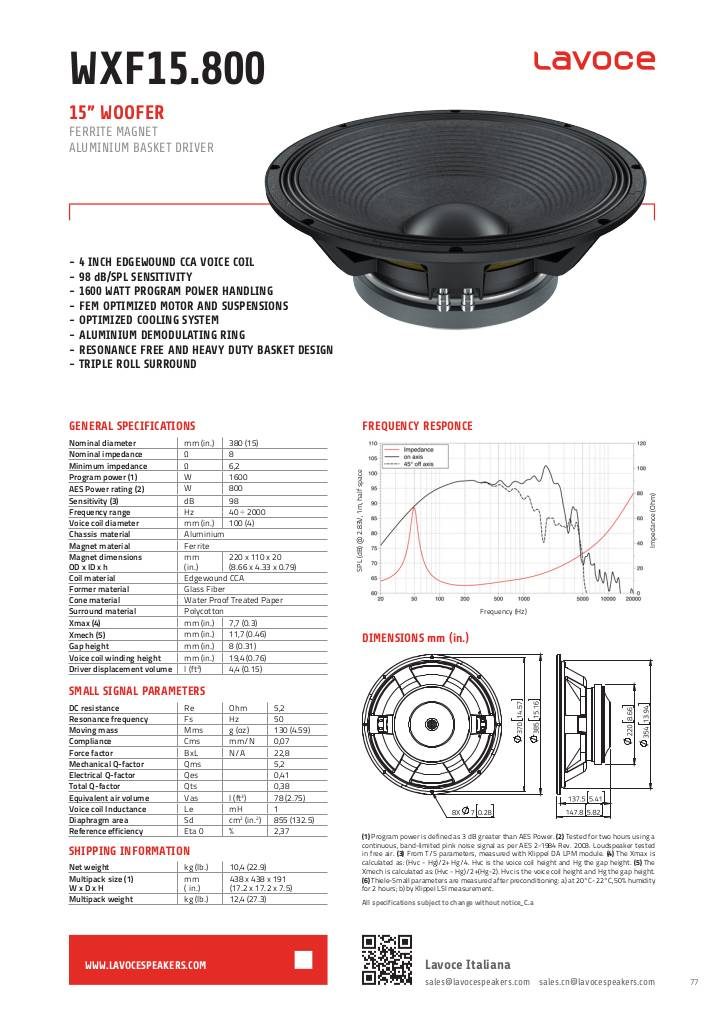

scheda tecnica

1549117159-wxf15800-1.pdf

LaVoce WXF15.800 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.2
  • Program power W 1600
  • AES power W 800
  • Sensitivity dB 98
  • Frequency range Hz 40 ÷ 2000
  • Voice coil diameter mm (in) 100 (4)
  • Frame material Aluminum
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 220 x 110 x 20 (8.66 x 4.33 x 0.79)
  • Coil material CCA wound on itself
  • Structure material Fiberglass
  • Cone material Treated waterproof paper
  • Surround material Polycotton
  • Xmax mm (in) 7.7 (0.3)
  • Xmech mm (in) 11.7 (0.46)
  • Air gap height mm (in) 8 (0.31)
  • Voice coil winding height mm (in) 19.4 (0.76)
  • Driver displacement volume l (ft³) 4.4 (0.15)
  • DC resistance Ohm 5.2
  • Resonance frequency Hz 50
  • Moving mass g (oz) 130 (4.59)
  • Compliance mm/N 0.07
  • Force factor N/A 22.8
  • Mechanical Q factor 5.2
  • Electrical Q factor 0.41
  • Total Q factor 0.38
  • Equivalent air volume l (ft3) 78 (2.75)
  • Voice coil inductance mH 1
  • Diaphragm area cm2 (in.2) 855 (132.5)
  • Reference efficiency 2.37%
  • Net weight kg (lb) 10.4 (22.9)
  • Multipack dimensions L x P x H 438 x 438 x 191 (17.2 x 17.2 x 7.5)
  • Multipack weight kg (lb) 12.4 (27.3)
