WSN152.50 15"/380mm Woofer

LaVoce
Your price:
€ 137,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
45 - 3000 Hertz
Sensitivity
97,5 dB
Impedance
8 Ohm
Weight
2,6 Kg
Voice Coil Diameter
65 mm

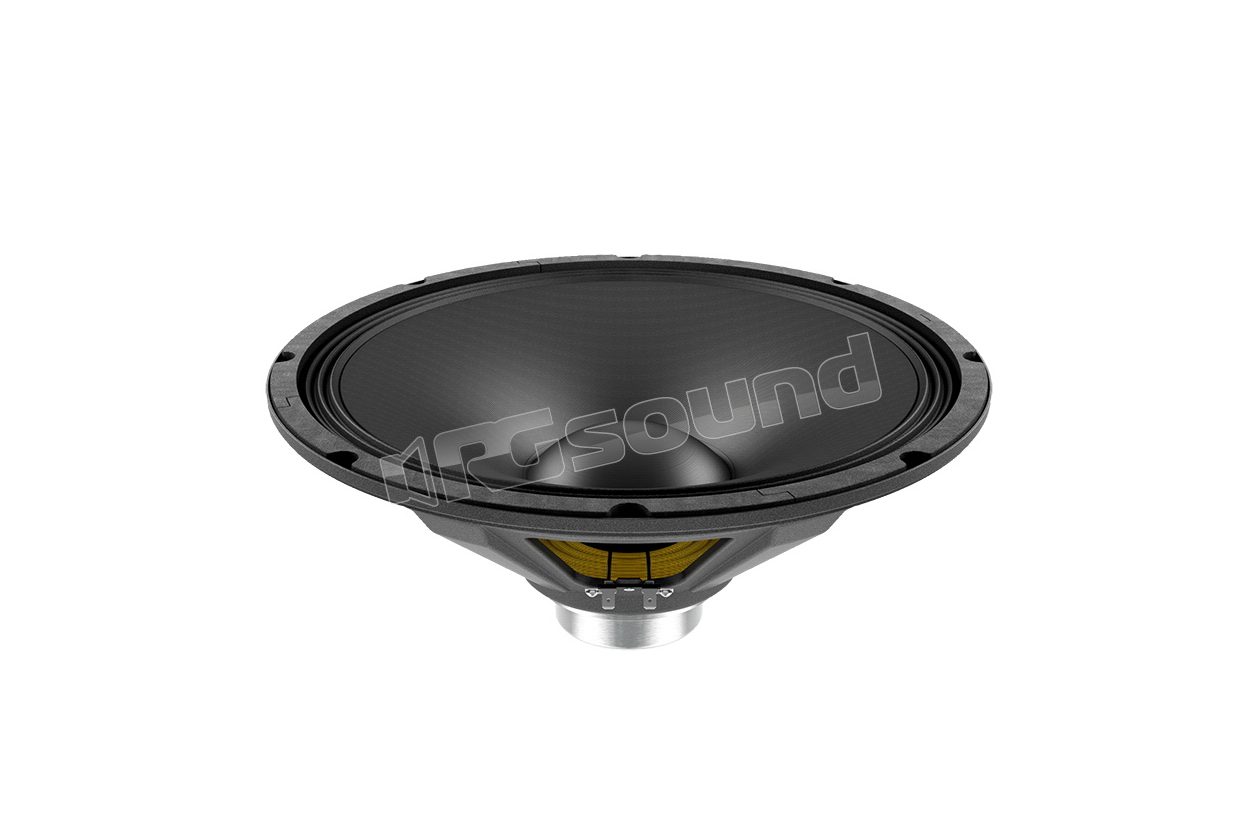

LaVoce WSN152.50 15"/380mm Woofer

Main features of the WSN152.50 speaker

  • 2.5 inch copper voice coil
  • Sensitivity 97.5 db/spl
  • Program power handling of 500 watts
  • Motor and suspensions optimized for FEM
  • Resonance-free and resistant basket design
  • Triple rolled surround

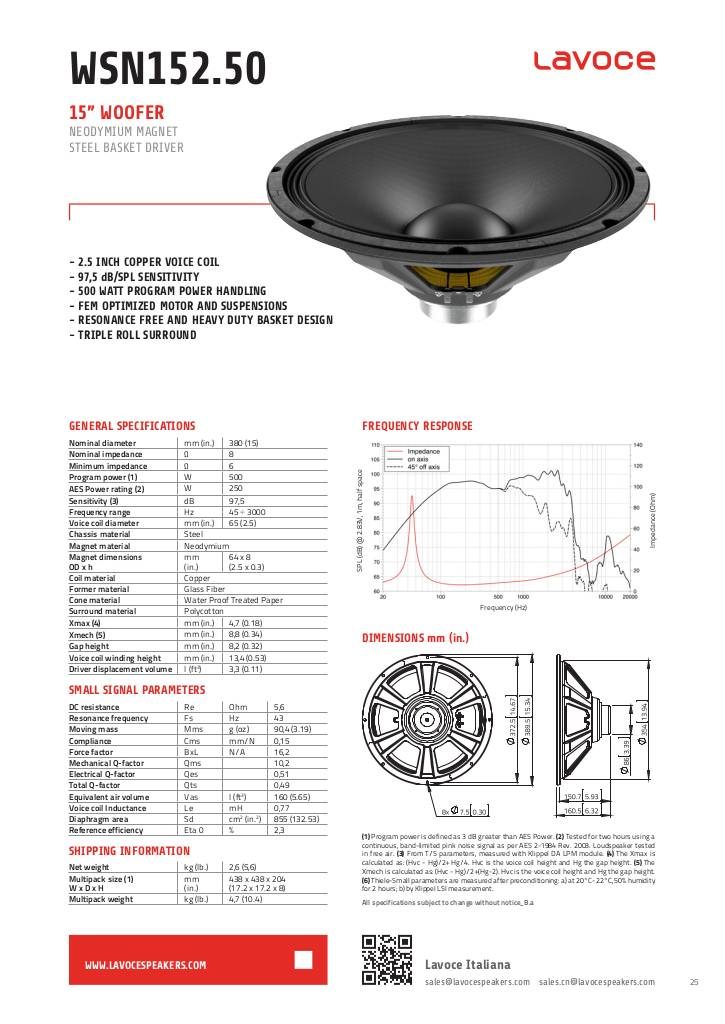

scheda tecnica

1549117408-wsn15250-1.pdf

LaVoce WSN152.50 Technical specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6
  • Program power W 500
  • AES power W 250
  • Sensitivity dB 97.5
  • Frequency range Hz 45 ÷ 3000
  • Voice coil diameter mm (in) 65 (2.5)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 64 x 8 (2.5 x 0.3)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.7 (0.18)
  • Xmech mm (in) 8.8 (0.34)
  • Gap height mm (in) 8.2 (0.32)
  • Voice coil winding height mm (in) 13.4 (0.53)
  • Driver displacement volume l (ft³) 3.3 (0.11)
  • DC resistance Ohm 5.6
  • Resonance frequency Hz 43
  • Moving mass g (oz) 90.4 (3.19)
  • Compliance mm/N 0.15
  • Force factor N/A 16.2
  • Mechanical Q factor 10.2
  • Electrical Q factor 0.51
  • Total Q factor 0.49
  • Equivalent air volume l (ft3) 160 (5.65)
  • Voice coil inductance mH 0.77
  • Diaphragm area cm2 (in.2) 855 (132.53)
  • Reference efficiency 2.3
  • Net weight kg (lb) 2.6 (5.6)
  • Multipack dimensions L x W x H 438 x 438 x 204 (17.2 x 17.2 x 8)
  • Multipack weight kg (lb) 4.7 (10.4)
€ 137,10 Price incl. VAT
