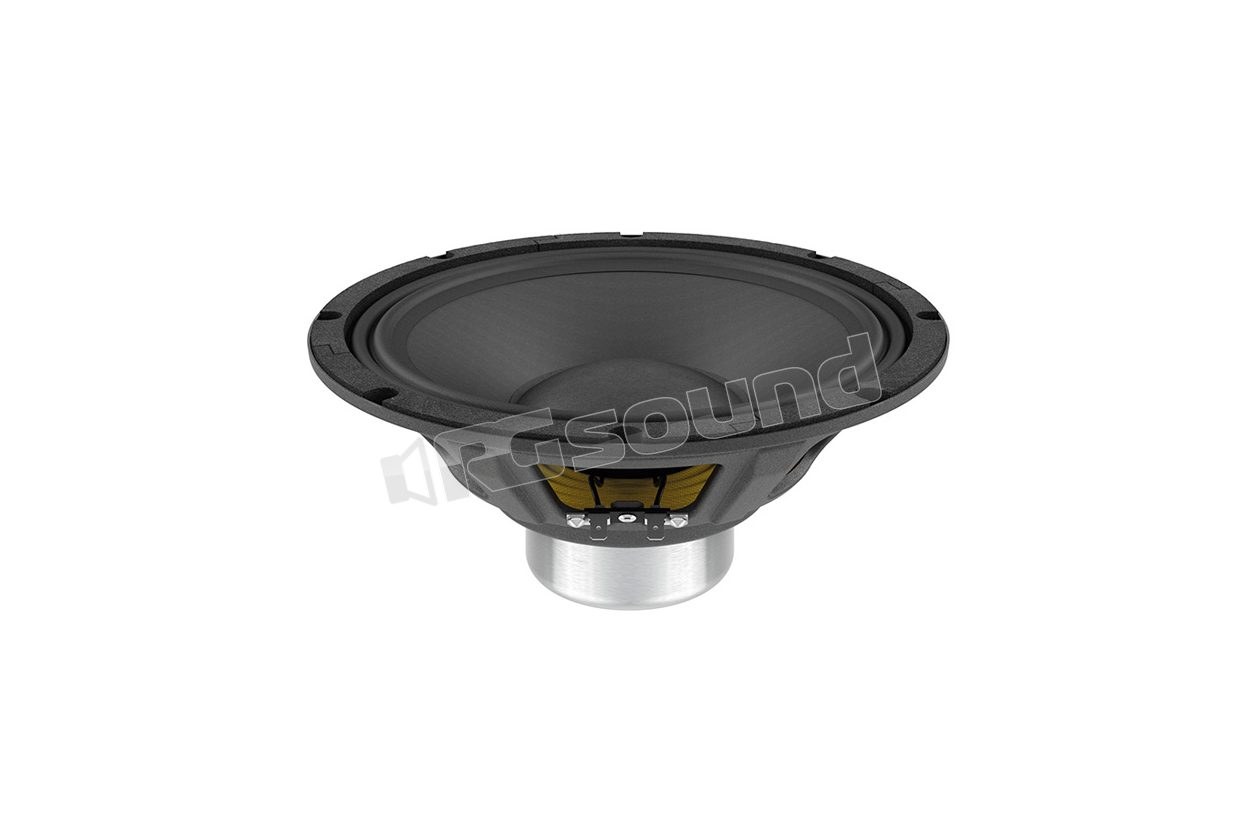

WSN102.50 10"/250mm Woofer

LaVoce
Your price:
€ 130,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
75 - 3000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
2,8 Kg
Voice Coil Diameter
65 mm

LaVoce WSN102.50 10"/250mm Woofer

Main features of the WSN102.50 speaker

  • 2.5 inch CCAW voice coil
  • Sensitivity 96 db/spl
  • 600 watts program power handling
  • FEM optimized motor and suspension
  • Optimized cooling system
  • Resonance-free and durable basket design

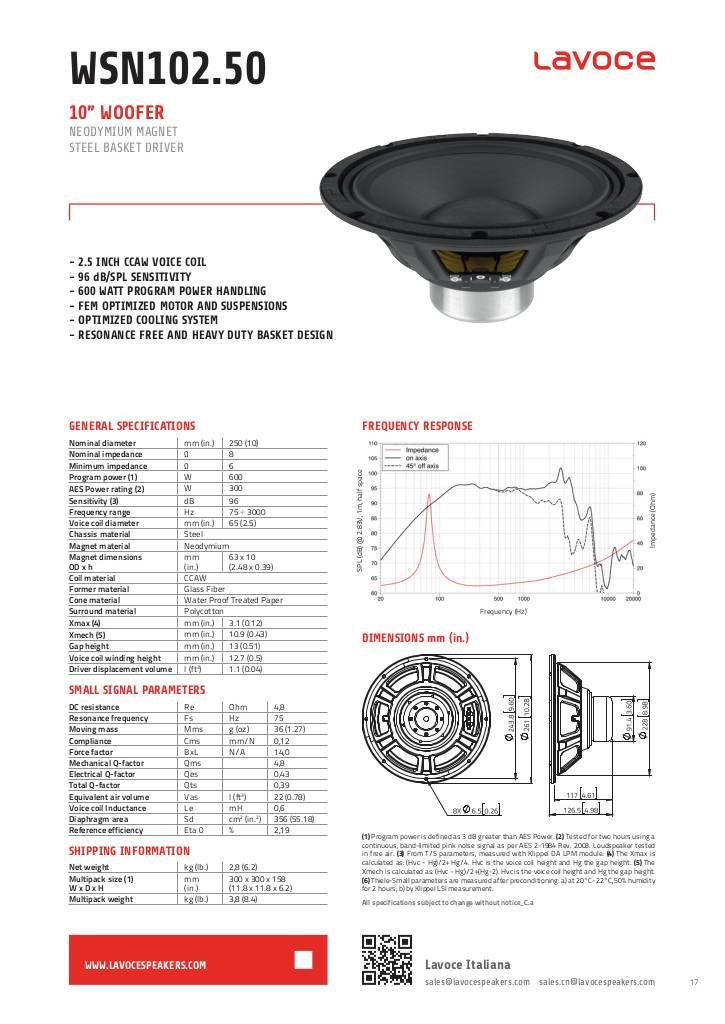

scheda tecnica

1549117761-wsn10250-1.pdf

LaVoce WSN102.50 Technical Specifications

  • Nominal diameter mm (in) 250 (10)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6
  • Program power W 600
  • AES power W 300
  • Sensitivity dB 96
  • Frequency range Hz 75 ÷ 3000
  • Voice coil diameter mm (in) 65 (2.5)
  • Basket material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 63 x 10 (2.48 x 0.39)
  • Coil material CCAW
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 3.1 (0.12)
  • Xmech mm (in) 10.9 (0.43)
  • Gap height mm (in) 13 (0.51)
  • Voice coil winding height mm (in) 12.7 (0.5)
  • Driver displacement volume l (ft³) 1.1 (0.04)
  • DC resistance Ohm 4.8
  • Resonance frequency Hz 75
  • Moving mass g (oz) 36 (1.27)
  • Compliance mm/N 0.12
  • Force factor N/A 14
  • Mechanical Q factor 4.8
  • Electrical Q factor 0.43
  • Total Q factor 0.39
  • Equivalent air volume l (ft3) 22 (0.78)
  • Voice coil inductance mH 0.6
  • Diaphragm area cm2 (in.2) 356 (55.18)
  • Reference efficiency 2.19
  • Net weight kg (lb) 2.8 (6.2)
  • Multipack dimensions L x W x H 300 x 300 x 158 (11.8 x 11.8 x 6.2)
  • Multipack weight kg (lb) 3.8 (8.4)
€ 130,90 Price incl. VAT
