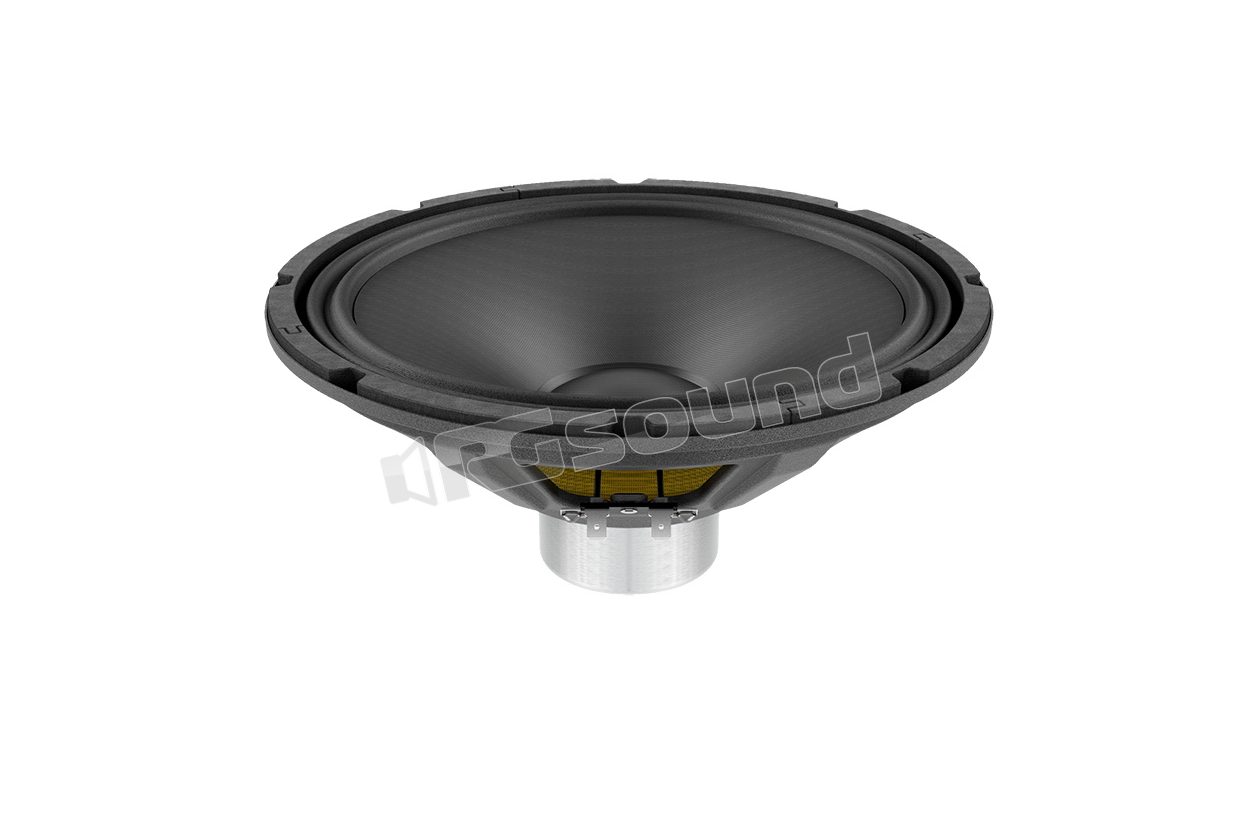

WSN102.00 10"/250mm woofer

LaVoce
Your price:
€ 83,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
300 Watt
RMS Power
150 Watt
Frequency Response
60 - 4000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
1,3 Kg
Voice Coil Diameter
51 mm

LaVoce WSN102.00 10"/250mm Woofer

LaVoce code 70R01100

WSN102.00 Features

  • 2 inch voice coil in CCAW
  • Sensitivity 97 db/spl
  • 300 watts of program power handling
  • Motor and suspensions optimized for FEM
  • Basket design free from resonances and resistant

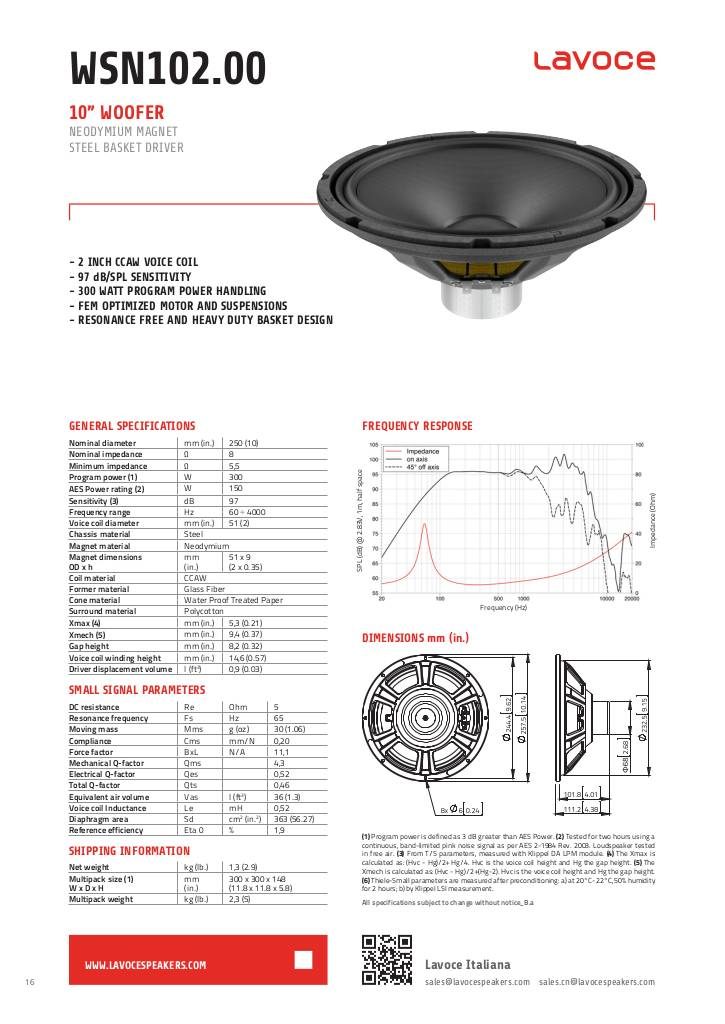

scheda tecnica

1549117767-wsn10200-1.pdf

LaVoce WSN102.00 Technical Specifications

  • Nominal diameter mm (in) 250 (10)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.5
  • Program power W 300
  • AES power W 150
  • Sensitivity dB 97
  • Frequency range Hz 60 ÷ 4000
  • Voice coil diameter mm (in) 51 (2)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 51 x 9 (2 x 0.35)
  • Coil material CCAW
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 5.3 (0.21)
  • Xmech mm (in) 9.4 (0.37)
  • Gap height mm (in) 8.2 (0.32)
  • Voice coil winding height mm (in) 14.6 (0.57)
  • Driver displacement volume l (ft³) 0.9 (0.03)
  • DC resistance Ohm 5
  • Resonance frequency Hz 65
  • Moving mass g (oz) 30 (1.06)
  • Compliance mm/N 0.20
  • Force factor N/A 11.1
  • Mechanical Q factor 4.3
  • Electrical Q factor 0.52
  • Total Q factor 0.46
  • Equivalent air volume l (ft3) 36 (1.3)
  • Voice coil inductance mH 0.52
  • Diaphragm area cm2 (in.2) 363 (56.27)
  • Reference efficiency 1.9
  • Net weight kg (lb) 1.3 (2.9)
  • Multipack dimensions L x W x H 300 x 300 x 148 (11.8 x 11.8 x 5.8)
  • Multipack weight kg (lb) 2.3 (5)
