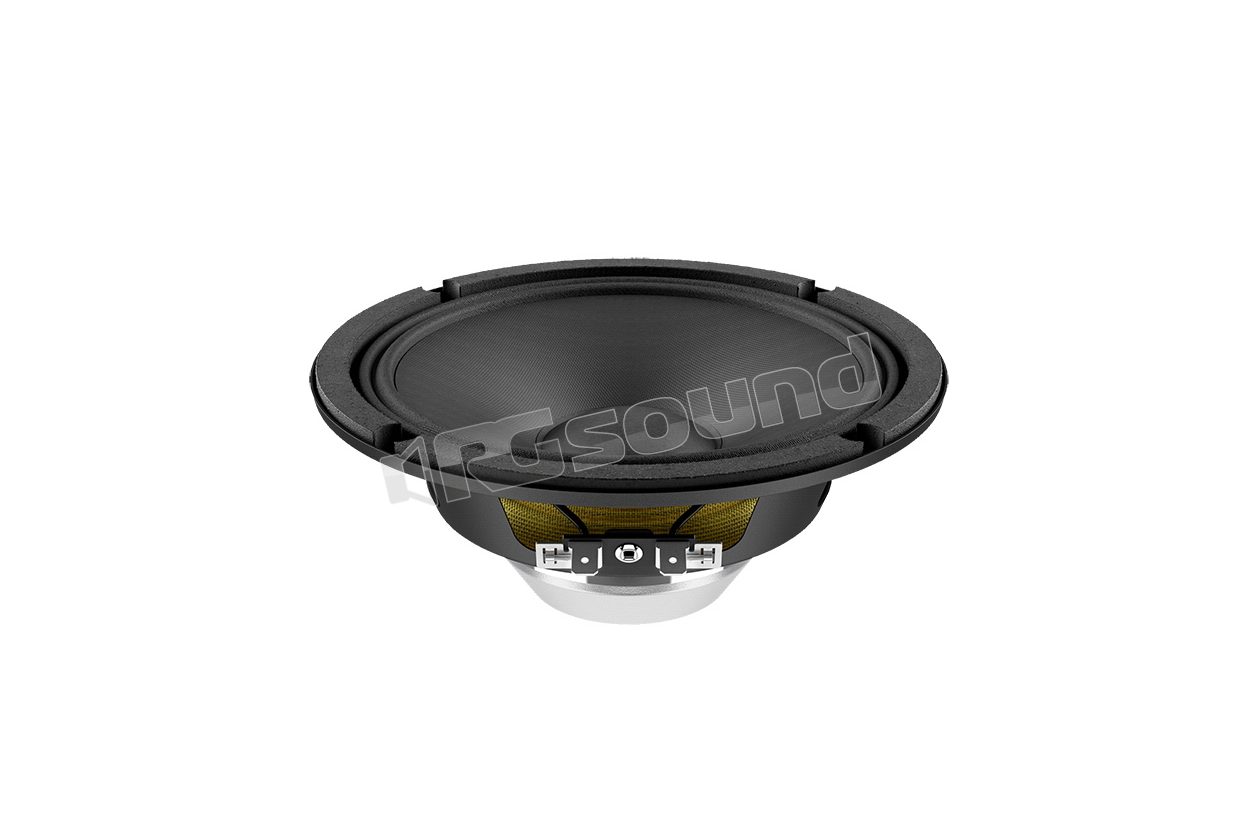

WSN061.52 6.5"/165mm Woofer

LaVoce
Your price:
€ 57,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
200 Watt
RMS Power
100 Watt
Frequency Response
90 - 6000 Hertz
Sensitivity
94 dB
Impedance
8 Ohm

LaVoce WSN061.52 6.5"/165mm Woofer

LaVoce code VLR01060

WSN061.52 Features

  • 1.5 inch copper voice coil
  • Sensitivity 94 db/spl
  • Program power handling of 200 watts
  • Engine and suspensions optimized for FEM
  • Basket design free from resonances and resistant

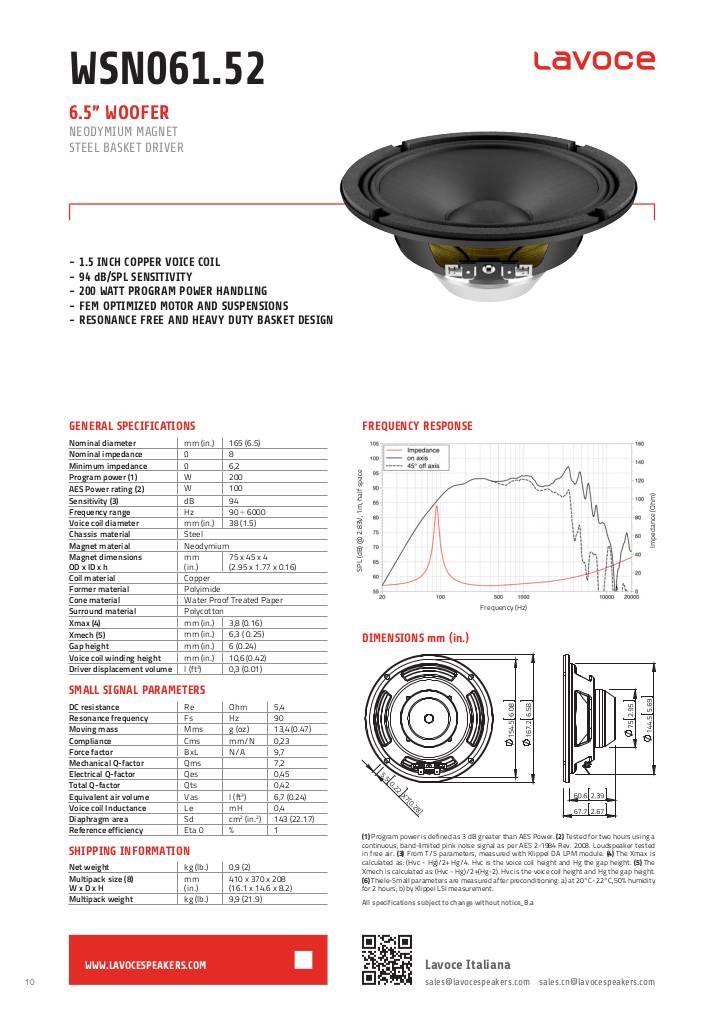

scheda tecnica

1549117786-wsn06152-1.pdf

LaVoce WSN061.52 Technical Specifications

  • Nominal diameter mm (in) 165 (6.5)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.2
  • Program power W 200
  • AES power W 100
  • Sensitivity dB 94
  • Frequency range Hz 90 ÷ 6000
  • Voice coil diameter mm (in) 38 (1.5)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 75 x 45 x 4 (2.95 x 1.77 x 0.16)
  • Coil material Copper
  • Structure material Polyimide
  • Cone material Treated water-resistant paper
  • Surround material Polycotton
  • Xmax mm (in) 3.8 (0.16)
  • Xmech mm (in) 6.3 (0.25)
  • Gap height mm (in) 6 (0.24)
  • Voice coil winding height mm (in) 10.6 (0.42)
  • Driver displacement volume l (ft³) 0.3 (0.01)
  • DC resistance Ohm 5.4
  • Resonance frequency Hz 90
  • Moving mass g (oz) 13.4 (0.47)
  • Compliance mm/N 0.23
  • Force factor N/A 9.7
  • Mechanical Q factor 7.2
  • Electrical Q factor 0.45
  • Total Q factor 0.42
  • Equivalent air volume l (ft3) 6.7 (0.24)
  • Voice coil inductance mH 0.4
  • Diaphragm area cm2 (in.2) 143 (22.17)
  • Reference efficiency 1
  • Net weight kg (lb) 0.9 (2)
  • Multipack dimensions L x W x H 410 x 370 x 208 (16.1 x 14.6 x 8.2)
  • Multipack weight kg (lb) 9.9 (21.9)
