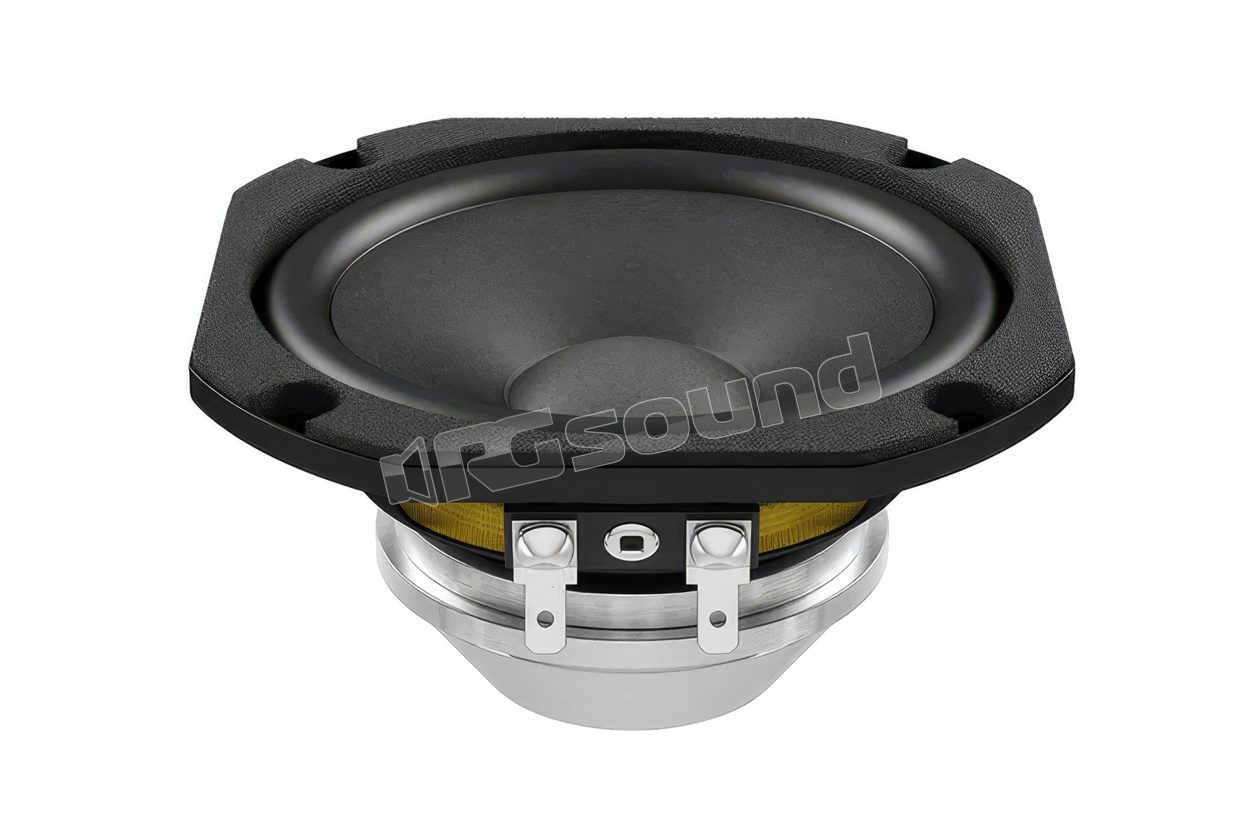

WSN041.00 4"/100mm Woofer

LaVoce
Your price:
€ 48,50
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
100 mm
Frequency Response
100-10000 Hertz
Sensitivity
92 dB
Impedance
8 Ohm
Weight
0,5 Kg
Voice Coil Diameter
25 mm

LaVoce WSN041.00 4"/100mm Woofer


LaVoce code 70R06046

WSN041.00 Features

  • 1 inch copper voice coil
  • Sensitivity 92 db/spl
  • Program power handling 80 watt
  • Motor and suspensions optimized for FEM
  • Steel basket design without resonances and for heavy duty applications
  • Rubber surround material

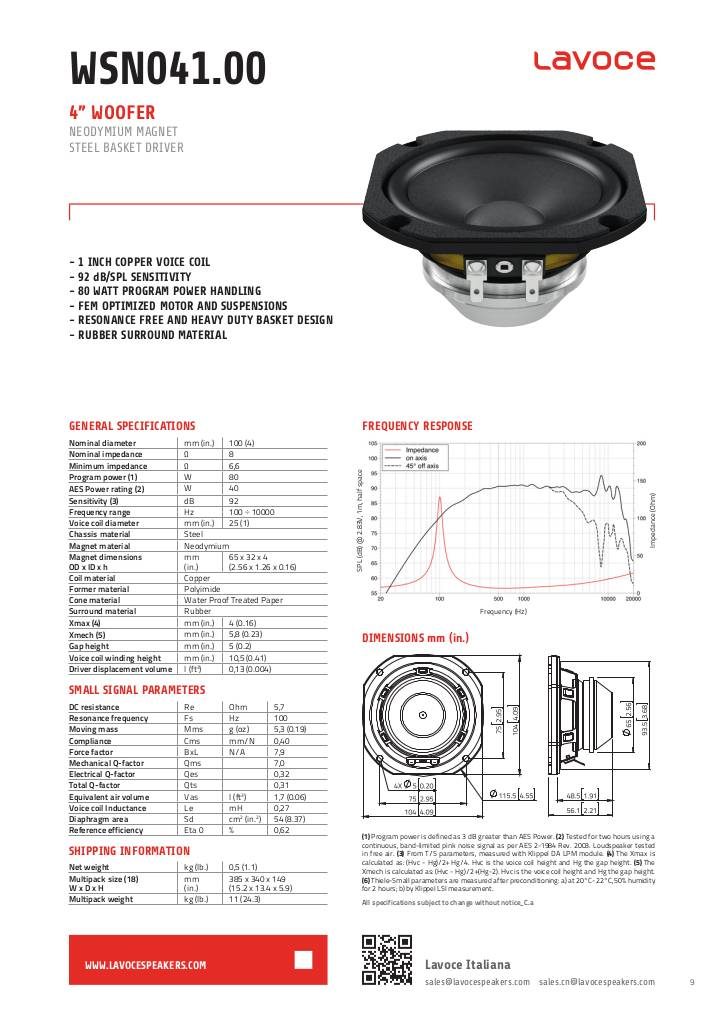

scheda tecnica

1549117191-wsn04100-1.pdf

LaVoce WSN041.00 Technical Specifications

  • Nominal diameter mm (in) 100 (4)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.6
  • Program power W 80
  • AES power W 40
  • Sensitivity dB 92
  • Frequency range Hz 100 ÷ 10000
  • Voice coil diameter mm (in) 25 (1)
  • Frame material Steel
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 65 x 32 x 4 (2.56 x 1.26 x 0.16)
  • Coil material Copper
  • Structure material Polyimide
  • Cone material Water-proof treated paper
  • Surround material Rubber
  • Xmax mm (in) 4 (0.16)
  • Xmech mm (in) 5.8 (0.23)
  • Gap height mm (in) 5 (0.2)
  • Voice coil winding height mm (in) 10.5 (0.41)
  • Driver displacement volume l (ft³) 0.13 (0.004)
  • DC resistance Ohm 5.7
  • Resonance frequency Hz 100
  • Moving mass g (oz) 5.3 (0.19)
  • Compliance mm/N 0.4
  • Force factor N/A 7.9
  • Mechanical Q factor 7
  • Electrical Q factor 0.32
  • Total Q factor 0.31
  • Equivalent air volume l (ft3) 1.7 (0.06)
  • Voice coil inductance mH 0.27
  • Diaphragm area cm2 (in.2) 54 (8.37)
  • Reference efficiency 0.62
  • Net weight kg (lb) 0.5 (1.1)
  • Multipack dimensions L x W x H 385 x 340 x 149 (15.2 x 13.4 x 5.9)
  • Multipack weight kg (lb) 11 (24.3)
