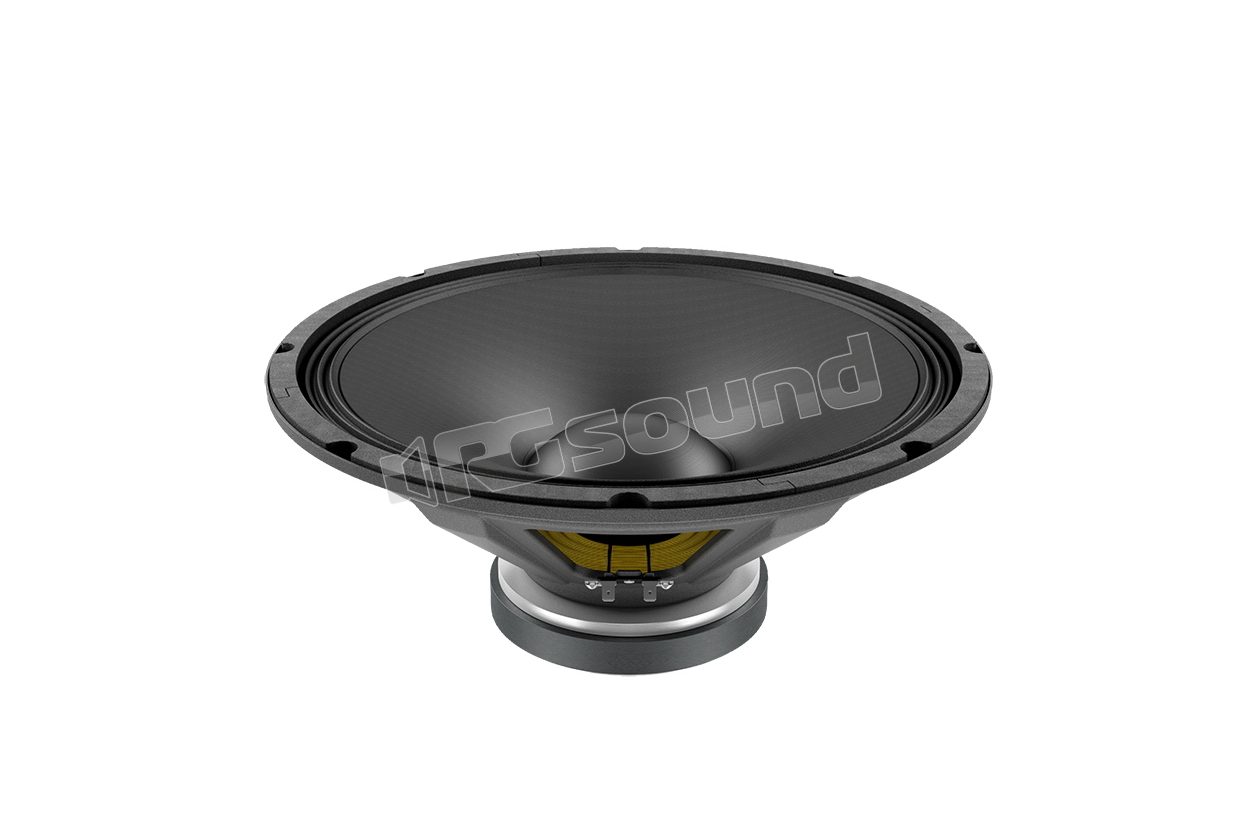

WSF152.50 15"/380mm Woofer

LaVoce
Your price:
€ 110,90
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
45 - 3000 Hertz
Sensitivity
97,5 dB
Impedance
8 Ohm
Weight
7,5 Kg
Voice Coil Diameter
65 mm

LaVoce WSF152.50 15"/380mm Woofer


LaVoce code 70R11150

WSF152.50 Features

  • 2.5 inch copper voice coil
  • Sensitivity 97.5 db/spl
  • Program power handling of 500 watts
  • Motor and suspensions optimized for FEM
  • Resonance-free and rigid basket design
  • Triple roll surround

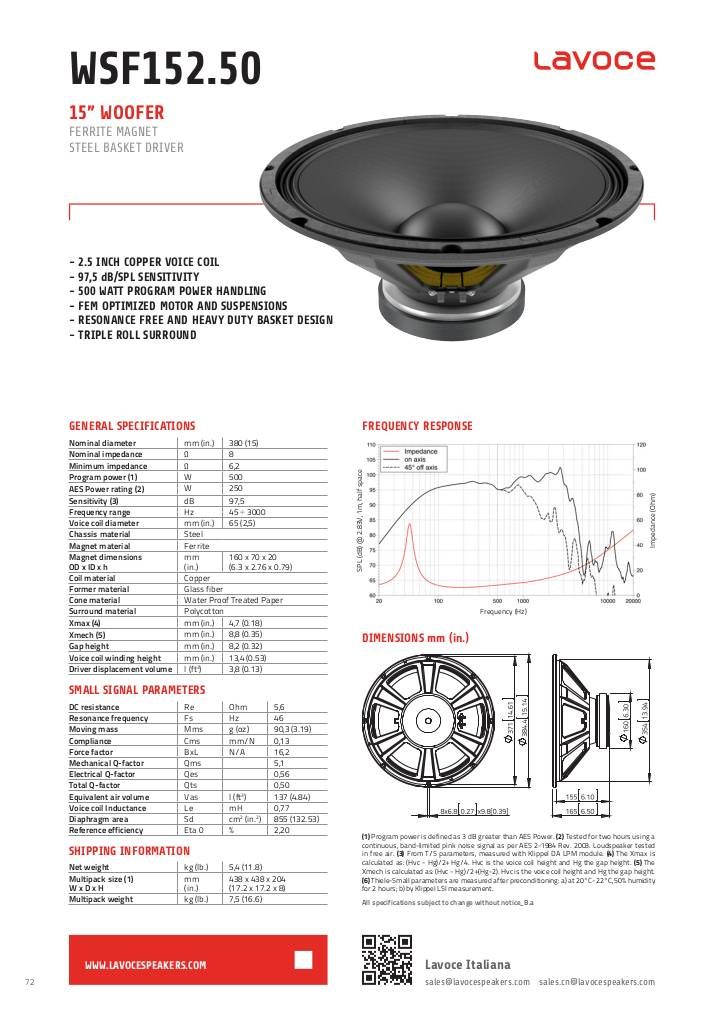

scheda tecnica

1549117359-wsf15250-1.pdf

LaVoce WSF152.50 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.2
  • Program power W 500
  • AES power W 250
  • Sensitivity dB 97.5
  • Frequency range Hz 45 ÷ 3000
  • Voice coil diameter mm (in) 65 (2.5)
  • Basket material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 160 x 70 x 20 (6.3 x 2.76 x 0.79)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-proof treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.7 (0.18)
  • Xmech mm (in) 8.8 (0.35)
  • Gap height mm (in) 8.2 (0.32)
  • Voice coil winding height mm (in) 13.4 (0.53)
  • Driver displacement volume l (ft³) 3.8 (0.13)
  • DC resistance Ohm 5.6
  • Resonance frequency Hz 46
  • Moving mass g (oz) 90.3 (3.19)
  • Compliance mm/N 0.13
  • Force factor N/A 16.2
  • Mechanical Q factor 5.1
  • Electrical Q factor 0.56
  • Total Q factor 0.50
  • Equivalent air volume l (ft3) 137 (4.84)
  • Voice coil inductance mH 0.77
  • Diaphragm area cm2 (in.2) 855 (132.53)
  • Reference efficiency 2.20%
  • Net weight kg (lb) 5.4 (11.8)
  • Multipack dimensions L x W x H 438 x 438 x 204 (17.2 x 17.2 x 8)
  • Multipack weight kg (lb) 7.5 (16.6)
€ 110,90 Price incl. VAT
