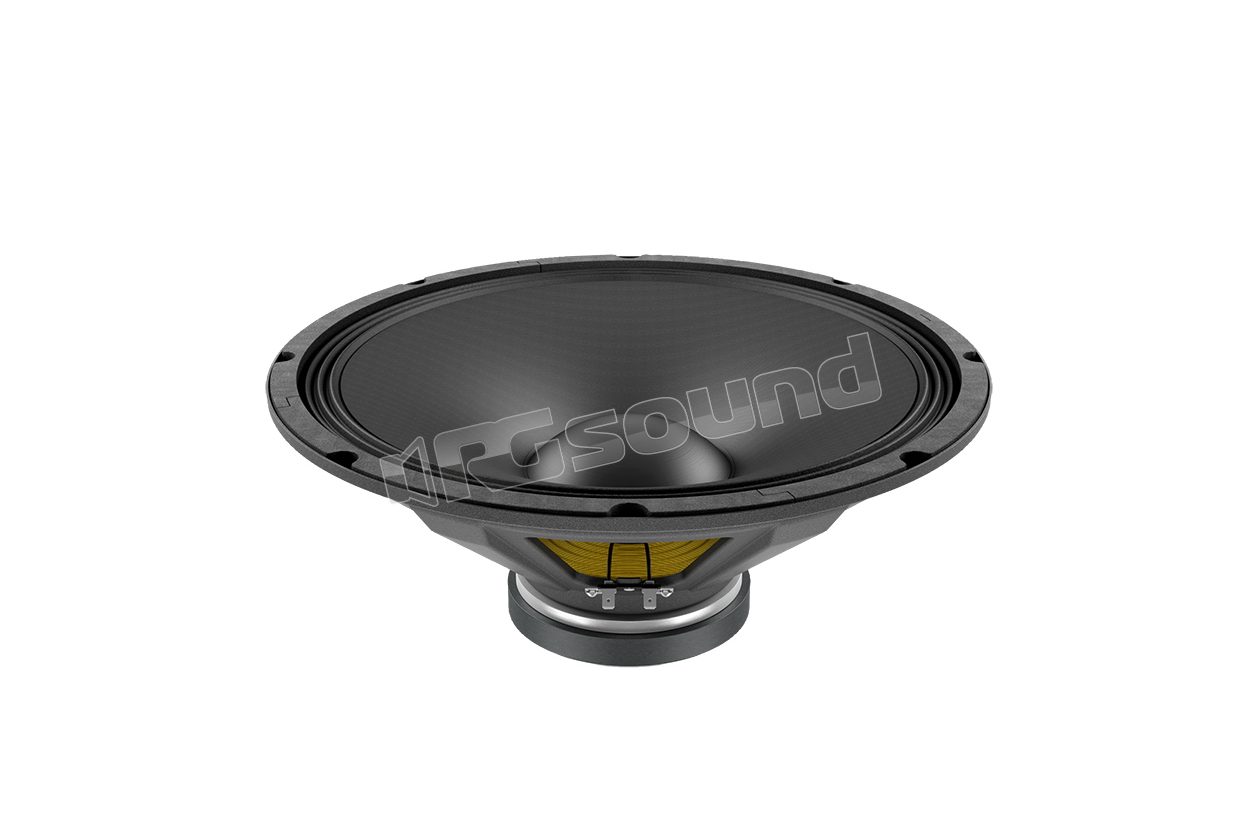

WSF152.02 15"/380mm Woofer

LaVoce
Your price:
€ 85,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
40 - 3000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
4,1 Kg
Voice Coil Diameter
51 mm

LaVoce WSF152.02 15"/380mm Woofer

LaVoce code 70R02150

WSF152.02 Features

  • 2 inch copper voice coil
  • Sensitivity 98 db/spl
  • Program handling power of 400 watts
  • Motor and suspensions optimized for FEM
  • Resonance-free and durable basket design
  • Triple roll surround

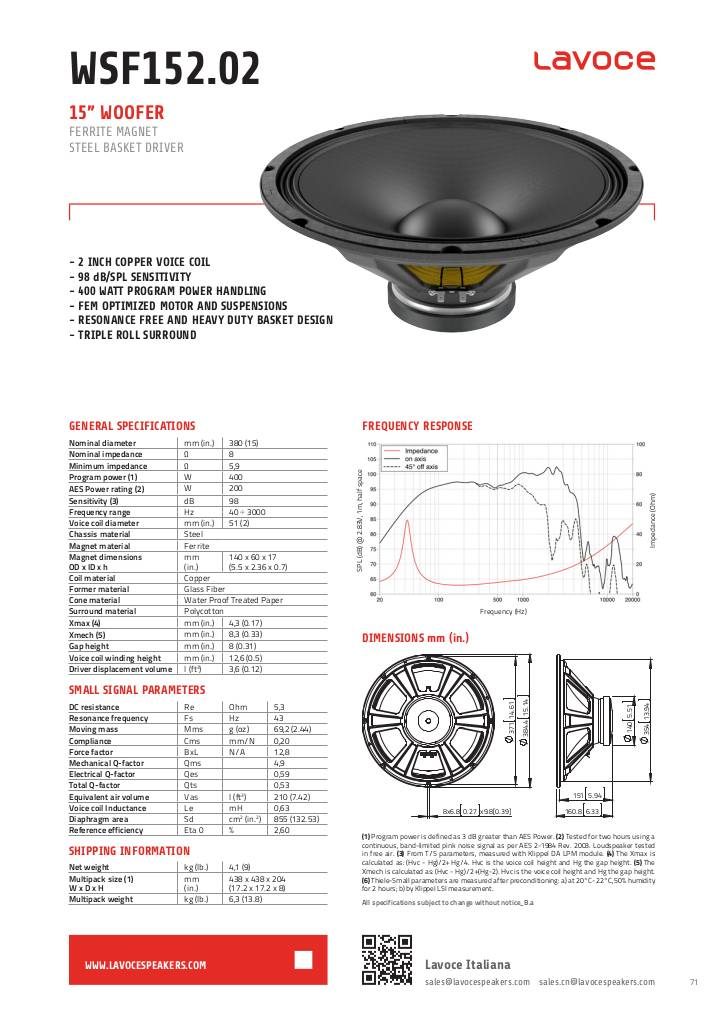

scheda tecnica

1549117352-wsf15202-1.pdf

LaVoce WSF152.02 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.9
  • Program power W 400
  • AES power W 200
  • Sensitivity dB 98
  • Frequency range Hz 40 ÷ 3000
  • Voice coil diameter mm (in) 51 (2)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 140 x 60 x 17 (5.5 x 2.36 x 0.7)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.3 (0.17)
  • Xmech mm (in) 8.3 (0.33)
  • Gap height mm (in) 8 (0.31)
  • Voice coil winding height mm (in) 12.6 (0.5)
  • Driver displacement volume l (ft³) 3.6 (0.12)
  • DC resistance Ohm 5.3
  • Resonance frequency Hz 43
  • Moving mass g (oz) 69.2 (2.44)
  • Compliance mm/N 0.20
  • Force factor N/A 12.8
  • Mechanical Q factor 4.9
  • Electrical Q factor 0.59
  • Total Q factor 0.53
  • Equivalent air volume l (ft3) 210 (7.42)
  • Voice coil inductance mH 0.63
  • Diaphragm area cm2 (in.2) 855 (132.53)
  • Reference efficiency 2.60%
  • Net weight kg (lb) 4.1 (9)
  • Multipack dimensions L x W x H 438 x 438 x 204 (17.2 x 17.2 x 8)
  • Multipack weight kg (lb) 6.3 (13.8)
€ 85,00 Price incl. VAT
