WSF122.50 12"/300mm Woofer

LaVoce
Your price:
€ 86,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
50 - 3000 Hertz
Sensitivity
97,5 dB
Impedance
8 Ohm
Weight
4,7 Kg
Voice Coil Diameter
65 mm

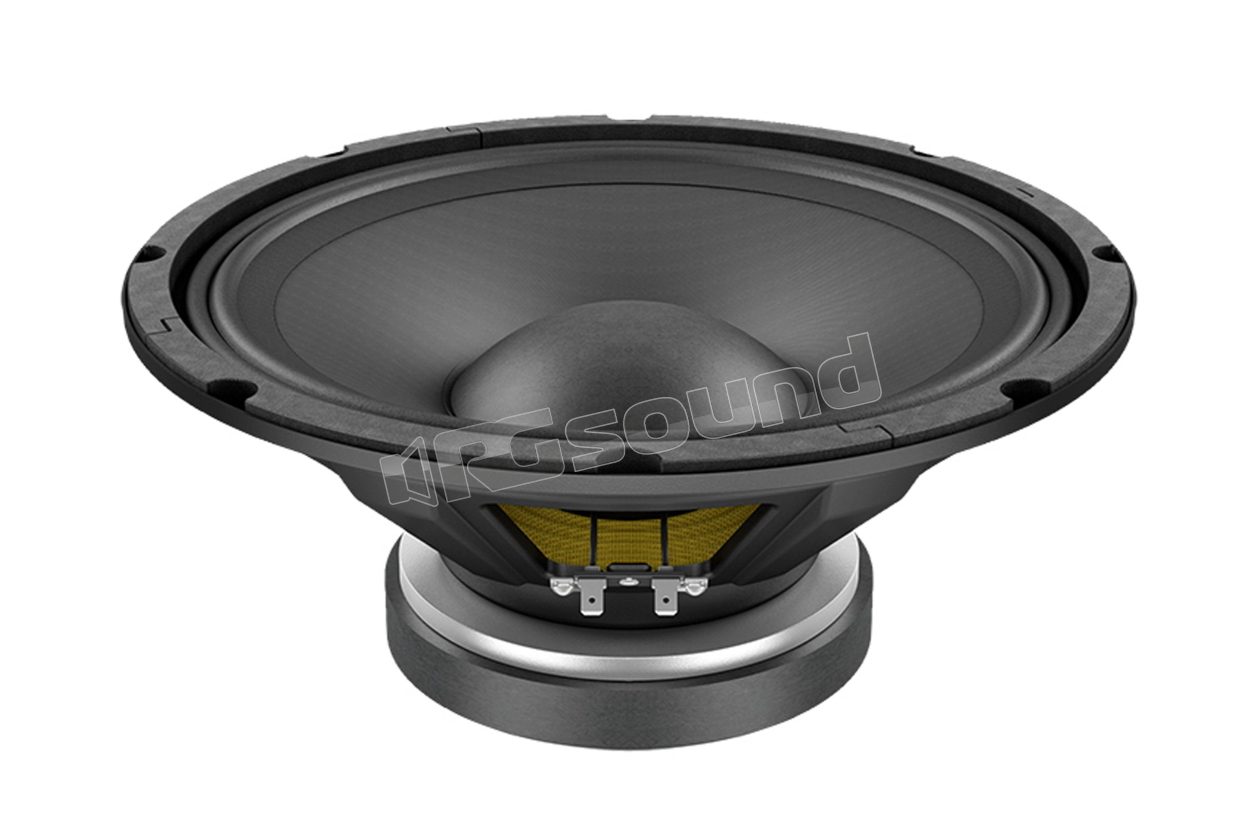

LaVoce WSF122.50 12"/300mm Woofer

LaVoce code 70R11120

WSF122.50 Features

  • 2.5 inch copper voice coil
  • Sensitivity 97.5 db/spl
  • Power handling 500 watts program
  • Motor and suspensions optimized for FEM
  • Basket design free of resonances and resistant

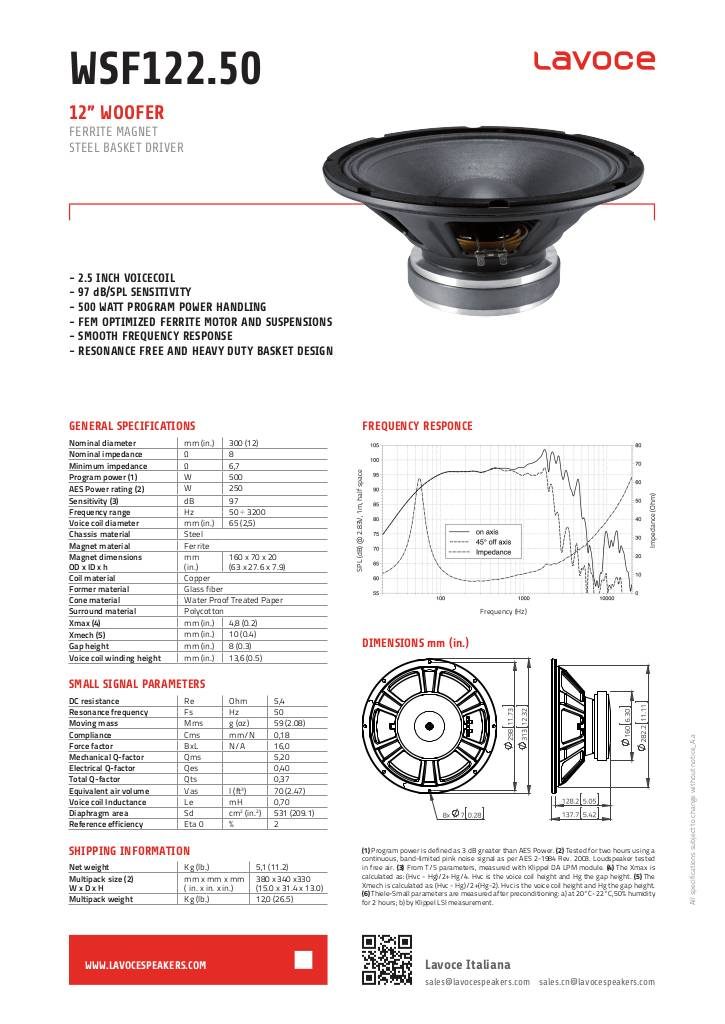

scheda tecnica

n-20201029140959-lavoce-wsf122-50-12in-woofer-a-a.pdf

LaVoce WSF122.50 Technical Specifications

  • Nominal diameter mm (in) 300 (12)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.4
  • Program power W 500
  • AES power W 250
  • Sensitivity dB 97.5
  • Frequency range Hz 50 ÷ 3000
  • Voice coil diameter mm (in) 65 (2.5)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 160 x 70 x 20 (6.3 x 2.76 x 0.79)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-proof treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.7 (0.18)
  • Xmech mm (in) 8.8 (0.35)
  • Gap height mm (in) 8.2 (0.32)
  • Voice coil winding height mm (in) 13.4 (0.53)
  • Driver displacement volume l (ft³) 2 (0.07)
  • DC resistance Ohm 5.5
  • Resonance frequency Hz 50
  • Moving mass g (oz) 58.4 (2.05)
  • Compliance mm/N 0.18
  • Force factor N/A 17.1
  • Mechanical Q factor 5.5
  • Electrical Q factor 0.34
  • Total Q factor 0.32
  • Equivalent air volume l (ft3) 72 (2.54)
  • Voice coil inductance mH 0.76
  • Diaphragm area cm2 (in.2) 531 (82.31)
  • Reference efficiency 2.3%
  • Net weight kg (lb) 4.7 (10.3)
  • Multipack dimensions L x W x H 356 x 356 x 173 (14 x 14 x 6.8)
  • Multipack weight kg (lb) 6 (13.3)
€ 86,20 Price incl. VAT
