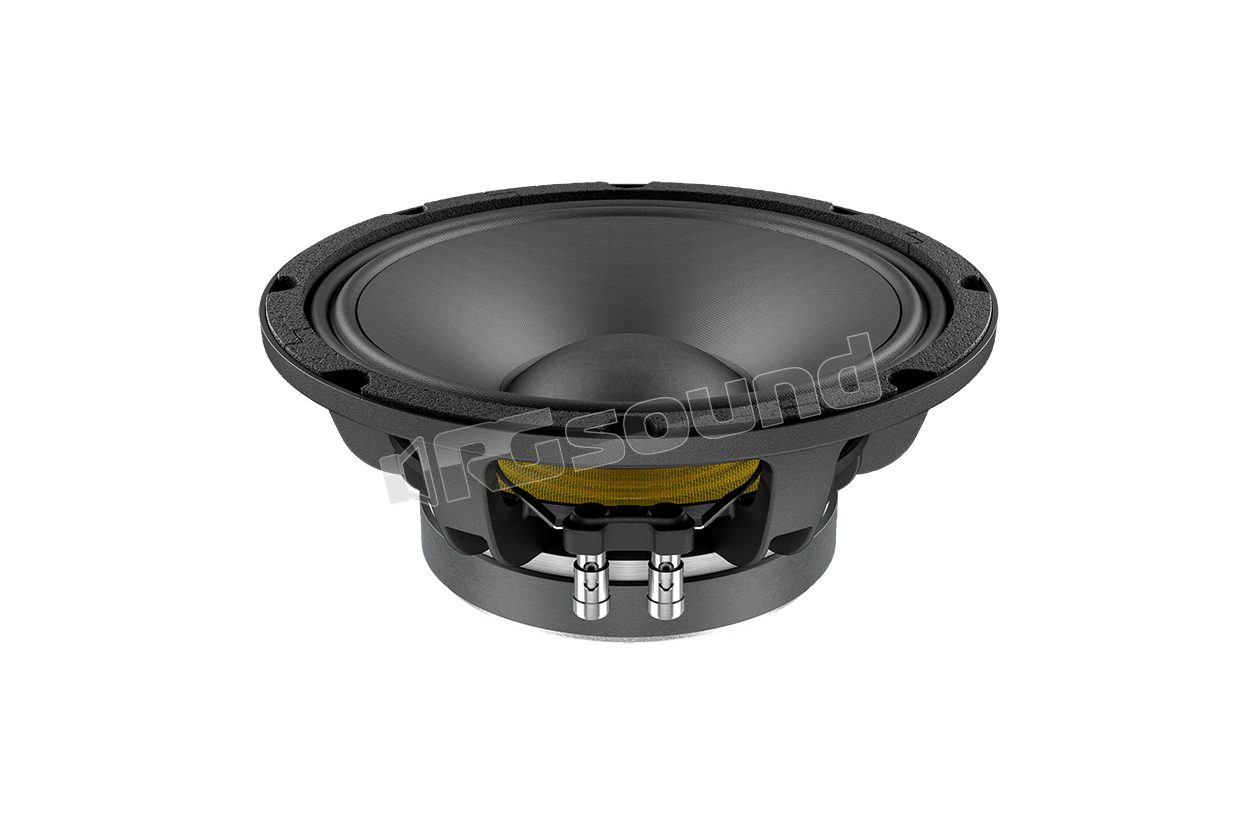

WSF102.50 10"/250mm woofer

LaVoce
Your price:
€ 92,40
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
70 - 4000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
4,8 Kg
Voice Coil Diameter
65 mm

LaVoce WSF102.50 10"/250mm Woofer

LaVoce code 70R11102

WSF102.50 Features

  • 2.5 inch CCAW voice coil
  • Sensitivity 97 db/spl
  • Power handling 500 watt program
  • FEM optimized motor and suspension
  • Optimized cooling system
  • Resonance-free and rigid basket design

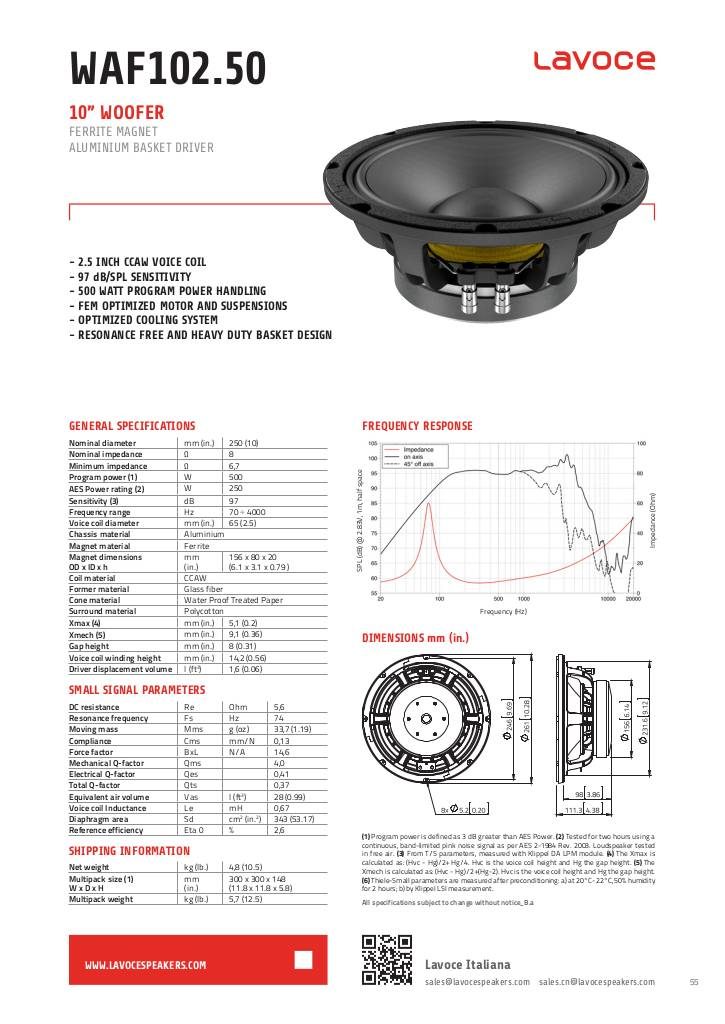

scheda tecnica

1549117725-wsf10250-1.pdf

LaVoce WSF102.50 Technical Specifications

  • Nominal diameter mm (in) 250 (10)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.7
  • Program power W 500
  • AES power W 250
  • Sensitivity dB 97
  • Frequency range Hz 70 ÷ 4000
  • Voice coil diameter mm (in) 65 (2.5)
  • Frame material Aluminum
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 156 x 80 x 20 (6.1 x 3.1 x 0.79)
  • Coil material CCAW
  • Surround material Fiberglass
  • Cone material Water-proof treated paper
  • Dust cap material Polycotton
  • Xmax mm (in) 5.1 (0.2)
  • Xmech mm (in) 9.1 (0.36)
  • Gap height mm (in) 8 (0.31)
  • Voice coil winding height mm (in) 14.2 (0.56)
  • Driver displacement volume l (ft³) 1.6 (0.06)
  • DC resistance Ohm 5.6
  • Resonance frequency Hz 74
  • Moving mass g (oz) 33.7 (1.19)
  • Compliance mm/N 0.13
  • Force factor N/A 14.6
  • Mechanical Q factor 4.0
  • Electrical Q factor 0.41
  • Total Q factor 0.37
  • Equivalent air volume l (ft3) 28 (0.99)
  • Voice coil inductance mH 0.67
  • Diaphragm area cm2 (in.2) 350 (54.25)
  • Reference efficiency 2.6
  • Net weight kg (lb) 4.8 (10.5)
  • Multipack dimensions L x W x H 300 x 300 x 148 (11.8 x 11.8 x 5.8)
  • Multipack weight kg (lb) 5.7 (12.5)
€ 92,40 Price incl. VAT
