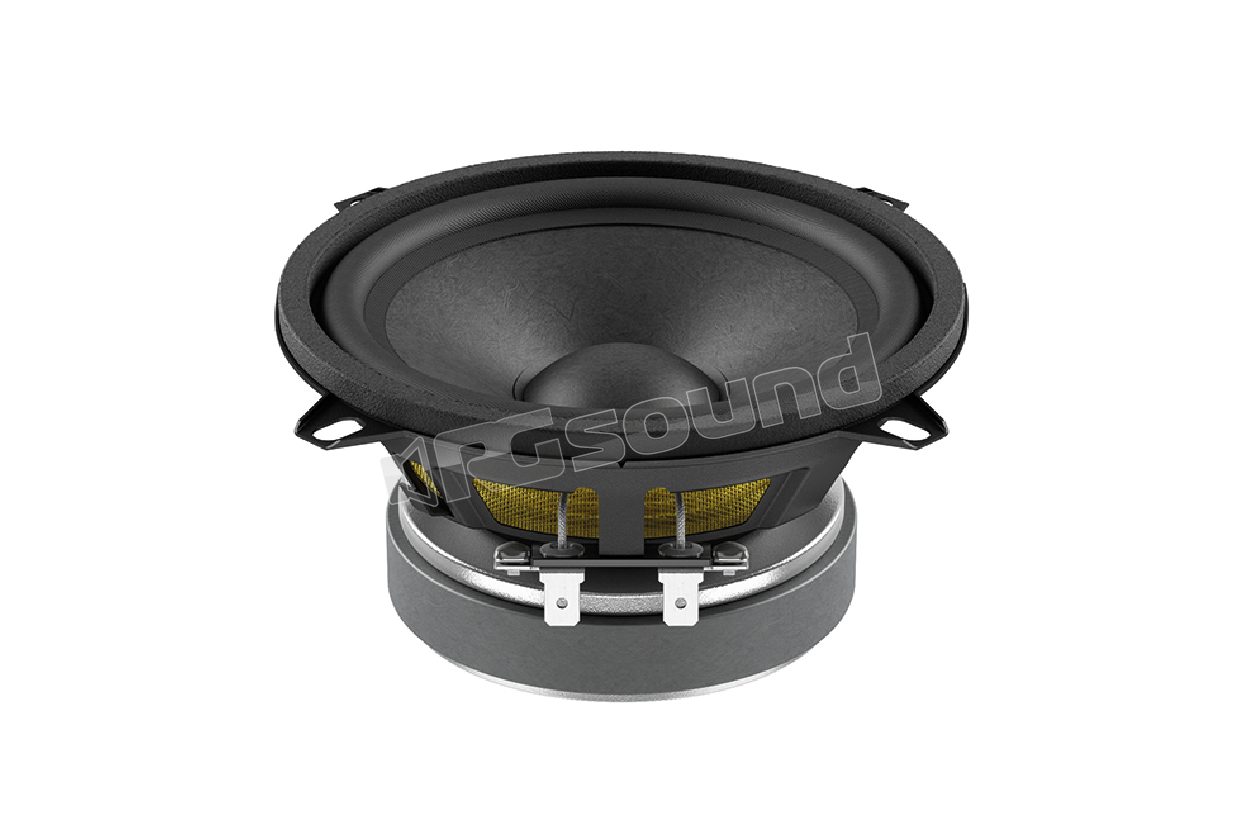

WSF051.02 5"/130mm Woofer

LaVoce
Your price:
€ 19,30
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
130 mm
MAX Power
120 Watt
RMS Power
60 Watt
Frequency Response
100 - 5000 Hertz
Sensitivity
91,5 dB
Impedance
8 Ohm
Weight
0,9 Kg
Voice Coil Diameter
25 mm

LaVoce WSF051.02 5"/130mm Woofer


LaVoce code 70R02050

WSF051.02 Features

  • 1 inch copper voice coil
  • Sensitivity 91.5 db/spl
  • Program power handling 120 watt
  • Motor and suspensions optimized for FEM
  • Resonance-free and robust basket design
  • Rubber surround material

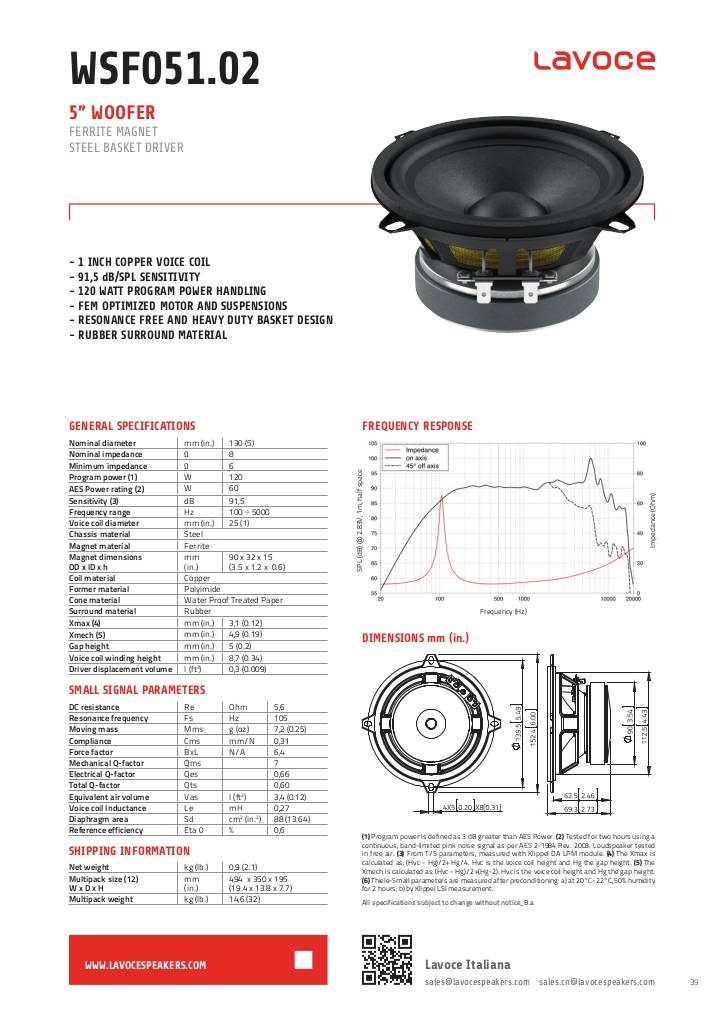

scheda tecnica

1549117218-wsf05102-1.pdf

LaVoce WSF051.02 Technical Specifications

  • Nominal diameter mm (in) 130 (5)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6
  • Program power W 120
  • AES power W 60
  • Sensitivity dB 91.5
  • Frequency range Hz 100 ÷ 5000
  • Voice coil diameter mm (in) 25 (1)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 90 x 32 x 15 (3.5 x 1.2 x 0.6)
  • Coil material Copper
  • Surround material Polyimide
  • Cone material Water-proof treated paper
  • Surround material Rubber
  • Xmax mm (in) 3.1 (0.12)
  • Xmech mm (in) 4.9 (0.19)
  • Pole piece height mm (in) 5 (0.2)
  • Voice coil winding height mm (in) 8.7 (0.34)
  • Driver displacement volume l (ft³) 0.3 (0.009)
  • DC resistance Ohm 5.6
  • Resonance frequency Hz 105
  • Moving mass g (oz) 7.2 (0.25)
  • Compliance mm/N 0.31
  • Force factor N/A 6.4
  • Mechanical Q factor 7
  • Electrical Q factor 0.66
  • Total Q factor 0.60
  • Equivalent air volume l (ft3) 3.4 (0.12)
  • Voice coil inductance mH 0.27
  • Diaphragm area cm2 (in.2) 88 (13.64)
  • Reference efficiency 0.6
  • Net weight kg (lb) 0.9 (2.1)
  • Multipack dimensions L x W x H 494 x 350 x 195 (19.4 x 13.8 x 7.7)
  • Multipack weight kg (lb) 14.6 (32)
