WL4 line array driver

Beyma
Your price:
€ 520,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

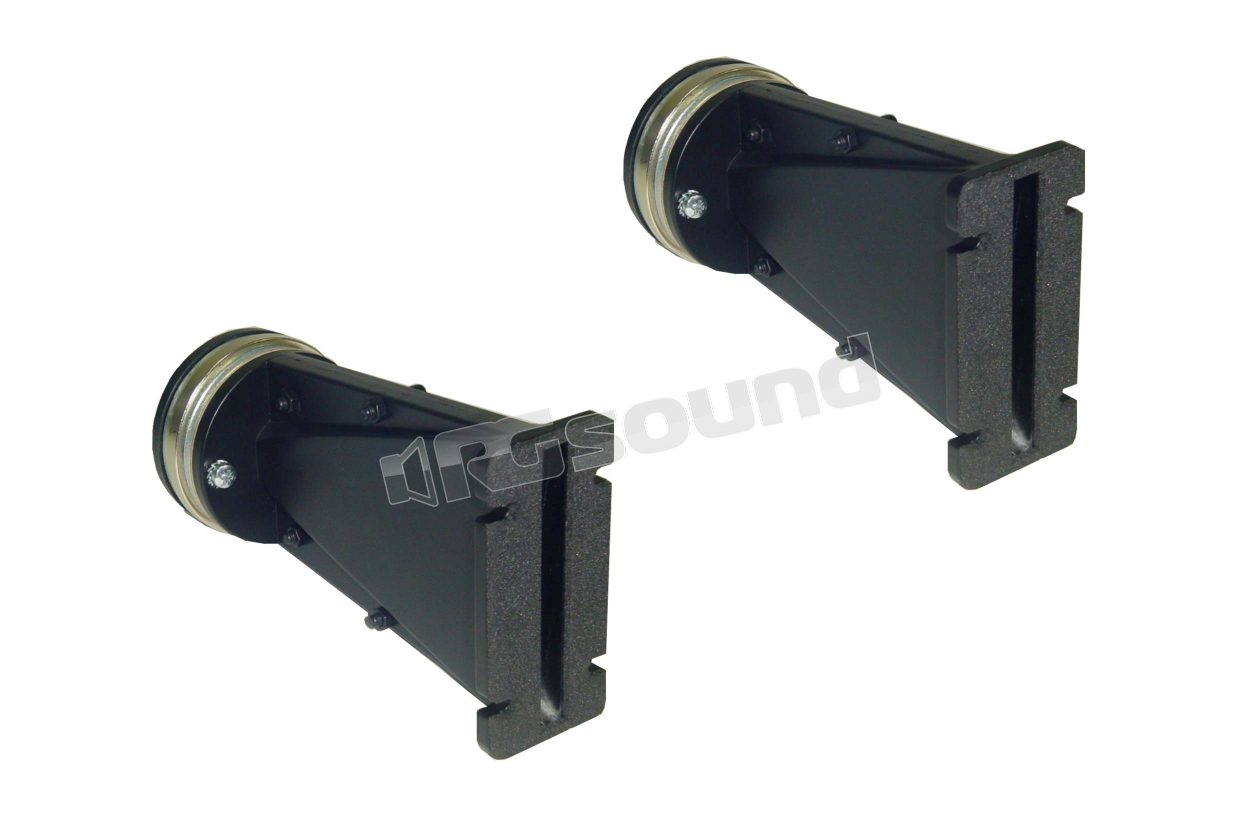

Beyma WL4 pair of line array drivers with 4'' x 0.5'' rectangular output and 105 dB sensitivity

Neodymium magnetic circuit for high efficiency, effective acoustic coupling up to 18 kHz. Extended frequency range: 0.7 - 20 kHz.

1.75" voice coil for excellent power handling.

This combination of high-power neodymium compression drivers with waveguide offers a simple solution for building a Line Array System, which solves the difficult problem of achieving optimal coupling between adjacent high-frequency transducers.

Instead of using expensive and complicated wave shaping devices, a simple but effective waveguide transforms the circular aperture of the compression driver into a rectangular surface, without excessive opening of the angle to provide low curvature to the acoustic wavefront, arriving to satisfy the curvature requirements for optimal acoustic coupling between adjacent sources up to 18 kHz. This is achieved with the minimum possible length for low distortion, but without being excessively short, which would cause strong high-frequency interference. This waveguide can be combined with speakers of different diameters from 8", 6" and 5".

Beyma WL4 technical specifications

Throat diameter 20.5 mm 0.8 in

Flange height 101.6 mm 4 in

Nominal impedance 8 Ohm

Minimum impedance 5.5 ohm @ 4.5 kHz

Re 5.6 ohm

Power capacity 40 W AES above 1.5 kHz

Program power 80 W above 1.5 kHz

Sensitivity 105 dB 1 W @ 1 m coupled to horn

Frequency range 700-20000 Hz

Recom. crossover frequency 1.5 kHz or higher (12dB/oct min slope)

Voice coil diameter 44.3 mm 1.75 in

Flux density 1.8 T

BL factor 8 N/A

Diaphragm material Polyester

External diameter 80 mm 3.15 in

Depth 195 mm 7.68 in

Four 6 mm diameter holes

Net weight 1.1 kg 2.42 lb.

Total weight (2 units) 2.6 kg 5.72 lb.

Magnet Neodymium

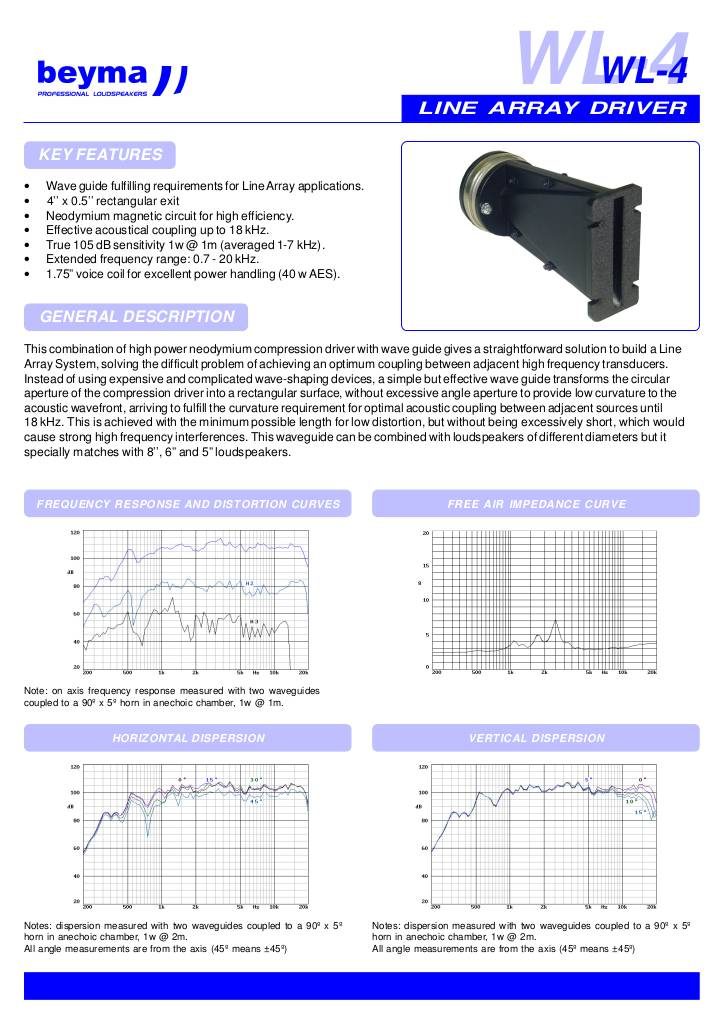

Scheda tecnica

n-20180518120451-wl4.pdf
