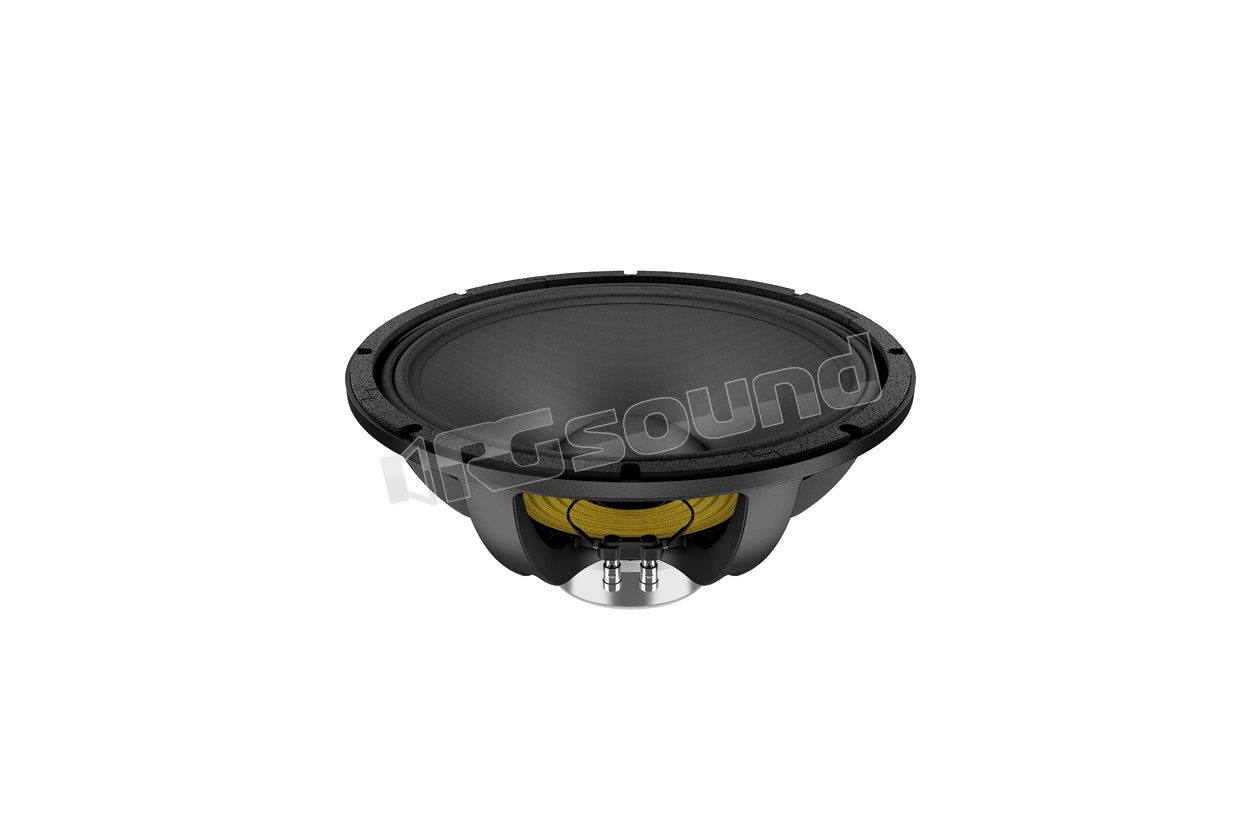

WAN153.00 15"/380mm Woofer

LaVoce
Your price:
€ 224,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
45 - 3000 Hertz
Sensitivity
98,5 dB
Impedance
8 Ohm
Weight
5,8 Kg
Voice Coil Diameter
75 mm

LaVoce WAN153.00 15"/380mm Woofer


LaVoce code 70R10151

WAN153.00 Features

  • 3 inch CCAW voice coil
  • Sensitivity 98.5 db/spl
  • Power handling of 1000 watts program
  • Motor and suspensions optimized FEM
  • Optimized cooling system
  • Basket design free from resonances and resistant

scheda tecnica

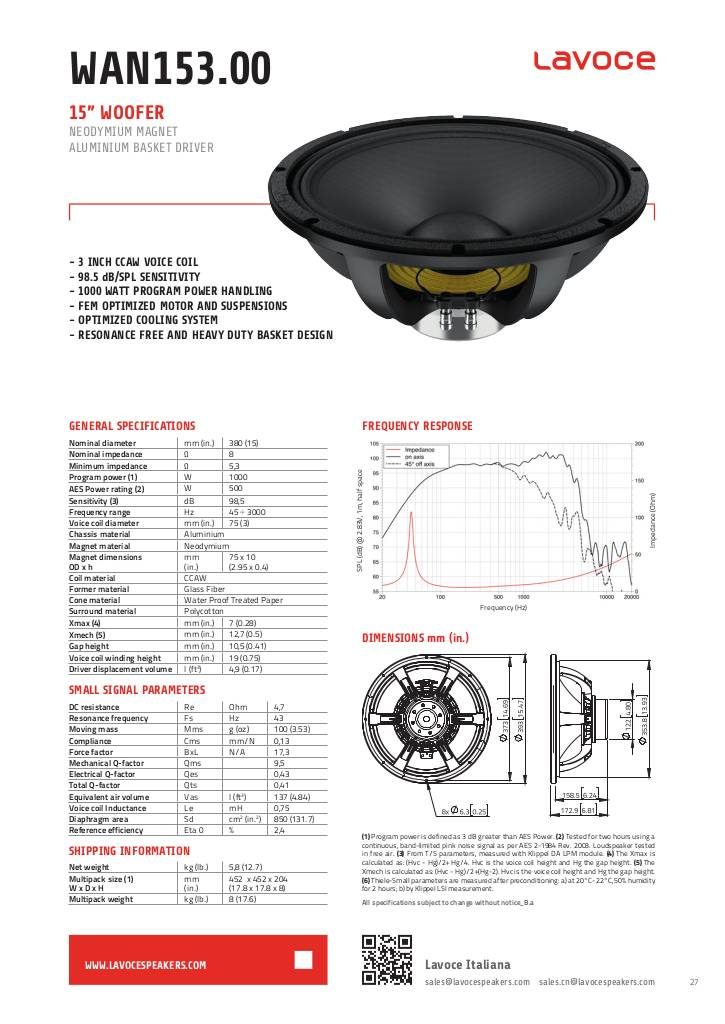

1549117429-wan15300-1.pdf

LaVoce WAN153.00 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.3
  • Program power W 1000
  • AES power W 500
  • Sensitivity dB 98.5
  • Frequency range Hz 45 ÷ 3000
  • Voice coil diameter mm (in) 75 (3)
  • Frame material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 75 x 10 (2.95 x 0.4)
  • Coil material CCAW
  • Structure material Fiberglass
  • Cone material Water resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 7 (0.28)
  • Xmech mm (in) 12.7 (0.5)
  • Gap height mm (in) 10.5 (0.41)
  • Voice coil winding height mm (in) 19 (0.75)
  • Driver displacement volume l (ft³) 4.9 (0.17)
  • DC resistance Ohm 4.7
  • Resonance frequency Hz 43
  • Moving mass g (oz) 100 (3.53)
  • Compliance mm/N 0.13
  • Force factor N/A 17.3
  • Mechanical Q factor 9.5
  • Electrical Q factor 0.43
  • Total Q factor 0.41
  • Equivalent air volume l (ft3) 137 (4.84)
  • Voice coil inductance mH 0.75
  • Diaphragm area cm2 (in.2) 850 (131.7)
  • Reference efficiency 2.4
  • Net weight kg (lb) 5.8 (12.7)
  • Multipack dimensions L x W x H 452 x 452 x 204 (17.8 x 17.8 x 8)
  • Multipack weight kg (lb) 8 (17.6)
€ 224,10 Price incl. VAT
