WAN123.00 12"/300mm Woofer

LaVoce
Your price:
€ 202,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
50 - 3000 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
5,2 Kg
Voice Coil Diameter
75 mm

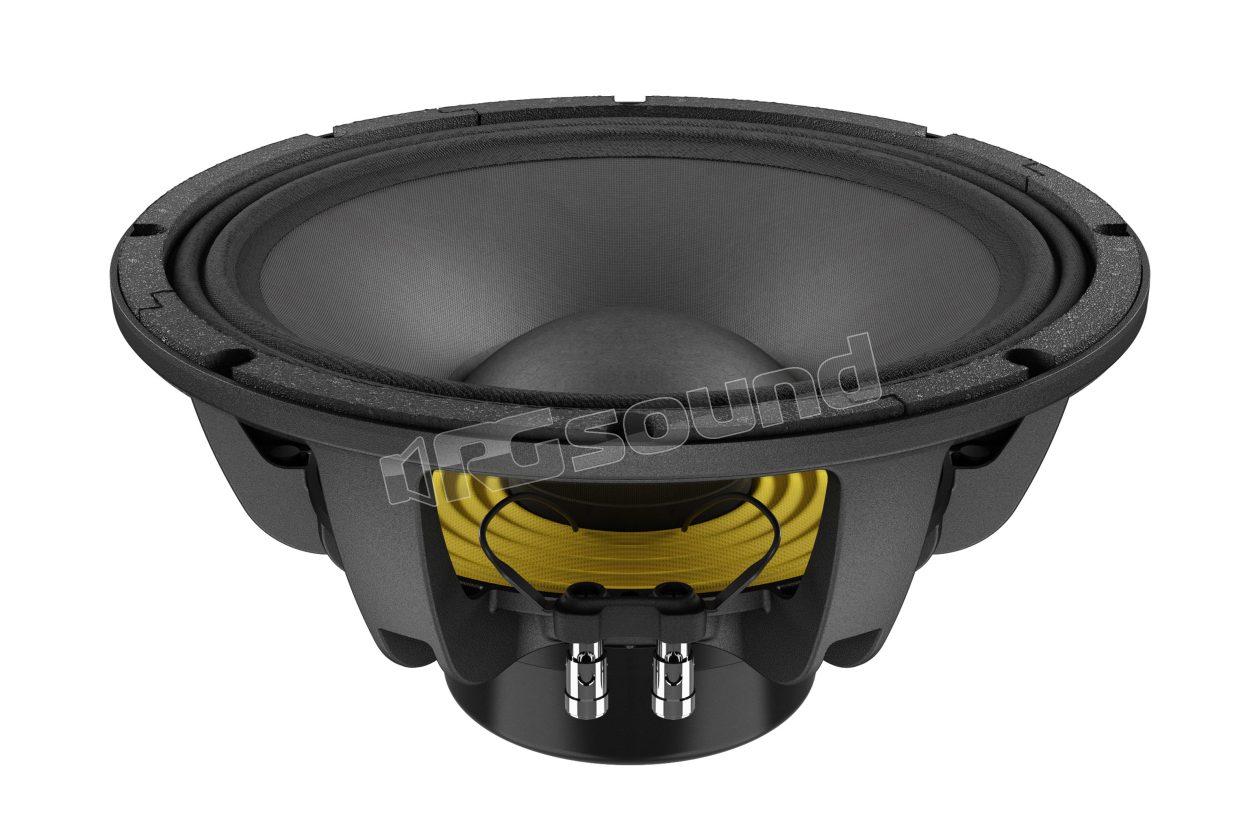

LaVoce WAN123.00 12"/300mm Woofer


LaVoce code VLR10121

WAN123.00 Features

  • 3 inch voice coil in CCAW
  • Sensitivity 99 db/spl
  • Power handling of 1000 watt program
  • Motor and suspensions optimized by FEM
  • Optimized cooling system
  • Basket design free from resonances and resistant

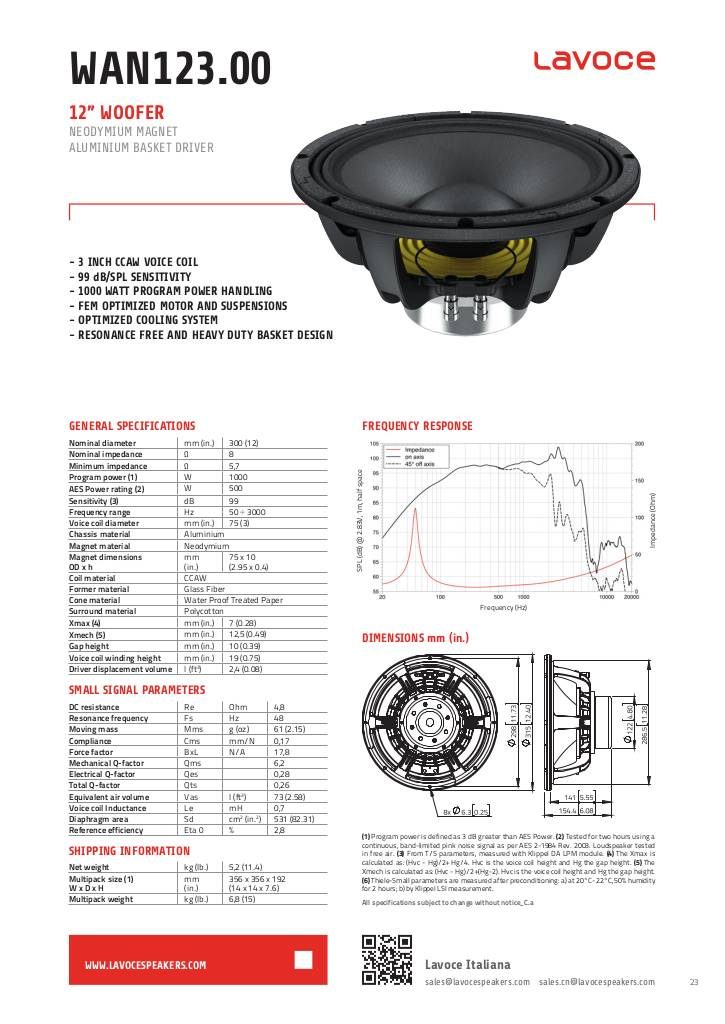

scheda tecnica

1549117416-wan12300-1.pdf

LaVoce WAN123.00 Technical Specifications

  • Nominal diameter mm (in) 300 (12)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.7
  • Program power W 1000
  • AES power W 500
  • Sensitivity dB 99
  • Frequency range Hz 50 ÷ 3000
  • Voice coil diameter mm (in) 75 (3)
  • Chassis material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 75 x 10 (2.95 x 0.4)
  • Coil material CCAW
  • Structure material Fiberglass
  • Cone material Water resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 7 (0.28)
  • Xmech mm (in) 12.5 (0.49)
  • Gap height mm (in) 10 (0.39)
  • Voice coil winding height mm (in) 19 (0.75)
  • Driver displacement volume l (ft³) 2.4 (0.08)
  • DC resistance Ohm 4.8
  • Resonance frequency Hz 48
  • Moving mass g (oz) 61 (2.15)
  • Compliance mm/N 0.17
  • Force factor N/A 17.8
  • Mechanical Q factor 6.2
  • Electrical Q factor 0.28
  • Total Q factor 0.26
  • Equivalent air volume l (ft3) 73 (2.58)
  • Voice coil inductance mH 0.7
  • Diaphragm area cm2 (in.2) 531 (82.31)
  • Reference efficiency 2.8
  • Net weight kg (lb) 5.2 (11.4)
  • Multipack dimensions L x W x H 356 x 356 x 192 (14 x 14 x 7.6)
  • Multipack weight kg (lb) 6.8 (15)
€ 202,50 Price incl. VAT
