WAN102.50LD 10"/250mm Woofer

LaVoce
Your price:
€ 237,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
55 - 4000 Hertz
Sensitivity
92 dB
Impedance
8 Ohm
Weight
3,9 Kg
Voice Coil Diameter
65 mm

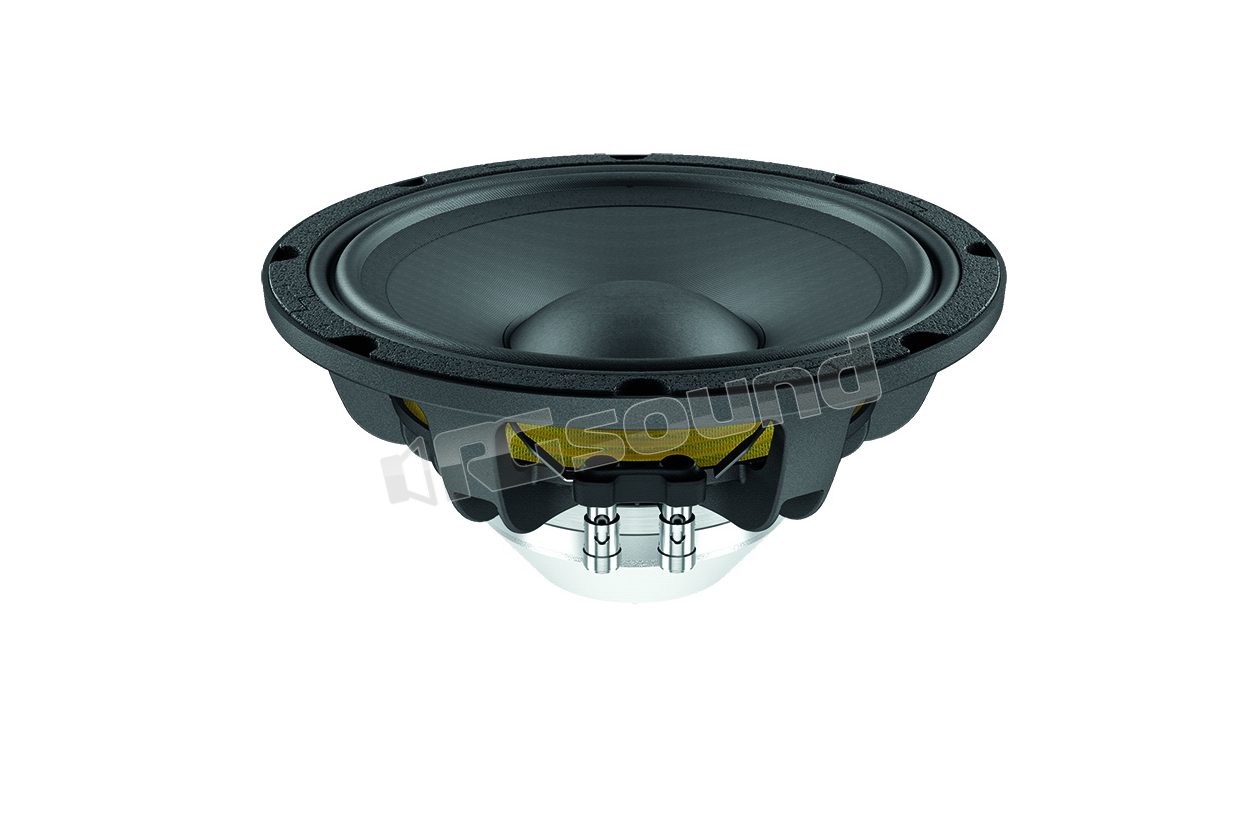

LaVoce WAN102.50LD 10"/250mm Woofer

Main features of the WAN102.50LD speaker

  • 2.5 inch copper voice coil
  • Sensitivity 92 db/spl
  • 600 watts program power handling
  • Very low distortion design
  • Optimized cooling system
  • Aluminum demodulating ring
  • FEM optimized motor and suspensions
  • Resonance-free and durable basket design

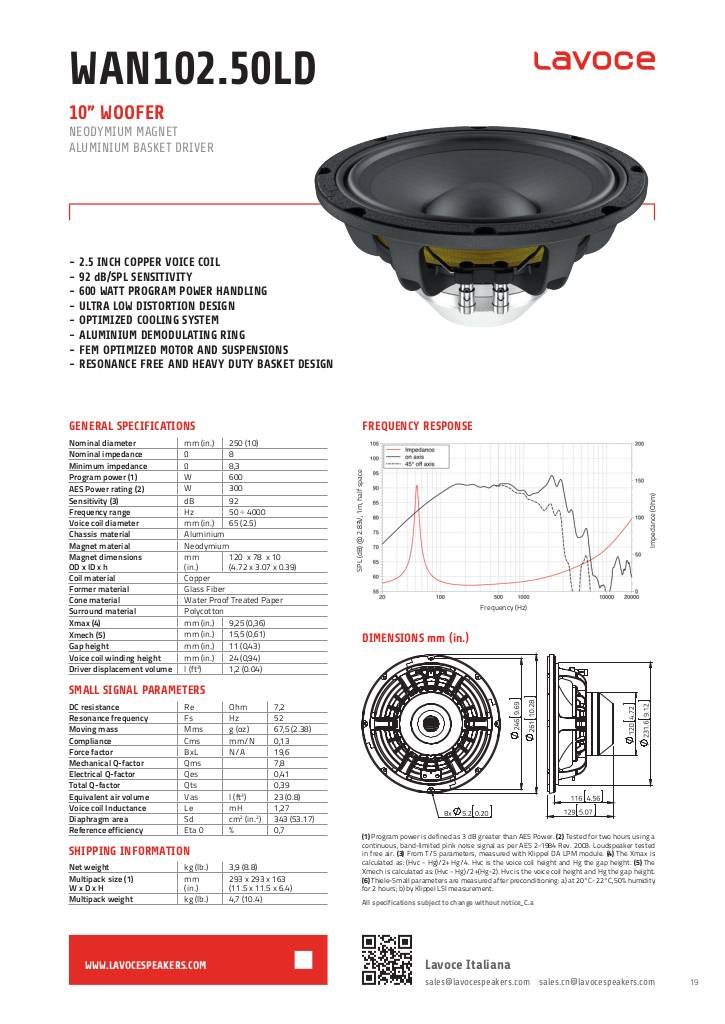

scheda tecnica

1549117586-wan10250ld-1.pdf

LaVoce WAN102.50LD Technical Specifications

  • Nominal diameter mm (in) 250 (10)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 8.3
  • Program power W 600
  • AES power W 300
  • Sensitivity dB 92
  • Frequency range Hz 55 ÷ 4000
  • Voice coil diameter mm (in) 65 (2.5)
  • Basket material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 120 x 78 x 10 (4.72 x 3.07 x 0.39)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 9.25 (0.36)
  • Xmech mm (in) 15.5 (0.61)
  • Gap height mm (in) 11 (0.43)
  • Voice coil winding height mm (in) 24 (0.94)
  • Driver displacement volume l (ft³) 1.2 (0.04)
  • DC resistance Ohm 7.2
  • Resonance frequency Hz 52
  • Moving mass g (oz) 67.5 (2.38)
  • Compliance mm/N 0.13
  • Force factor N/A 19.6
  • Mechanical Q factor 7.8
  • Electrical Q factor 0.41
  • Total Q factor 0.39
  • Equivalent air volume l (ft3) 23 (0.8)
  • Voice coil inductance mH 1.27
  • Diaphragm area cm2 (in.2) 343 (53.17)
  • Reference efficiency 0.7
  • Net weight kg (lb) 3.9 (8.8)
  • Multipack dimensions L x W x H 293 x 293 x 163 (11.5 x 11.5 x 6.4)
  • Multipack weight kg (lb) 4.7 (10.4)
