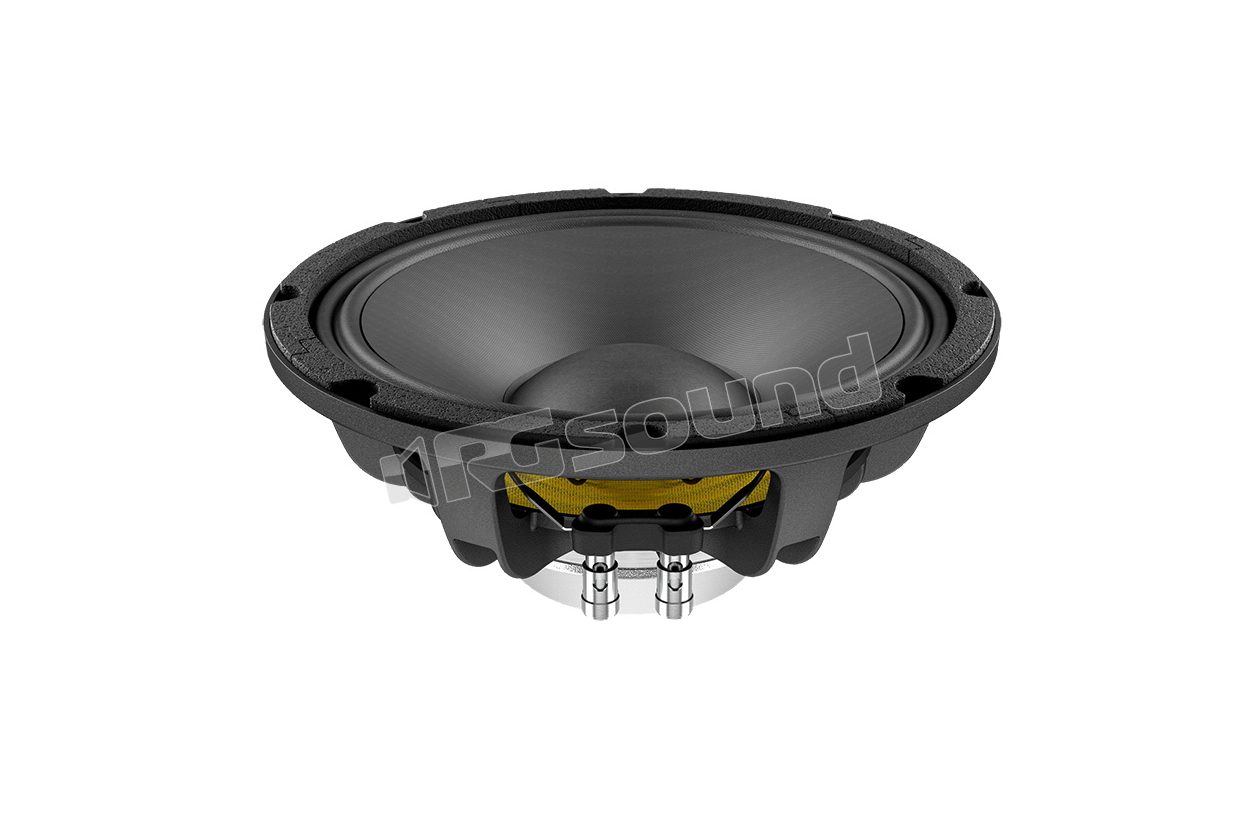

WAN102.50 10"/250mm Woofer

LaVoce
Your price:
€ 155,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
600 Watt
RMS Power
300 Watt
Frequency Response
80 - 4000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
2,8 Kg
Voice Coil Diameter
65 mm

LaVoce WAN102.50 10"/250mm Woofer

LaVoce code 70R10101

WAN102.50 Features

  • 2.5 inch CCAW voice coil
  • Sensitivity 97 db/spl
  • Power handling 600 watt program
  • Motor and suspensions optimized Fem
  • Optimized cooling system
  • Basket design resonance-free and resistant

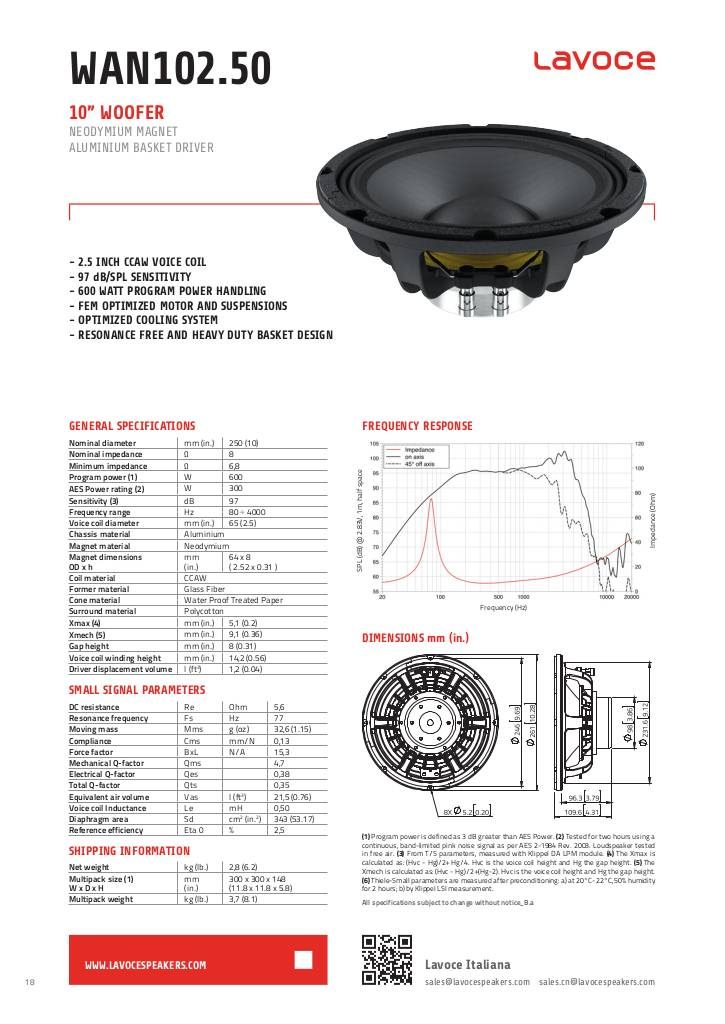

scheda tecnica

1549117593-wan10250-1.pdf

LaVoce WAN102.50 Technical Specifications

  • Nominal diameter mm (in) 250 (10)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.8
  • Program power W 600
  • AES power W 300
  • Sensitivity dB 97
  • Frequency range Hz 80 ÷ 4000
  • Voice coil diameter mm (in) 65 (2.5)
  • Frame material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 64 x 8 (2.52 x 0.31)
  • Coil material CCAW
  • Structure material Fiberglass
  • Cone material Treated paper water proof
  • Surround material Polycotton
  • Xmax mm (in) 5.1 (0.2)
  • Xmech mm (in) 9.1 (0.36)
  • Gap height mm (in) 8 (0.31)
  • Voice coil winding height mm (in) 14.2 (0.56)
  • Driver displacement volume l (ft³) 1.2 (0.04)
  • DC resistance Ohm 5.6
  • Resonance frequency Hz 77
  • Moving mass g (oz) 32.6 (1.15)
  • Compliance mm/N 0.13
  • Force factor N/A 15.3
  • Mechanical Q factor 4.7
  • Electrical Q factor 0.38
  • Total Q factor 0.35
  • Equivalent air volume l (ft3) 21.5 (0.76)
  • Voice coil inductance mH 0.5
  • Diaphragm area cm2 (in.2) 343 (53.17)
  • Reference efficiency 2.5
  • Net weight kg (lb) 2.8 (6.2)
  • Multipack dimensions L x W x H 300 x 300 x 148 (11.8 x 11.8 x 5.8)
  • Multipack weight kg (lb) 3.7 (8.1)
€ 155,50 Price incl. VAT
