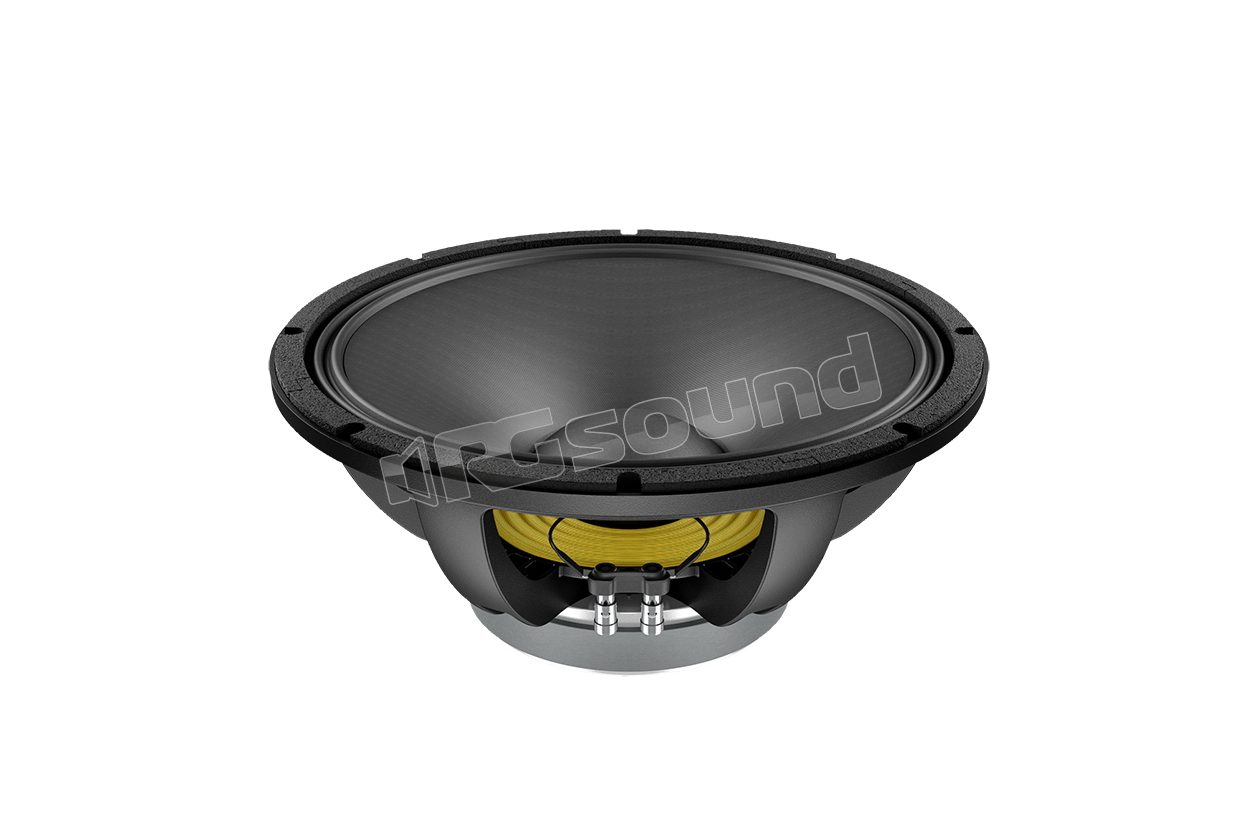

WAF153.00 15"/380mm Woofer

LaVoce
Your price:
€ 194,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
40 - 3000 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
9,40 Kg
Voice Coil Diameter
75 mm

LaVoce WAF153.00 15"/380mm Woofer



LaVoce code 70R10150

WAF153.00 Features

  • 3 inch CCAW voice coil
  • Sensitivity 99 db/spl
  • Power handling 1000 watt program
  • Motor and suspensions optimized Fem
  • Optimized cooling system
  • Resonance-free and resistant basket design

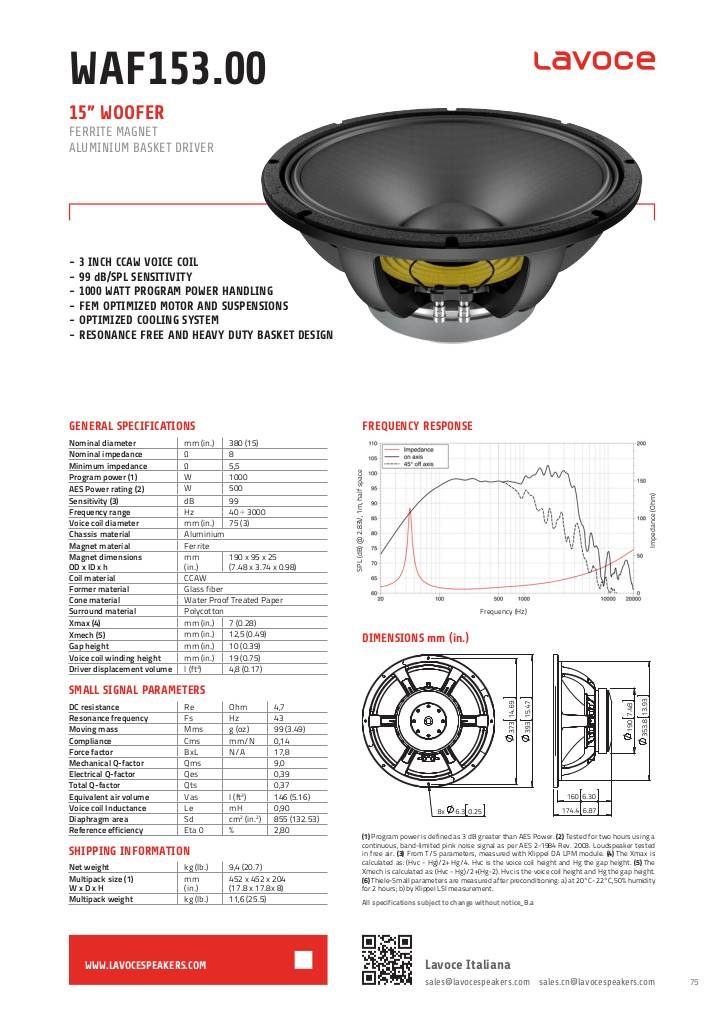

scheda tecnica

1549117299-waf15300-1.pdf

LaVoce WAF153.00 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.5
  • Program power W 1000
  • AES power W 500
  • Sensitivity dB 99
  • Frequency range Hz 40 ÷ 3000
  • Voice coil diameter mm (in) 75 (3)
  • Frame material Aluminum
  • Magnet material Ferrite
  • Magnet size OD x ID x h mm (in) 190 x 95 x 25 (7.48 x 3.74 x 0.98)
  • Coil material CCAW
  • Forming material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 7 (0.28)
  • Xmech mm (in) 12.5 (0.49)
  • Gap height mm (in) 10 (0.39)
  • Voice coil winding height mm (in) 19 (0.75)
  • Driver displacement volume l (ft³) 4.8 (0.17)
  • DC resistance Ohm 4.7
  • Resonance frequency Hz 43
  • Moving mass g (oz) 99 (3.49)
  • Compliance mm/N 0.14
  • Force factor N/A 17.8
  • Mechanical Q factor 9.0
  • Electrical Q factor 0.39
  • Total Q factor 0.37
  • Equivalent air volume l (ft3) 146 (5.16)
  • Voice coil inductance mH 0.90
  • Diaphragm area cm2 (in.2) 855 (132.53)
  • Reference efficiency 2.80%
  • Net weight kg (lb) 9.40 (20.7)
  • Multipack size L x W x H mm x mm x mm (in x in x in) 452 x 452 x 204 (17.8 x 17.8 x 8)
  • Multipack weight kg (lb) 11.6 (25.5)
€ 194,00 Price incl. VAT
