WAF124.02 12" 8 Ohm woofer with ferrite magnet and steel basket

LaVoce
Your price:
€ 210,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
1.200 Watt
RMS Power
600 Watt
Frequency Response
50 - 2.500 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
11,7 Kg
Installation Depth
118,3 mm
Voice Coil Diameter
100 mm

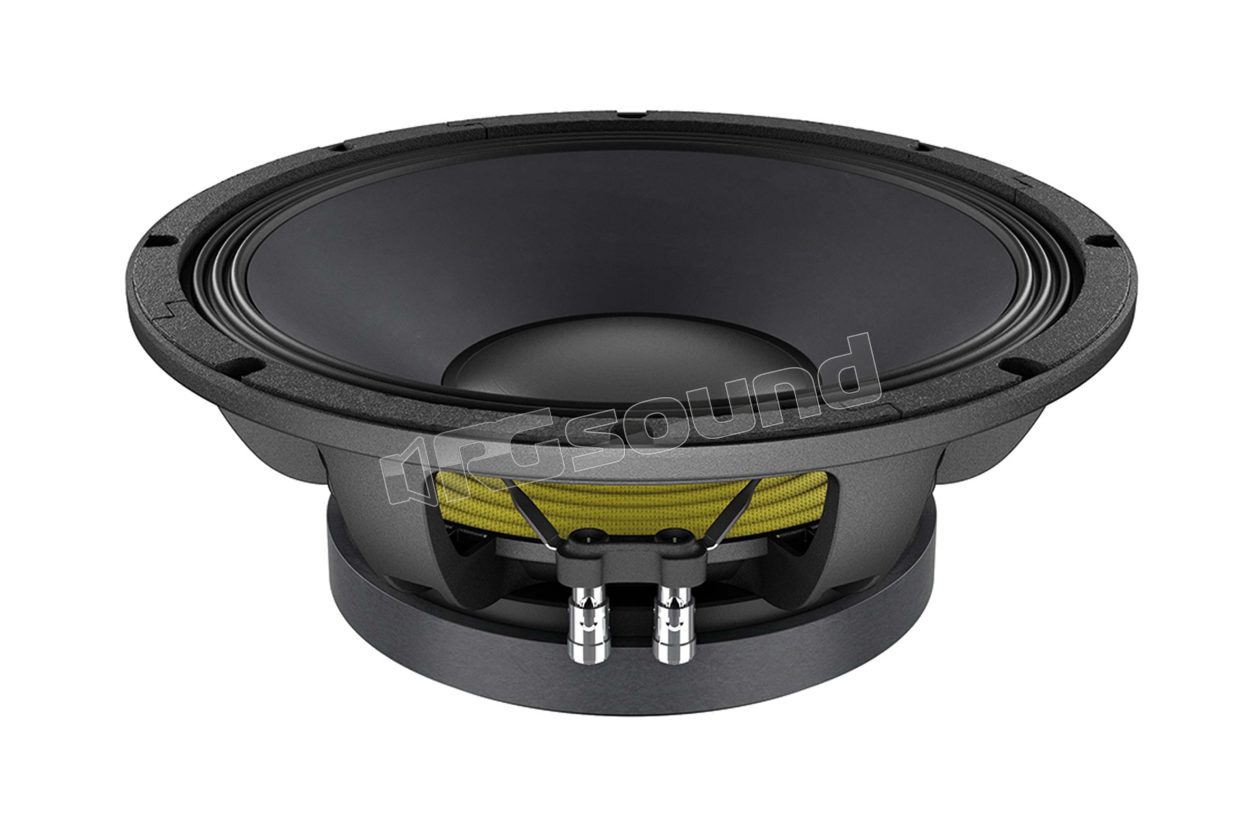

LaVoce WAF124.02 12" Woofer at 8 Ohm with ferrite magnet and steel basket

WAF124.02 Features

  • 4" voice coil
  • Sensitivity 97 dB SPL
  • Optimized cooling system
  • Robust anti-resonance basket
  • Aluminum demodulation ring
  • Triple surround

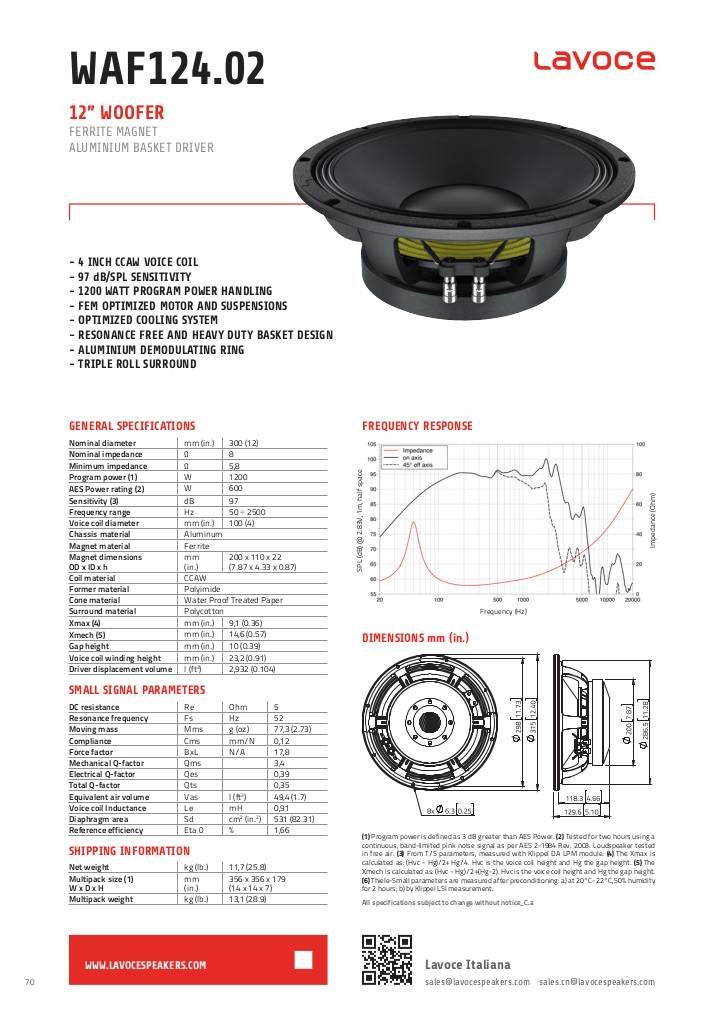

Scheda tecnica

n-20190717104520-1548252377-lavoce-waf124-02-12in-woofer.pdf

LaVoce WAF124.02 Technical Specifications

  • Nominal diameter 300 mm (12")
  • Nominal impedance 8 Ohm
  • Minimum impedance 5.8 Ohm
  • Maximum power W 1.200
  • Nominal power W 600
  • Sensitivity dB 97
  • Frequency range Hz 50 ÷ 2.500
  • Voice coil 100 mm (4")
  • Mounting hole diameter 286.5 mm
  • Mounting depth 118.3 mm
  • Weight 11.7 Kg
€ 210,20 Price incl. VAT
