WAF123.02 12"/300mm Woofer

LaVoce
Your price:
€ 174,80
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
45 - 3000 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
8,9 Kg
Voice Coil Diameter
75 mm

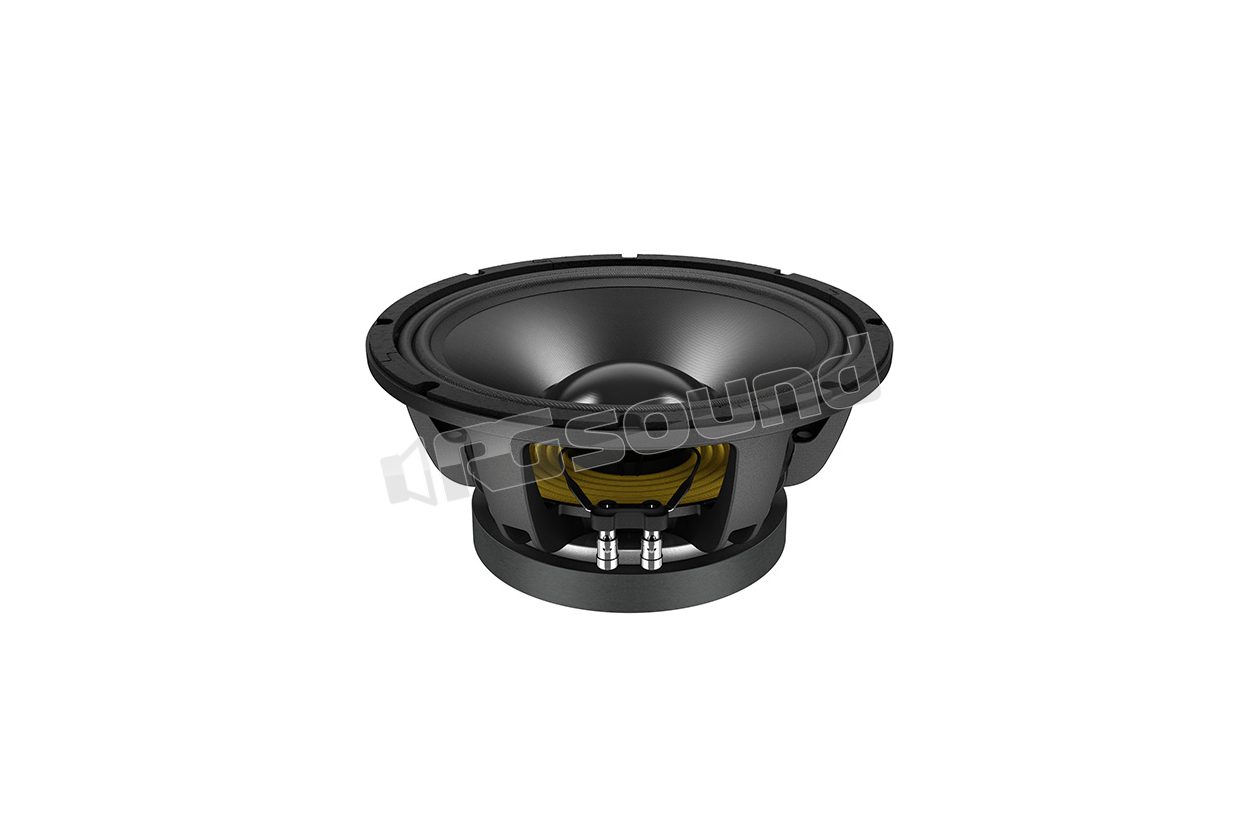

LaVoce WAF123.02 12"/300mm Woofer

LaVoce code 70R10126

WAF123.02 Features

  • 3 inch voice coil in CCAW
  • Sensitivity 99 db/spl
  • Power handling 1000 watt program
  • Motor and suspensions optimized FEM
  • Optimized cooling system
  • Basket design free of resonances and resistant
  • Aluminum demodulating ring

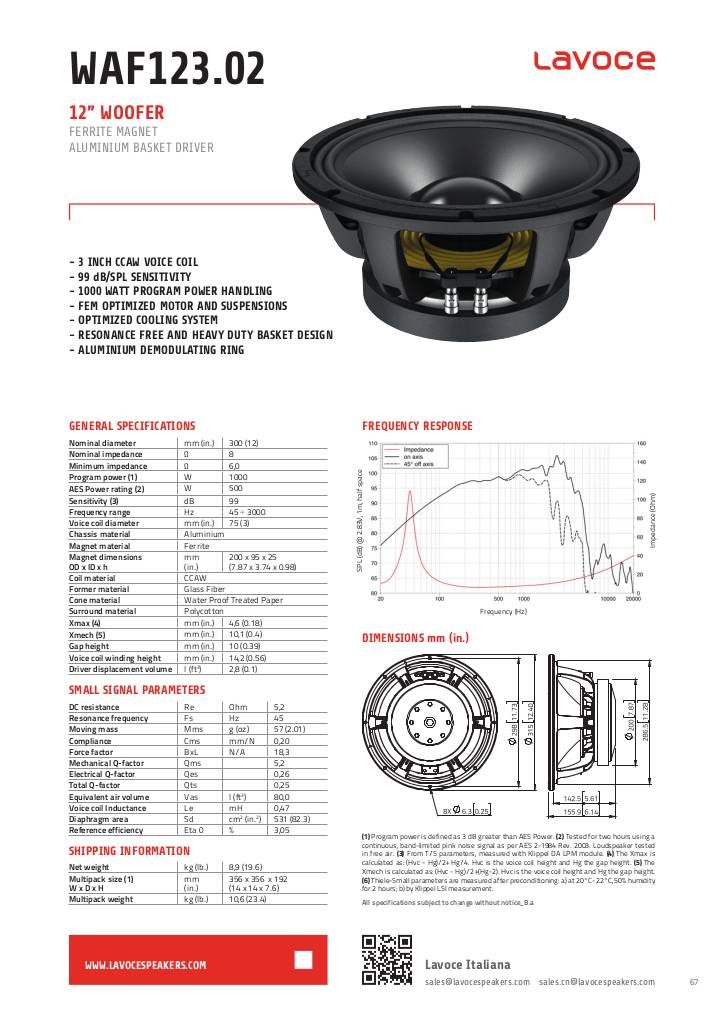

scheda tecnica

1549117143-waf12302-1.pdf

LaVoce WAF123.02 Technical Specifications

  • Nominal diameter mm (in) 300 (12)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6
  • Program power W 1000
  • AES power W 500
  • Sensitivity dB 99
  • Frequency range Hz 45 ÷ 3000
  • Voice coil diameter mm (in) 75 (3)
  • Frame material Aluminum
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 200 x 95 x 25 (7.87 x 3.74 x 0.98)
  • Coil material CCAW
  • Forming material Fiberglass
  • Cone material Waterproof treated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.6 (0.18)
  • Xmech mm (in) 10.1 (0.4)
  • Gap height mm (in) 10 (0.39)
  • Voice coil winding height mm (in) 14.2 (0.56)
  • Driver displacement volume l (ft³) 2.8 (0.1)
  • DC resistance Ohm 5.2
  • Resonance frequency Hz 45
  • Moving mass g (oz) 57 (2.01)
  • Compliance mm/N 0.2
  • Force factor N/A 18.3
  • Mechanical Q factor 5.2
  • Electrical Q factor 0.26
  • Total Q factor 0.25
  • Equivalent air volume l (ft3) 80
  • Voice coil inductance mH 0.47
  • Diaphragm area cm2 (in.2) 531 (82.3)
  • Reference efficiency 3.05
  • Net weight kg (lb) 8.9 (19.6)
  • Multipack dimensions L x W x H 356 x 356 x 192 (14 x 14 x 7.6)
  • Multipack weight kg (lb) 10.6 (23.4)
€ 174,80 Price incl. VAT
