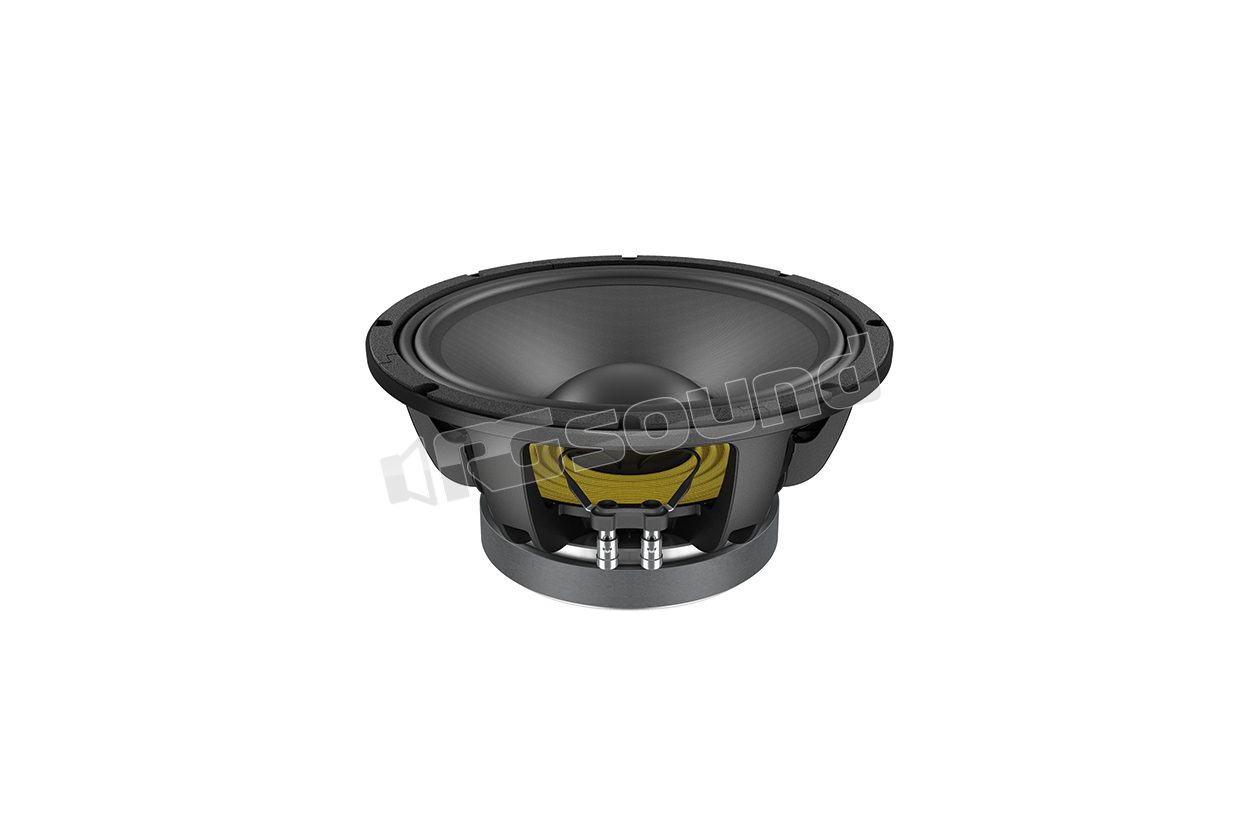

WAF123.01 12"/300mm Woofer

LaVoce
Your price:
€ 157,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
65 - 3000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
8,6 Kg

LaVoce WAF123.01 12"/300mm Woofer

Main features of the WAF123.01 speaker

  • 3 inch CCAW voice coil
  • Sensitivity 98 db/spl
  • Program power handling of 1000 watts
  • FEM optimized motor and suspensions
  • Optimized cooling system
  • Resonance-free and resistant basket design
  • Aluminum demodulating ring

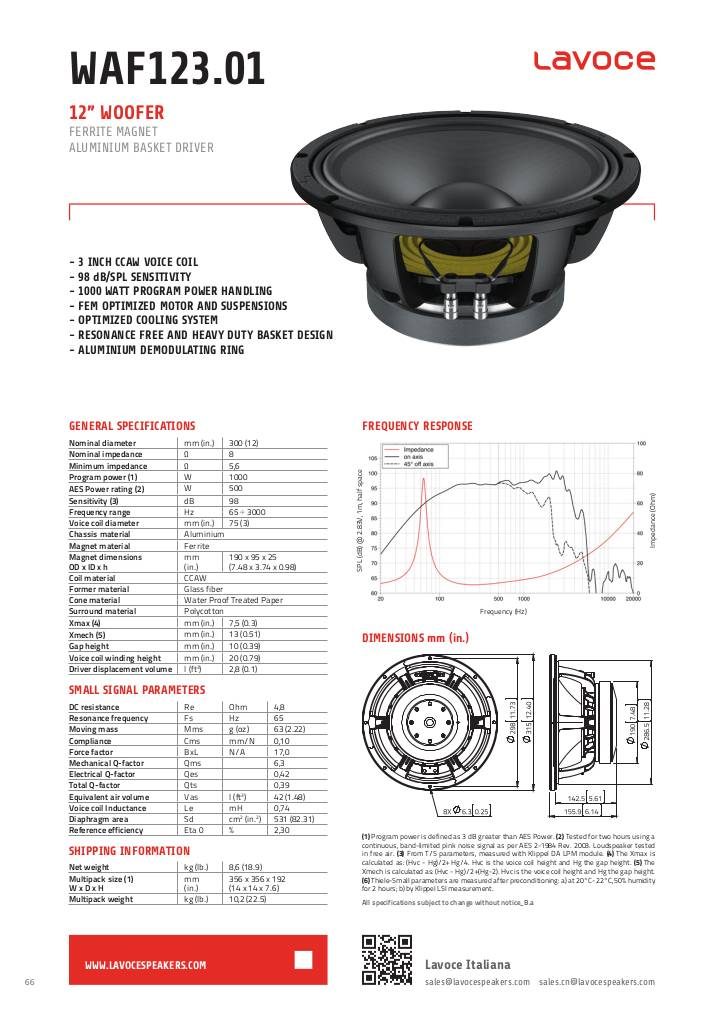

scheda tecnica

1549117043-waf12301-1.pdf

LaVoce WAF123.01 Technical specifications

  • Nominal diameter mm (in) 300 (12)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 5.6
  • Program power W 1000
  • AES power W 500
  • Sensitivity dB 98
  • Frequency range Hz 65 ÷ 3000
  • Voice coil diameter mm (in) 75 (3)
  • Frame material Aluminum
  • Magnet material Ferrite
  • Magnet size OD x ID x h mm (in) 190 x 95 x 25 (7.48 x 3.74 x 0.98)
  • Coil material CCAW
  • Forming material Fiberglass
  • Cone material Untreated paper waterproof treated
  • Surround material Polycotton
  • Xmax mm (in) 7.5 (0.3)
  • Xmech mm (in) 13 (0.51)
  • Gap height mm (in) 10 (0.39)
  • Voice coil winding height mm (in) 20 (0.79)
  • Driver displacement volume l (ft³) 2.8 (0.1)
  • DC resistance Ohm 4.8
  • Resonance frequency Hz 65
  • Moving mass g (oz) 63 (2.22)
  • Compliance mm/N 0.10
  • Force factor N/A 17
  • Mechanical Q factor 6.3
  • Electrical Q factor 0.42
  • Total Q factor 0.39
  • Equivalent air volume l (ft3) 42 (1.48)
  • Voice coil inductance mH 0.74
  • Diaphragm area cm2 (in.2) 531 (82.31)
  • Reference efficiency 2.3%
  • Net weight kg (lb) 8.6 (18.9)
  • Multipack dimensions L x W x H 356 x 356 x 192 (14 x 14 x 7.6)
  • Multipack weight kg (lb) 10.2 (22.5)
€ 157,10 Price incl. VAT
