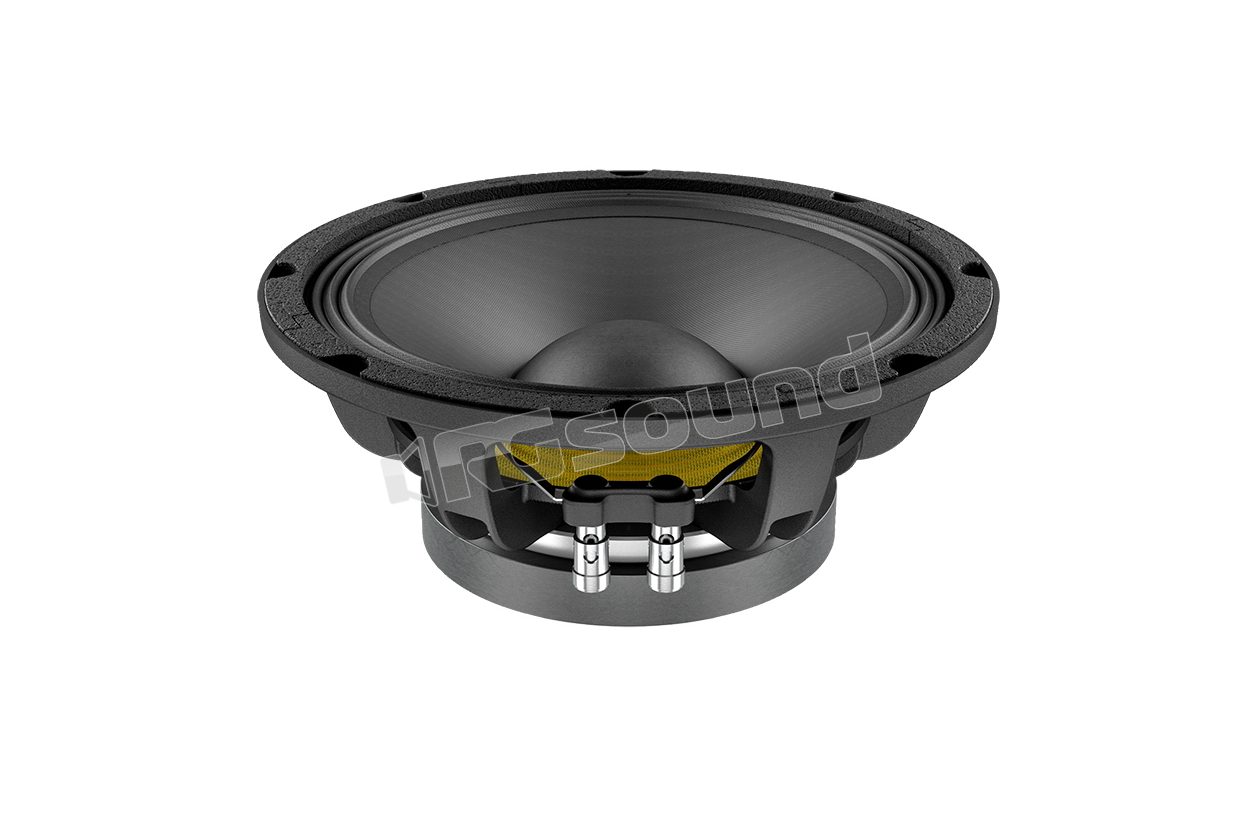

WAF102.51 10"/250mm Woofer

LaVoce
Your price:
€ 111,70
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
700 Watt
RMS Power
350 Watt
Frequency Response
60 - 400 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
5,7 Kg
Voice Coil Diameter
65 mm

LaVoce WAF102.51 10"/250mm Woofer

LaVoce code 70R10107

WAF102.51 Features

  • 2.5 inch CCAW voice coil
  • Sensitivity 96 db/spl
  • Program power handling 700 watt
  • FEM optimized motor and suspension
  • Optimized cooling system
  • Aluminum demodulating ring
  • Triple roll suspension
  • Resonance-free and durable basket design

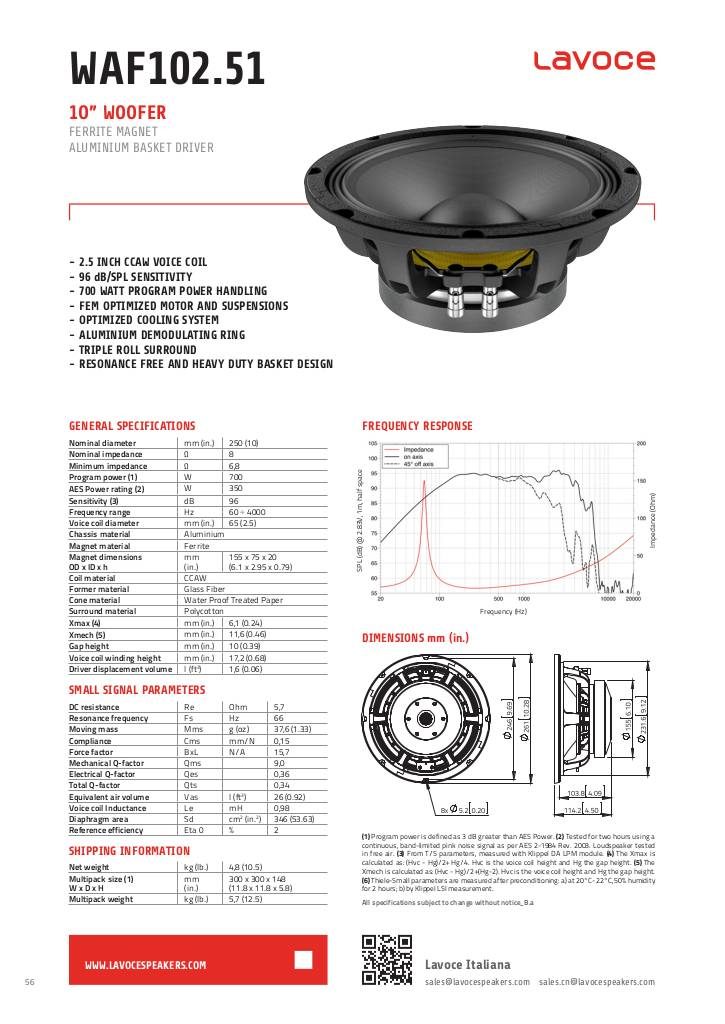

scheda tecnica

1549117110-waf10251-1.pdf

LaVoce WAF102.51 Technical Specifications

  • Nominal diameter mm (in) 250 (10)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.8
  • Program power W 700
  • AES power W 350
  • Sensitivity dB 96
  • Frequency range Hz 60 ÷ 4000
  • Voice coil diameter mm (in) 65 (2.5)
  • Frame material Aluminum
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 155 x 75 x 20 (6.1 x 2.95 x 0.79)
  • Voice coil material CCAW
  • Surround material Fiberglass
  • Cone material Water-resistant treated paper
  • Edge material Polycotton
  • Xmax mm (in) 6.1 (0.24)
  • Xmech mm (in) 11.6 (0.46)
  • Gap height mm (in) 10 (0.39)
  • Voice coil winding height mm (in) 17.2 (0.68)
  • Driver displacement volume l (ft³) 1.6 (0.06)
  • DC resistance Ohm 5.7
  • Resonance frequency Hz 66
  • Moving mass g (oz) 37.6 (1.33)
  • Compliance mm/N 0.15
  • Force factor N/A 15.7
  • Mechanical Q factor 9.0
  • Electrical Q factor 0.36
  • Total Q factor 0.34
  • Equivalent air volume l (ft3) 26 (0.92)
  • Voice coil inductance mH 0.98
  • Diaphragm area cm2 (in.2) 346 (53.63)
  • Reference efficiency 2%
  • Net weight kg (lb) 4.8 (10.5)
  • Multipack dimensions L x W x H 300 x 300 x 148 (11.8 x 11.8 x 5.8)
  • Multipack weight kg (lb) 5.7 (12.5)
