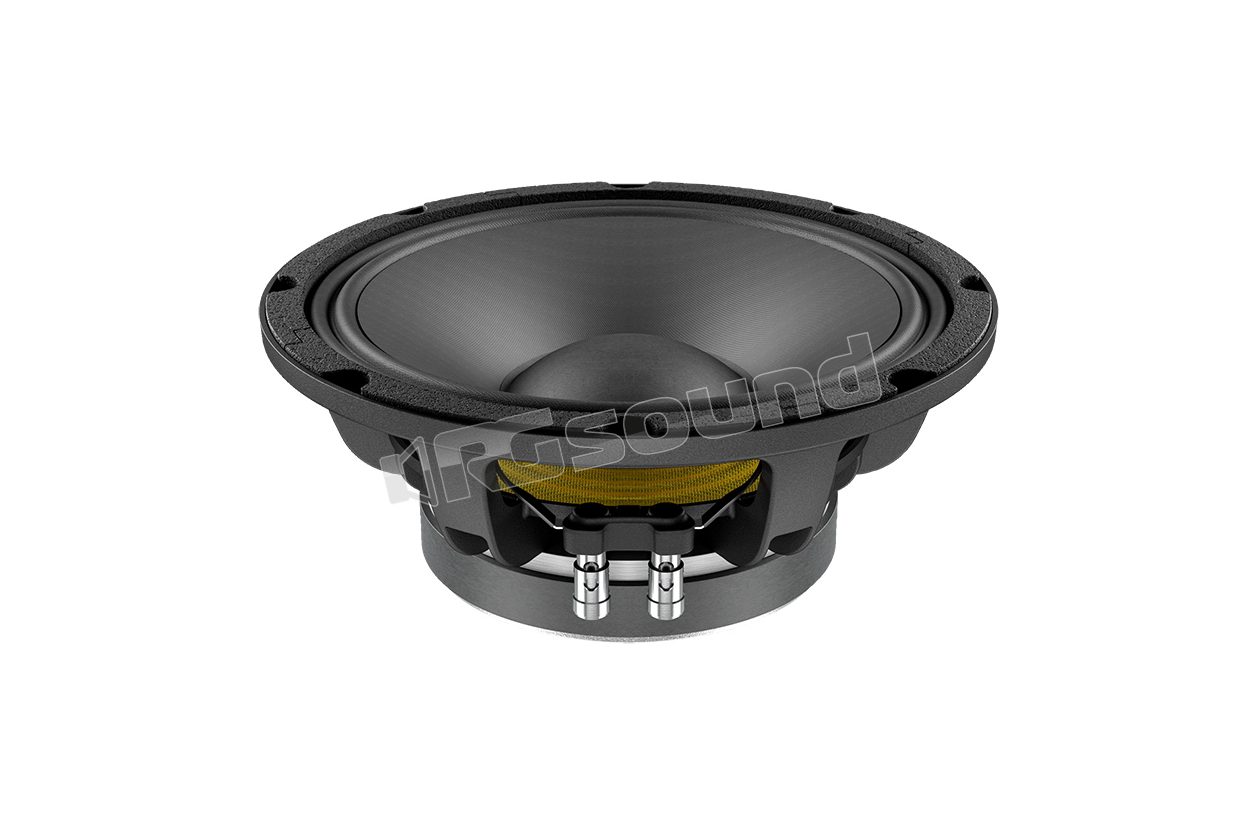

WAF102.50 10"/250mm woofer

LaVoce
Your price:
€ 103,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
70 - 4000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
4,8 Kg
Voice Coil Diameter
65 mm

LaVoce WAF102.50 10"/250mm Woofer

LaVoce code 70R10100

WAF102.50 Features

  • 2.5 inch CCAW voice coil
  • Sensitivity 97 db/spl
  • Program power handling 500 watts
  • FEM optimized motor and suspensions
  • Optimized cooling system
  • Resonance-free and resistant basket design

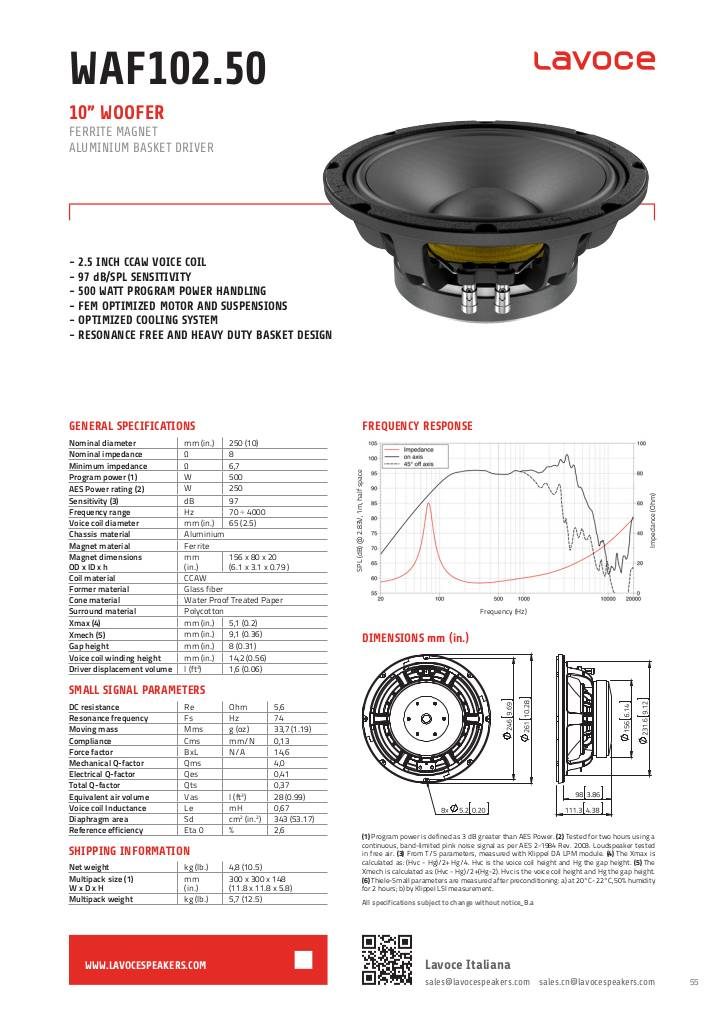

scheda tecnica

1549117021-waf10250-1.pdf

LaVoce WAF102.50 Technical Specifications

  • Nominal diameter mm (in) 250 (10)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.7
  • Program power W 500
  • AES power W 250
  • Sensitivity dB 97
  • Frequency range Hz 70 ÷ 4000
  • Voice coil diameter mm (in) 65 (2.5)
  • Frame material Aluminum
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 156 x 80 x 20 (6.1 x 3.1 x 0.79)
  • Coil material CCAW
  • Former material Fiberglass
  • Cone material Water resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 5.1 (0.2)
  • Xmech mm (in) 9.1 (0.36)
  • Gap height mm (in) 8 (0.31)
  • Voice coil winding height mm (in) 14.2 (0.56)
  • Driver displacement volume l (ft³) 1.6 (0.06)
  • DC resistance Ohm 5.6
  • Resonance frequency Hz 74
  • Moving mass g (oz) 33.7 (1.19)
  • Compliance mm/N 0.13
  • Force factor N/A 14.6
  • Mechanical Q factor 4.0
  • Electrical Q factor 0.41
  • Total Q factor 0.37
  • Equivalent air volume l (ft3) 28 (0.99)
  • Voice coil inductance mH 0.67
  • Diaphragm area cm2 (in.2) 350 (54.25)
  • Reference efficiency 2.6
  • Net weight kg (lb) 4.8 (10.5)
  • Multipack dimensions L x W x H 300 x 300 x 148 (11.8 x 11.8 x 5.8)
  • Multipack weight kg (lb) 5.7 (12.5)
€ 103,20 Price incl. VAT
