WAF082.00 8"/200mm Woofer

LaVoce
Your price:
€ 86,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
80 - 3000 Hertz
Sensitivity
95,5 dB
Impedance
8 Ohm
Weight
4 Kg
Voice Coil Diameter
51 mm

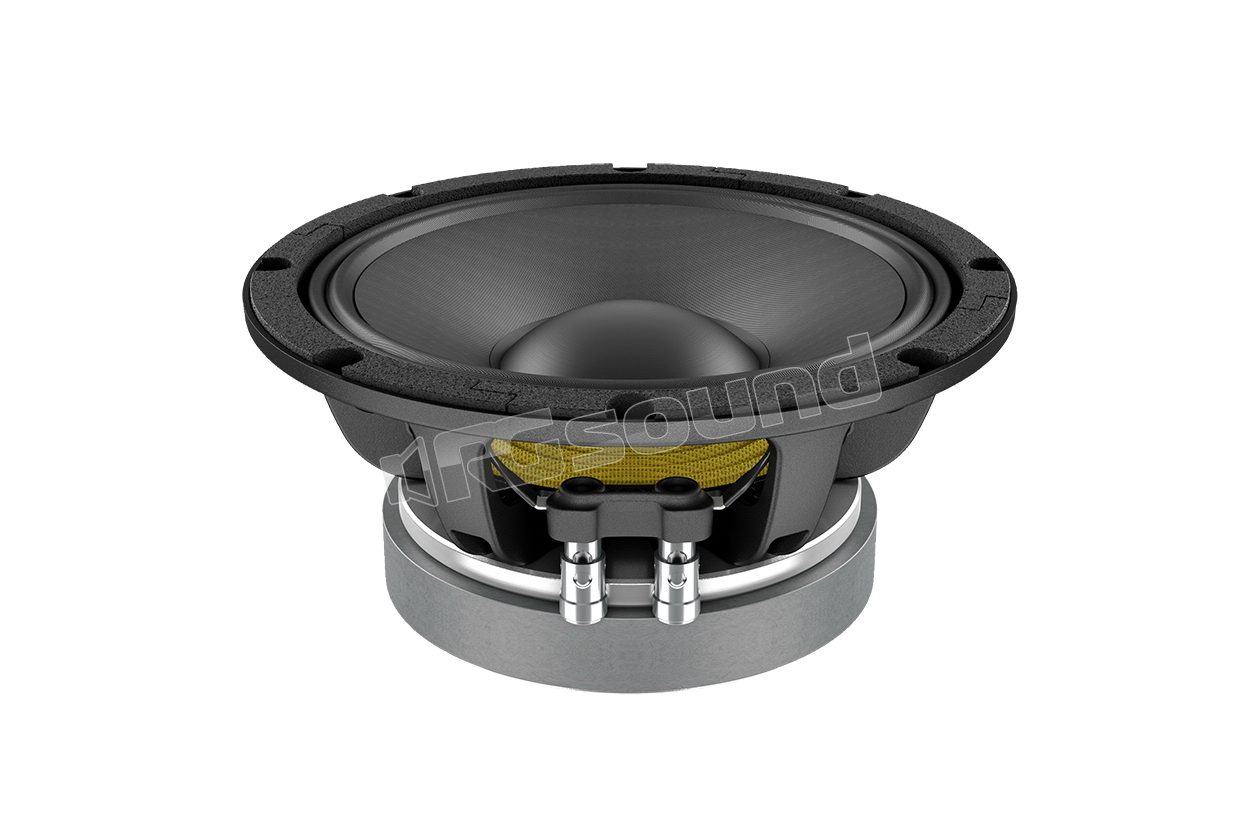

LaVoce WAF082.00 8"/200mm Woofer

LaVoce code 70R10080

WAF082.00 Features

  • 2 inch CCAW voice coil
  • Sensitivity 95.5 db/spl
  • Program power handling of 400 watt
  • FEM optimized motor and suspensions
  • Optimized cooling system
  • Copper ring for extended frequency response
  • Resonance-free and durable basket design

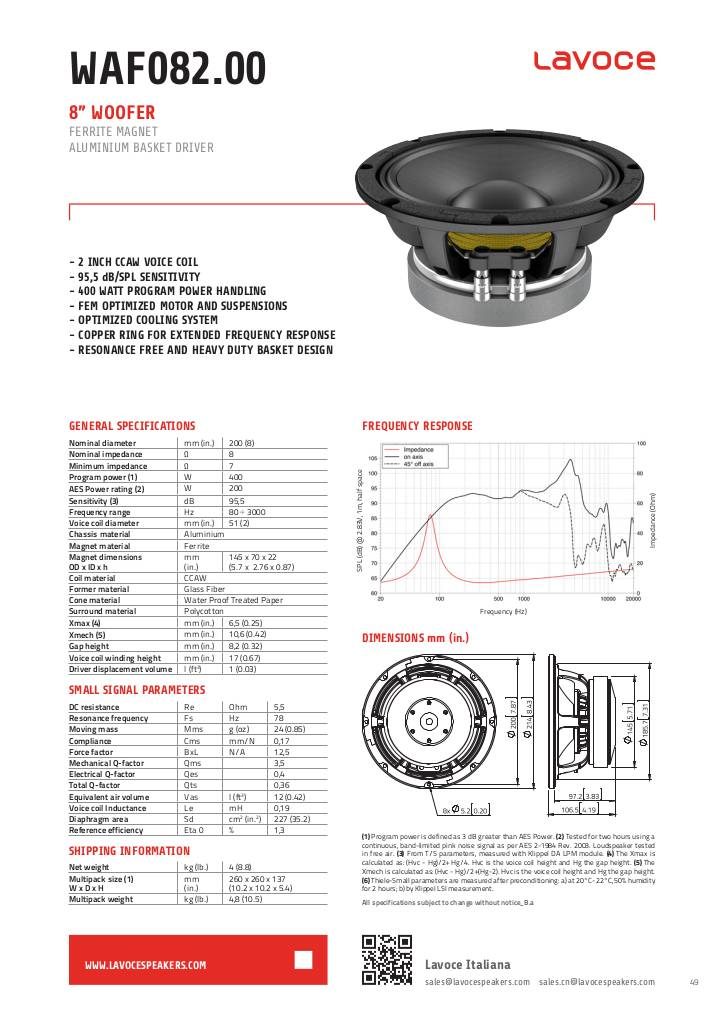

scheda tecnica

1549117569-waf08200-1.pdf

LaVoce WAF082.00 Technical Specifications

  • Nominal diameter mm (in) 200 (8)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7
  • Program power W 400
  • AES power W 200
  • Sensitivity dB 95.5
  • Frequency range Hz 80 ÷ 3000
  • Voice coil diameter mm (in) 51 (2)
  • Frame material Aluminum
  • Magnet material Ferrite
  • Magnet size OD x ID x h mm (in) 145 x 70 x 22 (5.7 x 2.76 x 0.87)
  • Coil material CCAW
  • Surround material Fiberglass
  • Cone material Water-resistant treated paper
  • Dust cap material Polycotton
  • Xmax mm (in) 6.5 (0.25)
  • Xmech mm (in) 10.6 (0.42)
  • Gap height mm (in) 8.2 (0.32)
  • Voice coil winding height mm (in) 17 (0.67)
  • Driver displacement volume l (ft³) 1 (0.03)
  • DC resistance Ohm 5.5
  • Resonance frequency Hz 78
  • Moving mass g (oz) 24 (0.85)
  • Compliance mm/N 0.17
  • Force factor N/A 12.5
  • Mechanical Q factor 3.5
  • Electrical Q factor 0.4
  • Total Q factor 0.36
  • Equivalent air volume l (ft3) 12 (0.42)
  • Voice coil inductance mH 0.19
  • Diaphragm area cm2 (in.2) 227 (35.2)
  • Reference efficiency 1.3
  • Net weight kg (lb) 4 (8.8)
  • Multipack dimensions L x W x H 260 x 260 x 137 (10.2 x 10.2 x 5.4)
  • Multipack weight kg (lb) 4.8 (10.5)
€ 86,20 Price incl. VAT
