W6 165 mm fiberglass midwoofer

AD Audio Development
Your price:
€ 173,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
RMS Power
60 Watt
Frequency Response
50 - 4000 Hertz
Sensitivity
90 dB
Impedance
3 Ohm
Installation Depth
60 mm
Woofer Material
Fibreglass

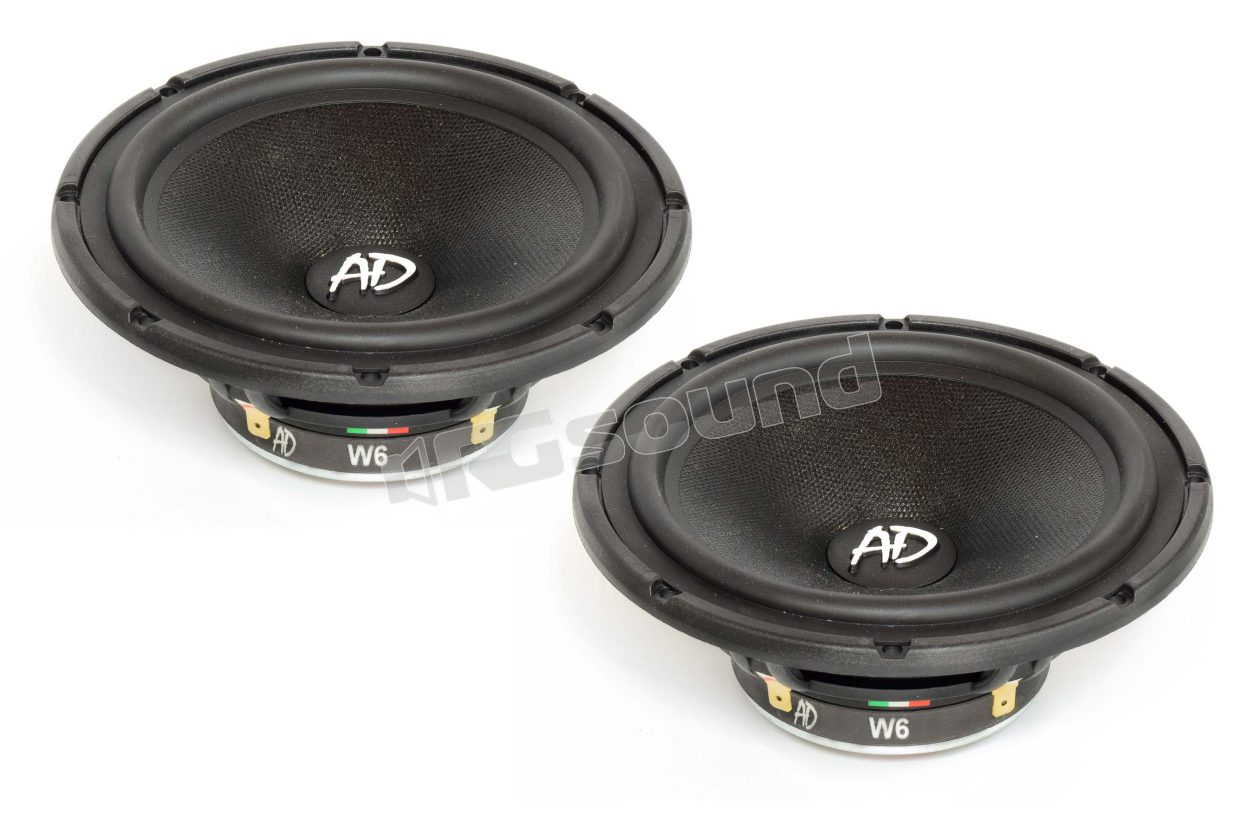

AD Audio Development W6 Midwoofer 165 mm in fiberglass

The AD Audio Development W6 midwoofer is a 165 mm speaker designed to offer balanced and powerful sound reproduction, perfect for high-level two-way audio systems.

Natural evolution of the 130 mm model, the W6 further improves the extension in the low range, without compromising precision in the mids. The fiberglass cone with rubber surround guarantees optimal rigidity and damping, while the 26 mm OFC copper coil on aluminum support ensures fast and efficient response. The PPO basket reinforced with fiberglass is designed to reduce unwanted resonances.

The ABS dust cap, calibrated in weight and size, helps optimize the moving mass (Mms). This component finds its best application when paired with the AD T10 or T100 tweeters, forming two-way systems with a modern or more refined character. With surprising performance even without a 16 cm, the W6 is the ideal choice for those who want the maximum in terms of fidelity and dynamics.


W6 Features

  • 165 mm midwoofer designed for high-quality two-way systems

  • Fiberglass cone with rubber surround for rigidity and control

  • OFC copper coil on 26 mm aluminum support

  • PPO basket reinforced with fiberglass for resonance reduction

  • ABS dust cap, optimized to balance the moving mass

  • Excellent low-range extension and ideal coupling with T10 or T100 tweeters

  • Excellent performance even without the use of a 16 cm woofer

Why choose AD

All AD Audio Development products are handcrafted in Italy. Each component is hand-built by industry experts, using the highest quality materials and advanced technologies to guarantee exceptional sound performance and reliability over time.

The brand's philosophy is based on production that allows for rigorous quality control and constructive care that is rarely found in industrial products. AD components can be compared, for performance and construction, to higher-end models, often sold at significantly higher prices.

Choosing AD Audio Development means buying a handcrafted hi-fi product, 100% made in Italy, with an unbeatable price-to-performance ratio for those seeking maximum performance without compromise.

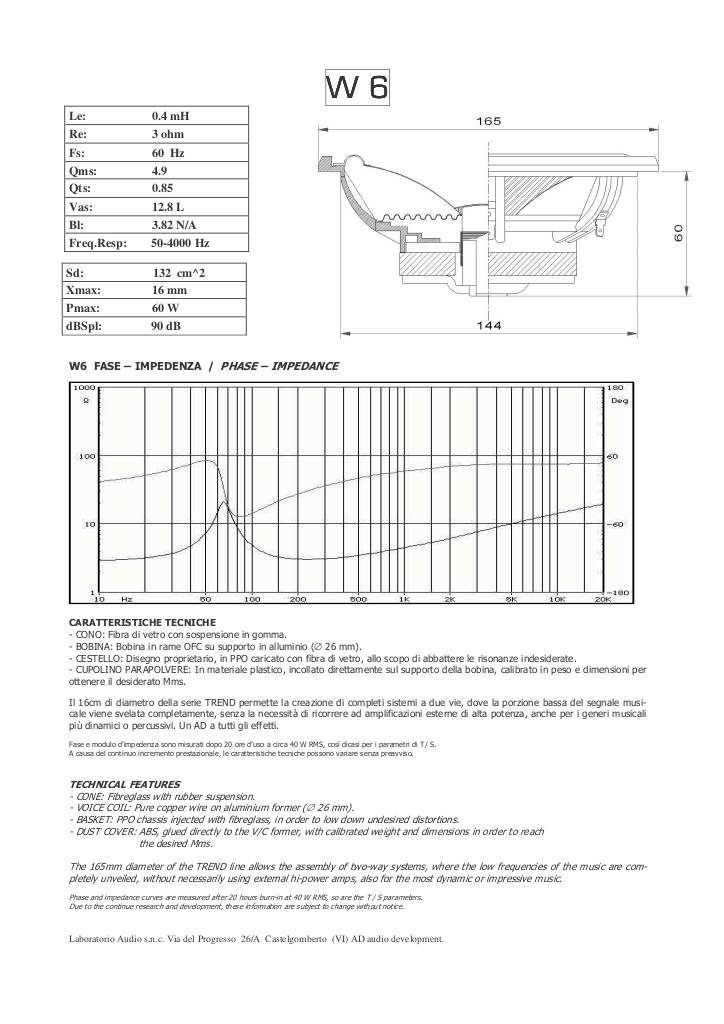

Scheda tecnica

n-20161117143939-w6-ita-sm.pdf

AD Audio Development W6 Technical Specifications

  • Diameter: 165 mm
  • RMS Power: 50 W
  • Maximum Power: 100 W
  • Frequency Response: 75 - 6,500 Hz
  • Sensitivity: 90 dB
  • Impedance: 3 Ohm
  • Installation Depth: 55 mm
  • Mounting Hole Diameter: 143 mm
  • Weight (single): 0.56 kg
  • Le: 0.4 mH
  • Re: 3 Ohm
  • Fs: 60 Hz
  • Qms: 4.9
  • Qts: 0.85
  • Vas: 12.8 Liter
  • Bl: 3.82
  • Sd: 132 cm²
  • Xmax: 16 mm
  • Pmax: 60 W
  • dBSpl: 90 dB
€ 173,00 Price incl. VAT
