TPL-150/H

Beyma
Your price:
€ 625,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Compression tweeter
Speaker Size
Other sizes
MAX Power
160 Watt
RMS Power
80 Watt
Frequency Response
700 - 23.000 Hertz
Sensitivity
102 dB
Impedance
8 Ohm
Weight
2,9 Kg

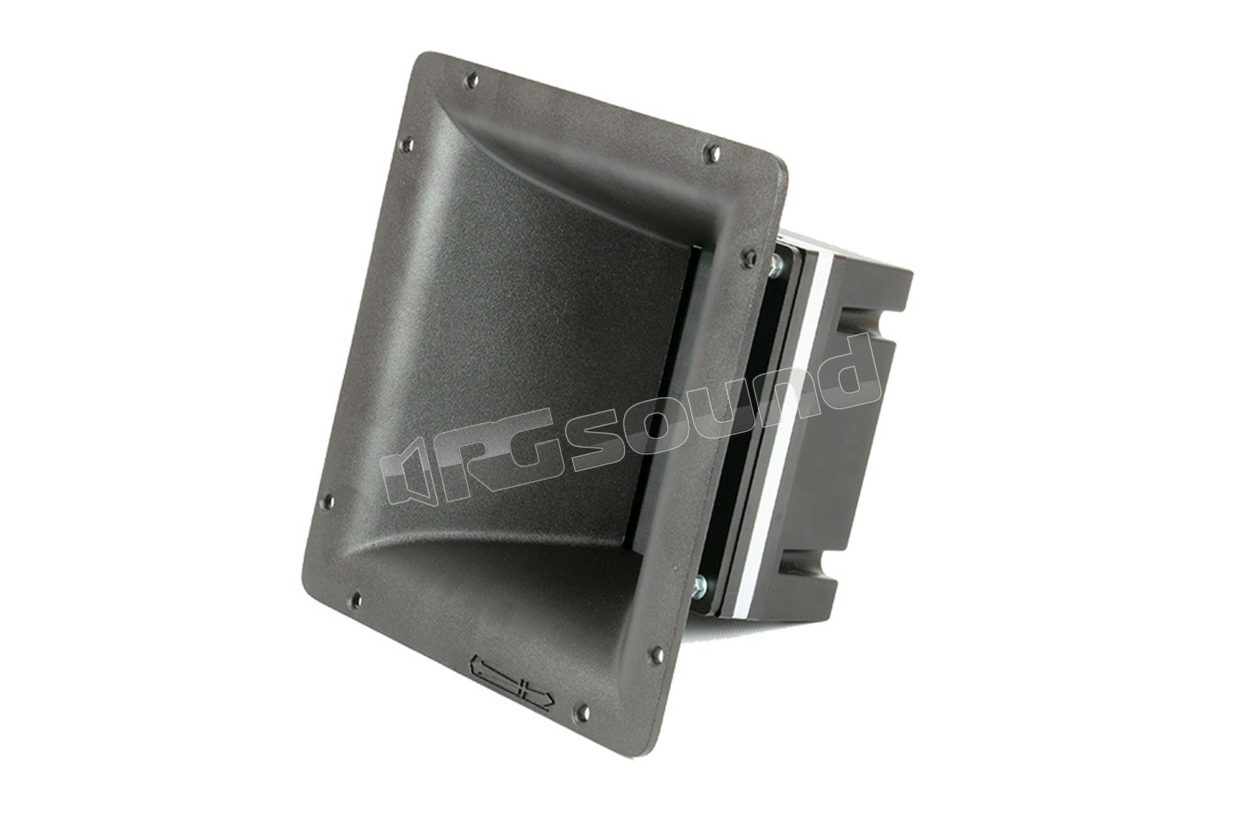

Beyma TPL-150/H compression tweeter

Nominal impedance 8 Ohm
Power handling 80 W AES above 1 kHz
Program power 160 W above 1 kHz
Sensitivity 102 dB 1 W @ 1 m
Frequency range 700-23000 Hz
Recom. crossover frequency 1 kHz or higher (minimum slope 12 dB / oct.)
Horizontal beam width 80º (+ 9º -20º) // (-6 dB 1.2 - 16 kHz)
Vertical beam width 30º (+ 27º -21º) // (-6 dB 1.2 - 16 kHz)
Directivity factor (Q) 27 (average / average 1.2 - 16 kHz)
Directivity index (DI) 13 dB (+6 dB -4.5)
Diaphragm material: Kapton
Overall dimensions 230x230x148 mm 9.05x9.05x5.8 in
Net weight 2.9 kg 6.39 pounds
Total weight 3.25 kg 7.15 pounds
Neodymium magnet
Deflector cutout dimensions
195x195 mm 7.68x7.68 inches

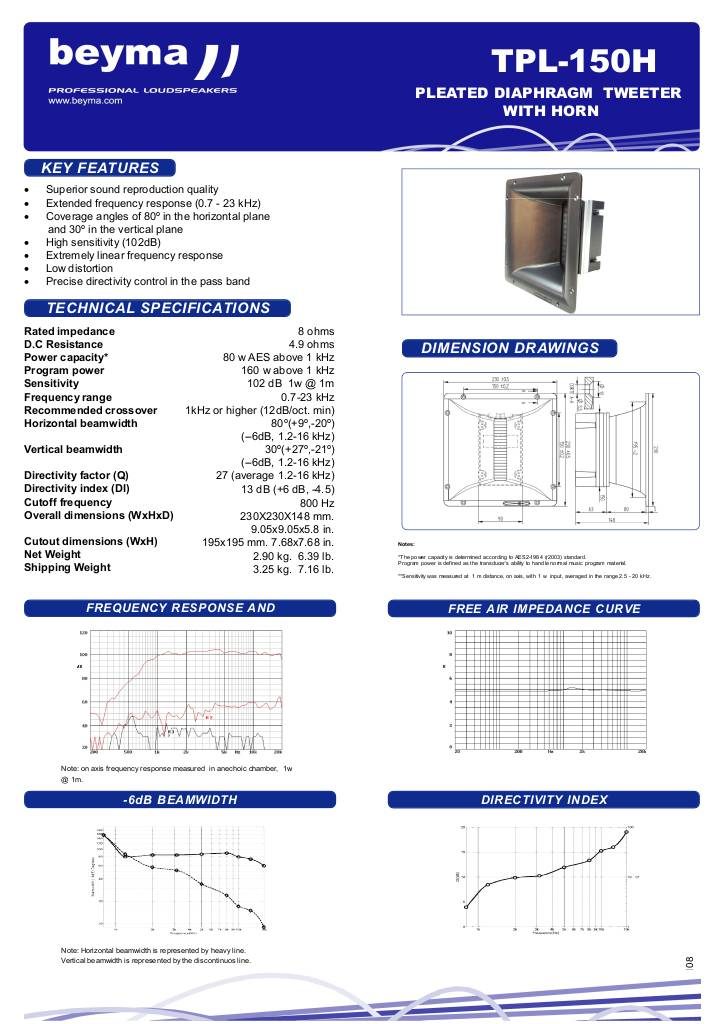

Scheda tecnica

n-20180919142843-tpl-150-h.pdf
€ 625,00 Price incl. VAT
