TMS6RG Full-range coaxial speaker

Rockford Fosgate
Your price:
€ 350,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to

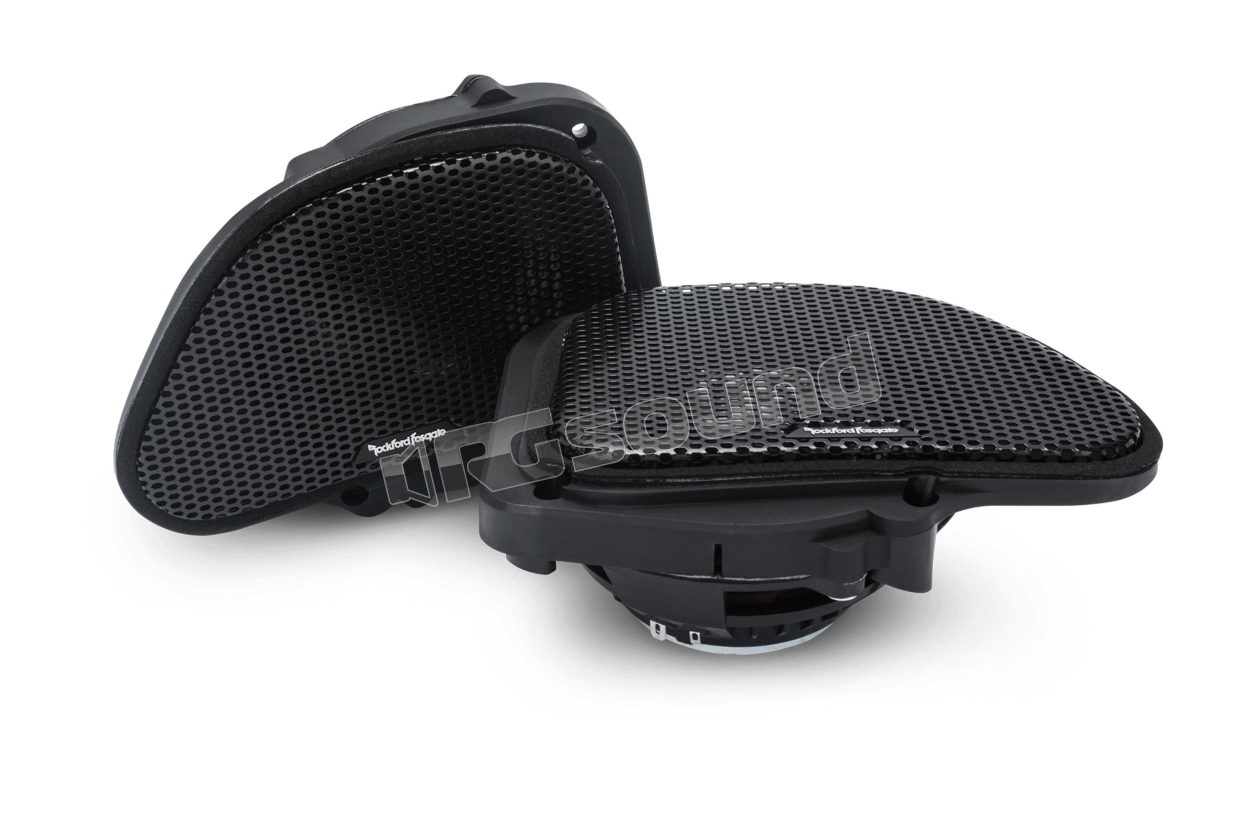

Rockford Fosgate TMS6RG for Harley-Davidson Road Glide

Full-range coaxial speaker designed to fit the fairing speaker positions of Harley-Davidson Road Glide models from 1998 to 2013.

TMS6RG is equipped with a neodymium motor structure that drives a polypropylene cone reinforced in co-molding with Santoprene coating. It also features a 25 mm ultra-efficient dome tweeter with integrated phase plug and is water and weather resistant with the addition of a front isolating spider in Santoprene that connects between the tweeter housing and the cone. The speaker mounts using factory hardware and is supplied with new grille assemblies.

"Moto" Section for compatible models

Rockford Fosgate TMS6RG main features
  • Design Element Ready weather and water resistant
  • 25 mm ultra-efficient proprietary film dome tweeter
  • Neodymium tweeter with integrated phase plug and ASA grille
  • Polypropylene cone reinforced with carbon fiber
  • Santoprene VAST Surround
  • Cone and surround co-molded
  • Front isolating spider in Santoprene
  • Poly-Cotton spider
  • 35mm high power voice coil
  • Ultra-efficient neodymium ring magnet motor
  • Glass re-reinforced polymer basket at extremely high temperature
  • Integrated fork terminals
  • 6dB integrated crossover with high power polyester capacitor
  • Low profile coaxial tweeter design
  • Discrete tweeter cable (hidden)
  • Designed for Harley-Davidson Road Glide 98-2013
NOTE: installation on CVO and Screaming Eagle models is not plug-n-play and requires modifications.

Manuale utente

n-20190417122203-1230-59287-01-a-tms6rg-tms6sg-tms5-man.pdf

2 Speakers (tweeter crossover built-in) 2 Speaker grilles 1 Mounting hardware

Rockford Fosgate TMS6RG

  • 2-way coaxial
  • Power Handling (RMS) 75 Watt RMS
  • Power Handling (MAX) 150 Watt MAX
  • Frequency Response (Hz) 56 Hz - 20 kHz
  • Diameter 6.5"
  • Grille / Trim Ring included
  • Sensitivity (dB @ 2.83 V / 1 M) 94 dB
  • Compatibility with Harley-Davidson Road Glide 1998-2013
  • Nominal Impedance (ohm) 4 Ohm
  • Voice coil diameter (in / mm) 1.40" (35.6 mm)
  • Complies with CEA-2031
€ 350,00 Price incl. VAT
