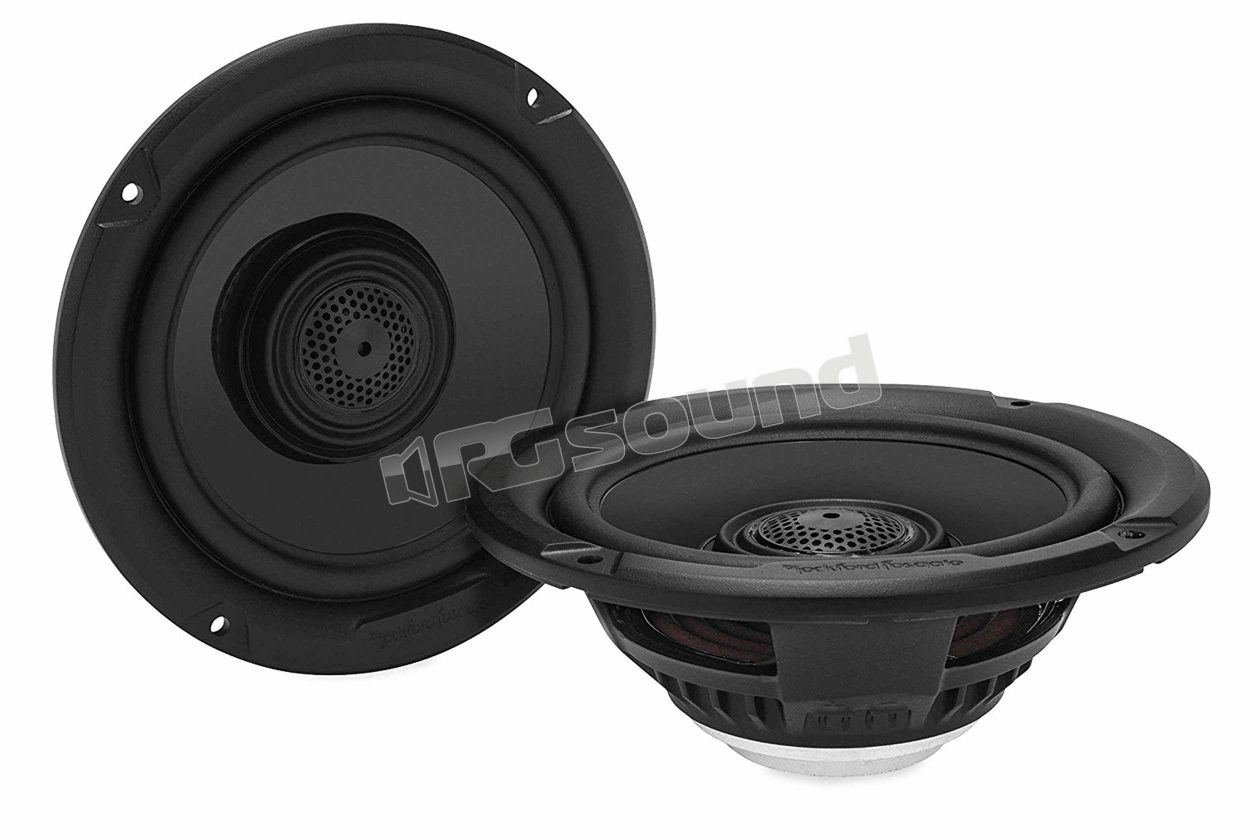

TMS65 165mm coaxial speakers with dedicated Harley grilles

Rockford Fosgate
Your price:
€ 350,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to

Rockford Fosgate TMS65 for Harley-Davidson 2014+

Pair of 165mm two-way full-range coaxial speakers, including grilles, for Harley-Davidson motorcycles from 2014.

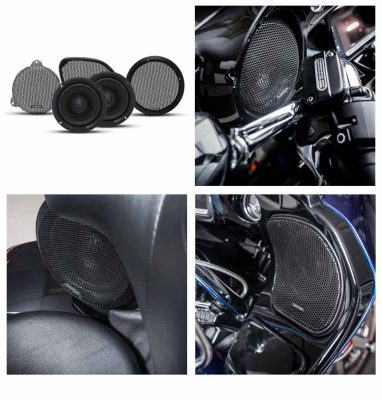

The TMS65 full-range coaxial speaker is designed to be installed on the latest Harley-Davidson models (from 2014) both in the fairing and in the Tour-Pak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.

It features a compact neodymium structure that drives a polypropylene cone reinforced co-molded with Santoprene surround. This ensures you get maximum frequency response and power in both the mid and low frequency ranges. It also features an ultra-efficient 25 mm dome tweeter with integrated phase plug for sharp and clear highs even at highway cruising speeds.

It is made water and weather resistant with the addition of a front isolating Santoprene spider connecting between the tweeter housing and the cone assembly. The speaker requires no modification to the factory location and comes with new grille assemblies for fairing and Tour-Pak applications.

Strengths of Rockford Fosgate TMS65 speakers
  • Element Ready weather and water resistant design
  • Neodymium tweeter with integrated phase plug and ASA grille
  • Ultra-efficient proprietary 25 mm film dome tweeter
  • Carbon fiber reinforced polypropylene cone
  • Santoprene VAST Surround
  • Cone and surround co-molded
  • Front isolating Santoprene spider
  • Poly-Cotton spider
  • High power 35mm voice coil
  • Ultra efficient neodymium ring magnet motor
  • High temperature glass reinforced polymer frame
  • Integrated fork terminals
  • 6dB integrated crossover with high power polyester capacitor
  • Low profile coaxial tweeter design
  • Discrete tweeter wire (hidden)
  • Designed for Harley-Davidson® Street Glide® / Road Glide® and Tour-Pak from 2014
  • Grilles for fairing and rear Tour-Pak included
"Motorcycle" section for compatible models
NOTE: may not be compatible with CVO and Screaming Eagle models

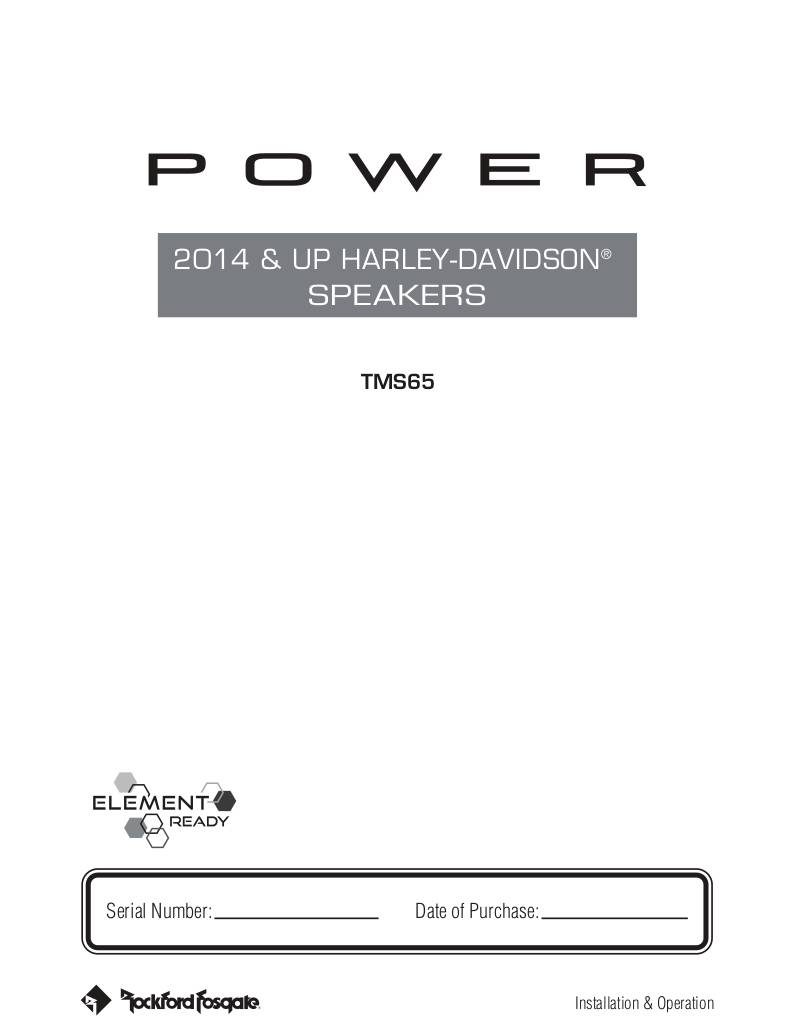

Manuale utente

n-20180116122917-575tms65-low.pdf

Pair of coaxial speakers Pair of Road Glide grilles from 2015 Pair of Street Glide grilles from 2014 Pair of Tour-Pak grilles from 2014 Hardware

Rockford Fosgate TMS65

  • Two-way coaxials
  • Coaxial diameter 165mm (6.5")
  • Nominal impedance 4 Ohm
  • CEA-2031 Compliant
  • Nominal power 75 Watts RMS
  • Maximum power 150 Watts MAX
  • Integrated tweeter crossover
  • Speaker grilles included
  • Mounting hardware
  • Voice Coil Diameter 35.56 mm (1.40")
  • Frequency Response (Hz) 56 Hz - 20 kHz
  • Sensitivity (dB @ 1W/1M) 91 dB
  • Sensitivity (dB @ 2.83V/1M) 94 dB
