TH K3 II A Orchestra Thesis series 3-way active kit

Name: TH K3 II A Orchestra Thesis series 3-way active kit
Brand: Audison
SKU: 196-48679
Price: 2799.00 EUR
Availability: BackOrder

TH K3 II A Orchestra Thesis series 3-way active kit Audison

Official Italian warranty

Your price:

€ 2799,00

Price per single item (VAT included)

Available on backorder

Calculating shipping costs to

Product code: #048679
Type: Speaker Systems - 3-Way Speaker Kits
Manufacturer: Audison
Website: https://www.audison.it

Type: 3-way separate kit
Woofer Size: 165 mm
Midrange Size: 70 millimetri
Tweeter Size: 34 millimetri
MAX Power: 350 Watt
RMS Power: 200 Watt
Frequency Response: 40 - 26.000 Hertz
Sensitivity: 87.5 dB
Impedance: 4 Ohm
Woofer Material: Membrana TPX

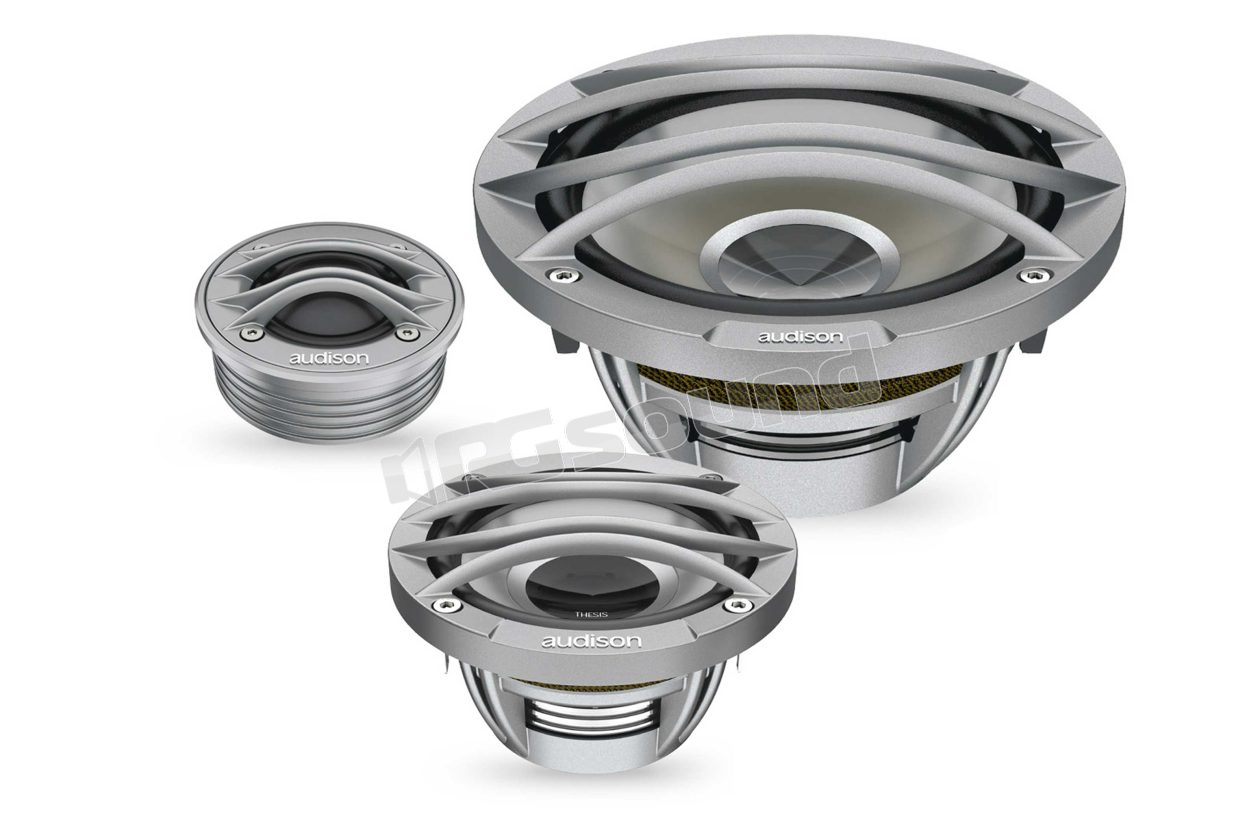

Audison TH K3 II A Orchestra 3-way active kit Thesis series

Listening to a complete orchestra in a prestigious theater is an experience that leaves a lasting impression for a lifetime. For this reason the highest three-way Thesis system was named Orchestra, to evoke an exceptional event that generates extraordinary pleasure.

Components:

TH 1.5 II Violin Tweeter

34 mm single-layer voice coil CCAW that combines lightness, stability at lower frequencies and complete absence of musical transients.
Extremely powerful N38 "H-grade" neodymium magnet capable of producing 1.67 T * m in the magnetic space for excellent dynamic response and very low distortion across the entire frequency range.
Exclusive air loading system with resulting resonance frequency lower than 800 Hz, for filter setting starting from 1.5 kHz - 12 dB / oct.
38 mm natural silk dome optimized with extensive material characterization, laser vibrometer scanning and finite element analysis for smooth and extended response.
Frequency response up to 26 kHz optimized for off-axis installation.
Violin TH 1.5 II tuning system with two types of electroacoustic load: bottom or lower disc based on high performance objectives and flexibility of car integration.
Solid full metal construction structure with every part exclusively designed and manufactured for Audison TH 1.5 II.
FEM (Finite Element Method) optimized front plate and front ribs for improved dispersion pattern.
eID technology that provides TH 1.5 II traceability from the production phase to the owner.

TH 3.0 II VOICE Midrange

TH 3.0 II Voice is a pure midrange specialized in reproducing the 250 / 3.5k Hz range. It integrates perfectly with tweeter and woofer in a 3-way system that raises the emission point to create a stunning soundstage.
The optimized force factor (BL) combined with FS lowered to 100 Hz made it possible to obtain a QTS value of 0.48, ideal for perfectly damped behavior in the 400-800 Hz frequency range. All electroacoustic parameters have been optimized to maximize performance in contained spaces. The TH 3.0 II Voice directivity map is refined both on-axis and off-axis as can be seen from the response curves, a fundamental aspect characteristic for obtaining correct and realistic sound reproduction.

TH 6.5 II Sax Woofer

50 mm voice coil in CCAR (copper-coated aluminum tape) wound with flat wire to maximize force factor and heat dissipation.
Low voice coil inductance to optimize emission in the mid-high band (2-3 kHz).
N48 "H-grade" neodymium magnet with excellent thermal stability to ensure optimal dynamic reserve in every situation.
Magnetic group geometry designed using finite element simulation software to maximize efficiency by concentrating the magnetic field.
Diaphragm made of TPX®, a transparent material that reduces frequency response irregularities in the mid-high band, leaving the internal speaker in full view.
Diaphragm geometry designed using simulation software, to obtain regular emission at all listening angles.
Basket made in one piece of die-cast aluminum with four pairs of ribs to optimize heat transfer, eliminate turbulent air flows and ensure maximum structural rigidity.
Hi-excursion suspension and spider, optimized with multi-physics behavior simulations of speakers.
eID technology that provides TH 6.5 II traceability from the production phase to the owner.
