TH K2 II P Coro Thesis 2-way kit with THX 2 II crossover

Name: TH K2 II P Coro Thesis 2-way kit with THX 2 II crossover
Brand: Audison
SKU: 34-45457
Price: 3409.00 EUR
Availability: BackOrder

TH K2 II P Coro Thesis 2-way kit with THX 2 II crossover Audison

Official Italian warranty

Your price:

€ 3409,00

Price per single item (VAT included)

Available on backorder

Calculating shipping costs to

Product code: #045457
Type: Speaker Systems - 2-Way Speaker Kits
Manufacturer: Audison
Website: https://www.audison.it

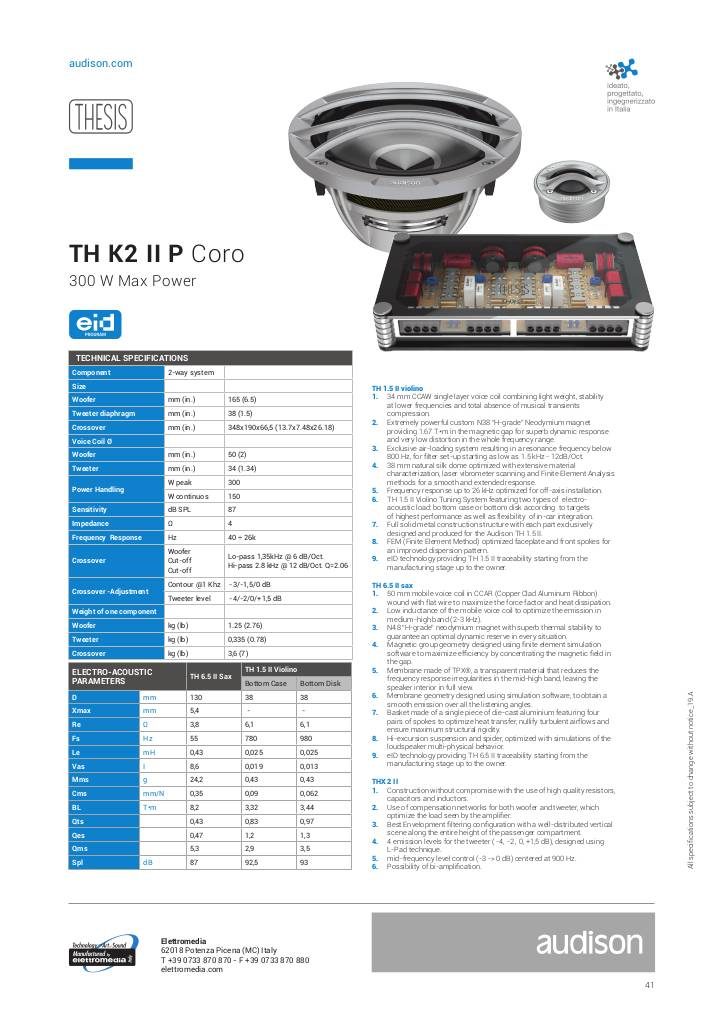

Audison TH K2 II P Coro 2-way Kit Thesis with THX 2 II crossover

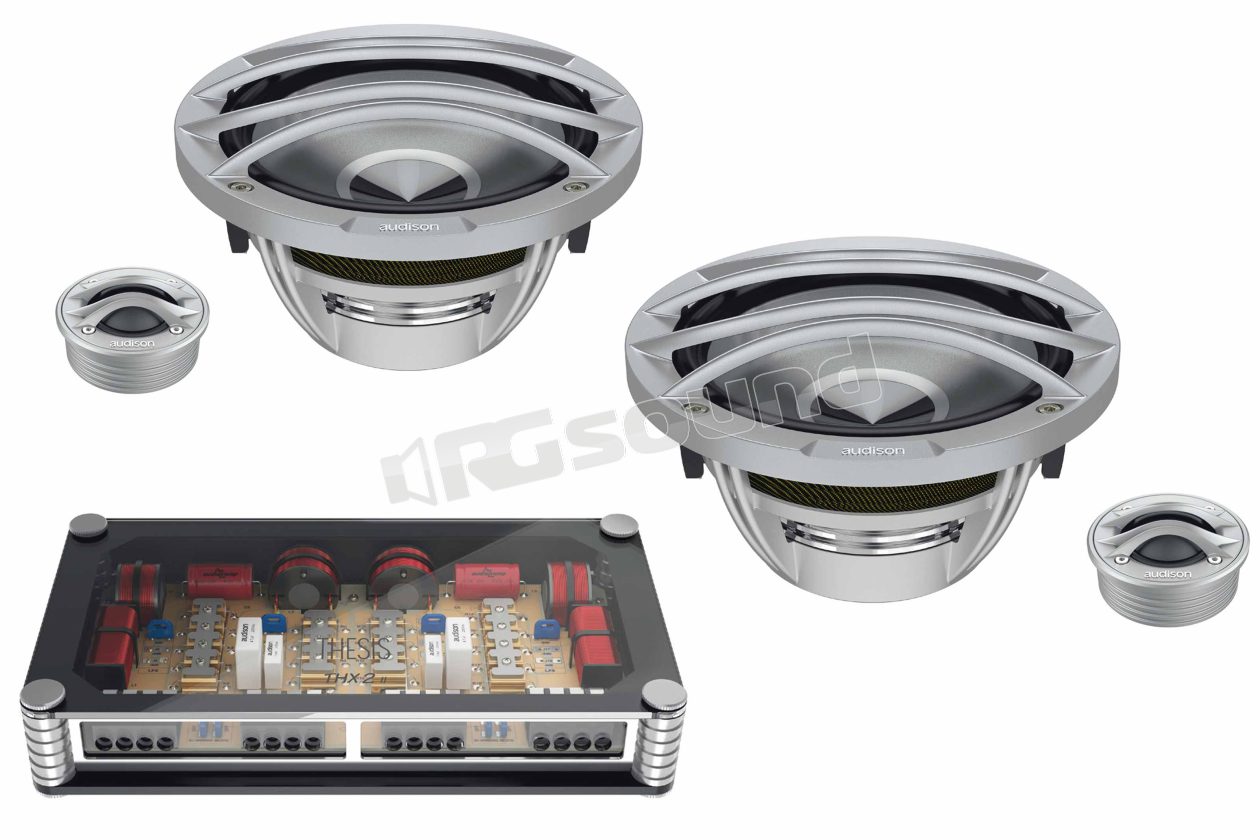

TH K2 IIP Coro is the 2-way Audison Thesis series system composed of a pair of TH 6.5 II Sax woofers and a pair of TH 1.5 II Violino tweeters plus the 2-way THX 2 II crossover.

Components

TH 1.5 II Violino tweeter

Single-layer 34 mm CCAW voice coil that combines lightness, stability at lower frequencies and complete absence of musical transients.
Extremely powerful N38 "H-grade" neodymium magnet capable of producing 1.67 T * m in the magnetic gap for excellent dynamic response and very low distortion across the entire frequency range.
Exclusive air-loading system resulting in lower resonance frequency 800 Hz, for filter setting starting from 1.5 kHz - 12 dB / oct.
38 mm natural silk dome optimized with extensive characterization material, laser vibration scanning and finite element analysis for smooth and extended response.
Frequency response up to 26 kHz optimized for off-axis installation.
TH 1.5 II Violino tuning system with two types of electroacoustic loading: bottom or lower disk based on high performance objectives and integration flexibility in the car.
Solid metal full construction structure with every part exclusively designed and manufactured for Audison TH 1.5 II.
FEM (Finite Element Method) optimized front plate and front ribs for improved dispersion pattern.
eID technology that provides TH 1.5 II traceability from the production phase to the owner.

TH 6.5 II Sax woofer

50 mm voice coil in CCAR (copper-coated aluminum tape) wound with flat wire to maximize force factor and heat dissipation.
Low voice coil inductance to optimize mid-high frequency output (2-3 kHz).
N48 "H-grade" neodymium magnet with excellent thermal stability to ensure optimal dynamic headroom in every situation.
Magnetic group geometry designed using finite element simulation software to maximize efficiency by concentrating the magnetic field.
Diaphragm made of TPX®, a transparent material that reduces irregularities in frequency response in the mid-high range, leaving the internal speaker in full view.
Diaphragm geometry designed using simulation software to achieve regular output at all listening angles.
Basket made from a single piece of die-cast aluminum with four pairs of spokes to optimize heat transfer, eliminate turbulent air flows and ensure maximum structural rigidity.
Hi-excursion suspension and spider, optimized with multi-physics speaker behavior simulations.
eID technology that provides traceability of TH 6.5 II from the production phase to the owner.

THX 2 II Crossover

Uncompromising construction with the use of high-quality resistors, capacitors and inductors.
Use of compensation networks for woofer and tweeter that optimize the load seen by the amplifier.
Best Envelopment filtering configuration with a well-distributed vertical soundstage throughout the entire cabin height.
4 tweeter output levels (-4, -2, 0, +1.5 dB), designed using L-Pad Technique.
Mid-frequency level control (-3 -> 0 dB) centered at 900 Hz.
Bi-amplification capability.
