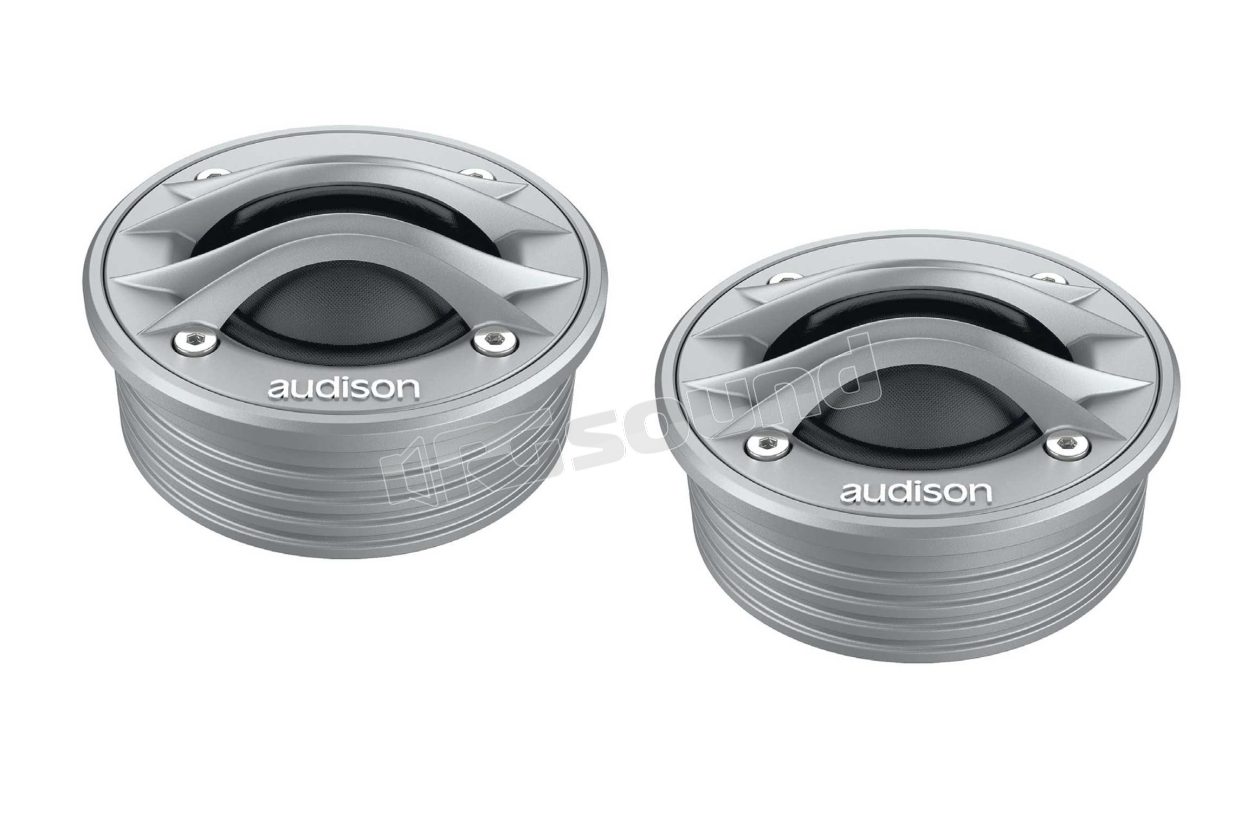

TH 1.5 II Violino Pair of 34 mm tweeters, Thesis Series

Audison
Your price:
€ 860,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
34 mm
MAX Power
200 Watt
Frequency Response
800 - 26.000 Hertz
Sensitivity
93 dB
Impedance
6 Ohm
Outer Diameter
71 mm
Installation Depth
22 mm
Tweeter Material
Neodimio e cupola in Tetolon

Audison TH 1.5 II Violino Pair of 34 mm high efficiency tweeters Thesis Series

TH 1.5 II Violino is an extraordinary tweeter with a single 34 millimeter CCAW single-layer voice coil that combines lightness, stability at lower frequencies and total absence of transient musical compression. Custom "Hi-grade" N38 neodymium magnet extremely powerful capable of delivering 1.67 T*m in the air gap for excellent dynamic response and very low distortion across the entire frequency range.

The 38 millimeter natural silk dome has been optimized with extensive material characterization, carefully tested in the laboratory with laser vibrometer scanning for precise and extended response. The frequency response has therefore been extended to 26 kHz and has been optimized for off-axis installation. The Audison TH 1.5 II Violino features a solid structure made of metal and every part has been designed and produced exclusively for this model.

TH 1.5 II Violino Features

  • 34 mm single-layer CCAW moving voice coil that combines lightness and stability at lower frequencies and total absence of transient musical compression.
  • Custom "N38 H-grade" neodymium magnet extremely powerful providing 1.67 T*m in the magnetic gap for excellent dynamic response and very low distortion across the entire frequency range.
  • Exclusive air loading system that allows achieving a resonance frequency below 800 Hz, for filter setting starting from 1.5 kHz 12dB/Oct.
  • 38 mm natural silk dome optimized with extensive material characterization, laser vibrometer scanning and finite element analysis for uniform and extended response.
  • Frequency response up to 26 kHz optimized for off-axis installation.
  • TH 1.5 II violin tuning system with two types of electroacoustic load: enclosure or lower disc depending on high performance objectives and integration flexibility in the car.
  • Structure entirely in solid metal with every part exclusively designed and produced for the Audison TH 1.5 II.
  • The FEM (Finite Element Method) method optimized the front plate and front spokes for improved dispersion pattern.
  • The eID technology provides TH 1.5 II traceability starting from the production phase to the owner's responsibility.

Manuale utente

n-20170306100055-th-1-5-ii-violino-manual-manual.pdf

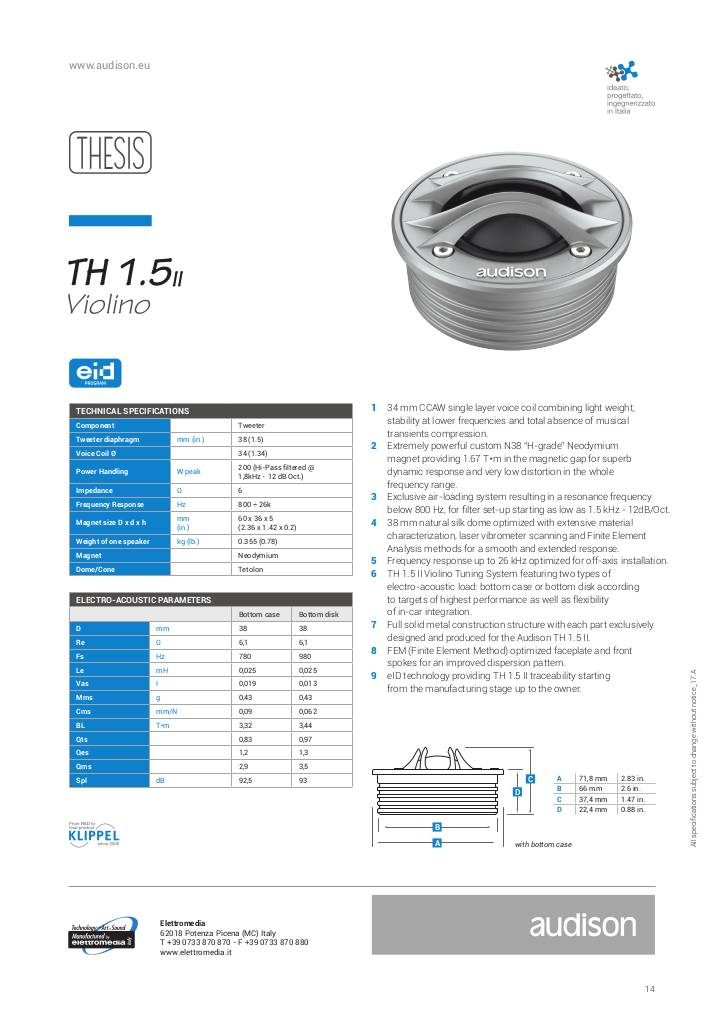

Scheda tecnica

n-20170306100055-th-1-5-ii-violino-tech-sheet-tech-sheet.pdf

Audison TH 1.5 II Violino Technical Specifications

  • Nominal diameter 38 mm (1.5")
  • Impedance 6 Ohm
  • Power handling - Peak 200 W
  • Sensitivity 92.5 dB
  • Frequency response 800 ÷ 26k Hz
  • Voice coil Ø 34 mm (1.34 inches)
  • Magnet material NEODYMIUM
  • Dome material TETOLONE FIBER
  • Cone material TETOLONE FIBER
  • Power crossover (high-pass filter @ 1.8kHz - 12 dB oct.)
  • Weight 0.355 kg

Electrical-acoustic specifications

  • D 38 cm² (5.89 in²)
  • Re 6.1 Ohm
  • Fs 780 Hz
  • Le 0.025 mH
  • Vas 0.019 l
  • Mms 0.43 g
  • Cms 0.09 mm/N
  • BL 3.32 T-m
  • Qts 0.83
  • Qms 2.9
  • Reference efficiency 92.5
