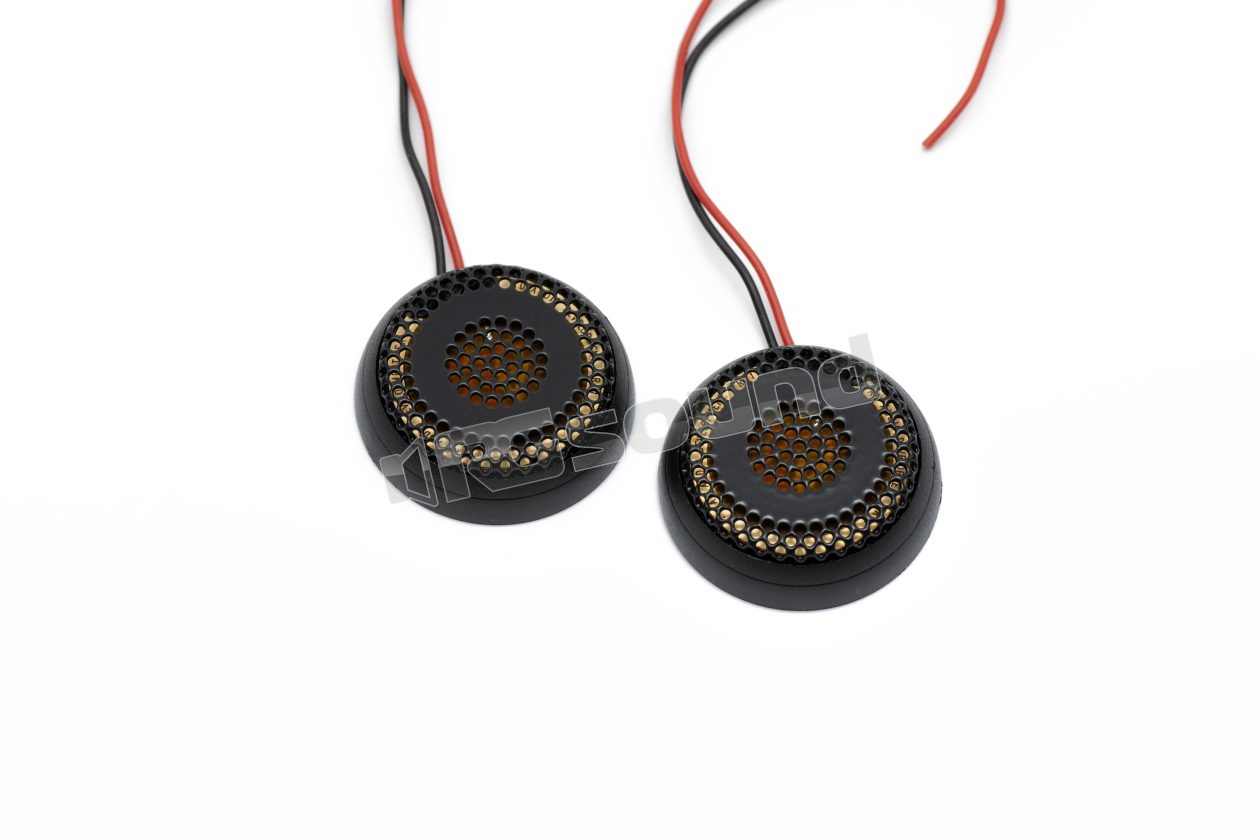

T1FR High-performance 31mm planar tweeter

AD Audio Development
Your price:
€ 163,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
31 mm
RMS Power
30 Watt
Frequency Response
4000 - 25000 Hertz
Sensitivity
88 dB
Impedance
3,7 Ohm
Outer Diameter
41 mm
Installation Depth
5 mm
Tweeter Material
Kapton

AD Audio Development T1FR High-Performance 31mm Planar Tweeter

The T1FR by AD Audio Development is a planar super tweeter designed to deliver extremely detailed and natural reproduction of high frequencies. Thanks to its advanced technology, it is ideal for high-fidelity audio systems where precision and sound clarity are fundamental.
Features T1FR
  • Dome: Copper tape chemically deposited on Kapton support
  • Coil: The tape itself serves as the coil (Ø 25 mm)
  • Emission: Through phase correction grid for optimal dispersion
  • Magnetic Circuit: Neodymium with high thermal stability, internally saturated
  • Installation: Surface mounted or recessed, thanks to reduced depth

Why choose AD

All AD Audio Development products are handcrafted in Italy. Every component is hand-built by industry experts, using the highest quality materials and advanced technologies to guarantee exceptional sound performance and reliability over time.

The brand's philosophy is based on a production method that allows for rigorous quality control and a constructive care that is rarely found in industrial products. AD components can be compared, for performance and construction, to higher-end models, often sold at significantly higher prices.

Choosing AD Audio Development means purchasing a handcrafted hi-fi product, 100% made in Italy, with an unbeatable quality-to-price ratio for those seeking maximum performance without compromises.

Scheda tecnica

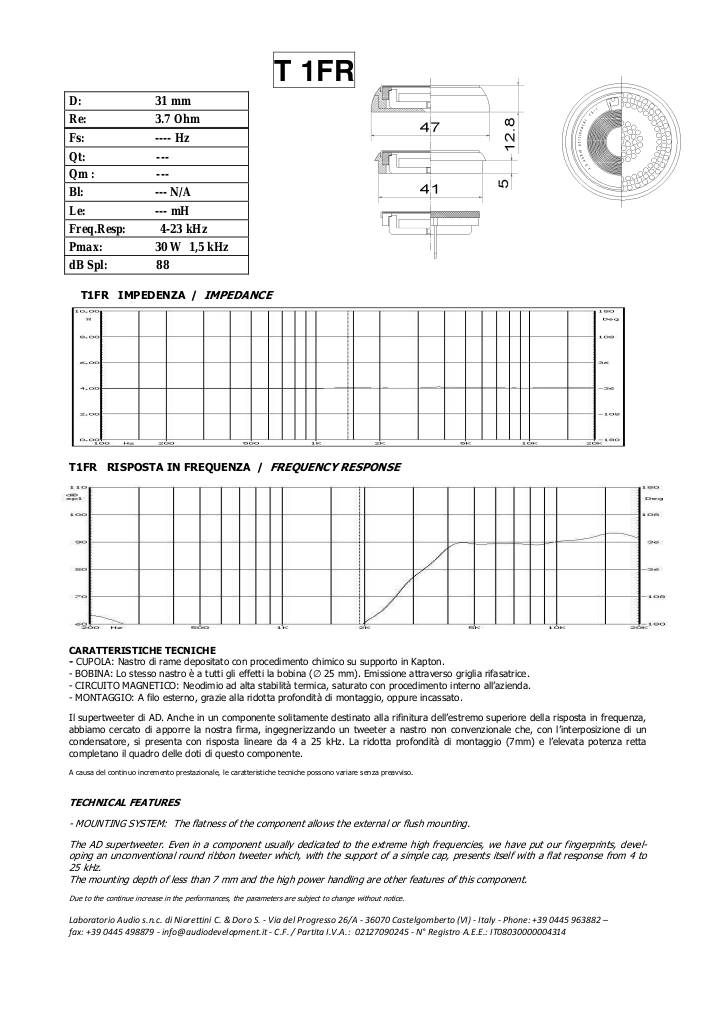

n-20210219114229-t1fr-ita-sm.pdf

AD Audio Development T1FR Technical Specifications

  • Type: Planar tweeter
  • External diameter: 31 mm
  • Installation depth: Reduced, to facilitate integration
  • Frequency response: 4.000 Hz - 25.000 Hz
  • Impedance: 3 Ohm
  • Sensitivity: 90 dB
  • Nominal power: 30W RMS
