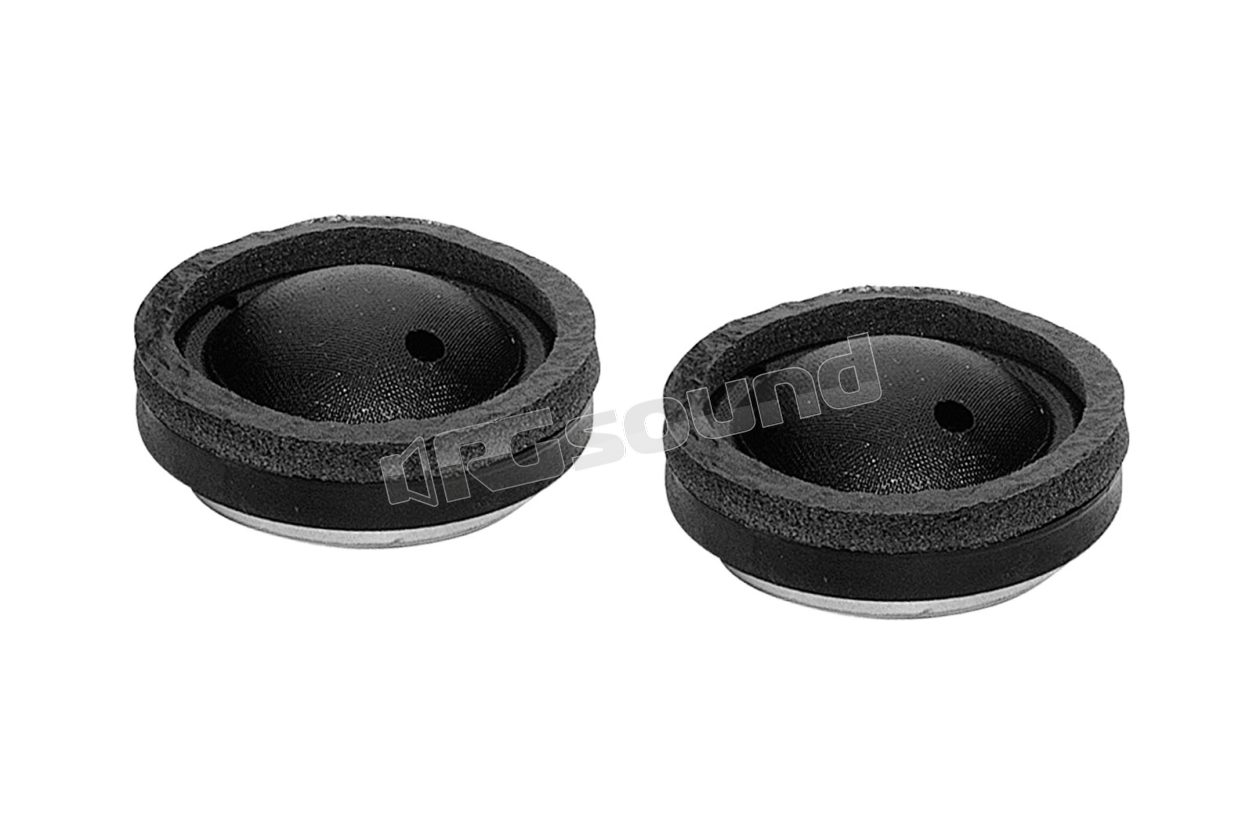

T100R 28 mm Aluminum Dome Tweeter for Hi-End Systems

AD Audio Development
Your price:
€ 271,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
28 mm
RMS Power
25 Watt
Frequency Response
1500 - 20000 Hertz
Sensitivity
90 dB
Impedance
3 Ohm
Outer Diameter
41 mm
Installation Depth
5 mm
Tweeter Material
Silk dome

AD Audio Development T100R 25 mm Aluminum Dome Tweeter for Hi-End Systems

The T100R by AD Audio Development is a high-performance tweeter designed for high-fidelity car audio systems. Equipped with a 25 mm pure aluminum dome, it guarantees extremely precise reproduction of high frequencies, with clear and natural sound definition.

Thanks to its tuned rear chamber structure, the T100R manages to extend the frequency response towards the lower end, improving the transition with the midrange and offering a wide and well-focused soundstage. Ideal in two or three-way configurations, it adapts perfectly to OEM or custom installations, whether in flush mount or surface mount, thanks to the included brackets.

With a rated power of 50W RMS, this tweeter ensures dynamic and controlled performance even in the presence of high volumes. The neodymium magnet guarantees compact dimensions without sacrificing the magnetic force needed to achieve high efficiency.

Why choose AD

All AD Audio Development products are handcrafted in Italy. Each component is built by hand by industry experts, using the highest quality materials and advanced technologies to ensure exceptional sound performance and reliability over time.

The brand's philosophy is based on production that allows rigorous quality control and constructive care that is rarely found in industrial products. AD components can be compared, for performance and construction, to higher-end models, often sold at significantly higher prices.

Choosing AD Audio Development means purchasing a handcrafted hi-fi product, 100% made in Italy, with an unbeatable quality-to-price ratio for those seeking maximum performance without compromise.

Scheda tecnica

n-20161118160114-t100r-ita-sm.pdf

AD Audio Development T100R

  • Dome: 25 mm pure aluminum
  • Voice coil: 25 mm, OFC copper on Kapton support
  • Magnet: Neodymium
  • Rated power: 50W RMS
  • Frequency response: 1,000 Hz - 23,000 Hz
  • Sensitivity: 92 dB
  • Impedance: 4 Ohm
  • Body material: Anodized aluminum
  • Configuration: Tuned rear chamber
  • Mounting: Flush mount or surface mount (with included brackets)
€ 271,00 Price incl. VAT
