T100F NEO Black hi-end 28mm Silk Dome Tweeter with neodymium magnet

AD Audio Development
Your price:
€ 327,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
Dome Size
28 mm
RMS Power
30 Watt
Frequency Response
1500 - 21000 Hertz
Sensitivity
90,5 dB
Impedance
3,2 Ohm
Outer Diameter
91 mm
Installation Depth
15 mm
Tweeter Material
Silk dome

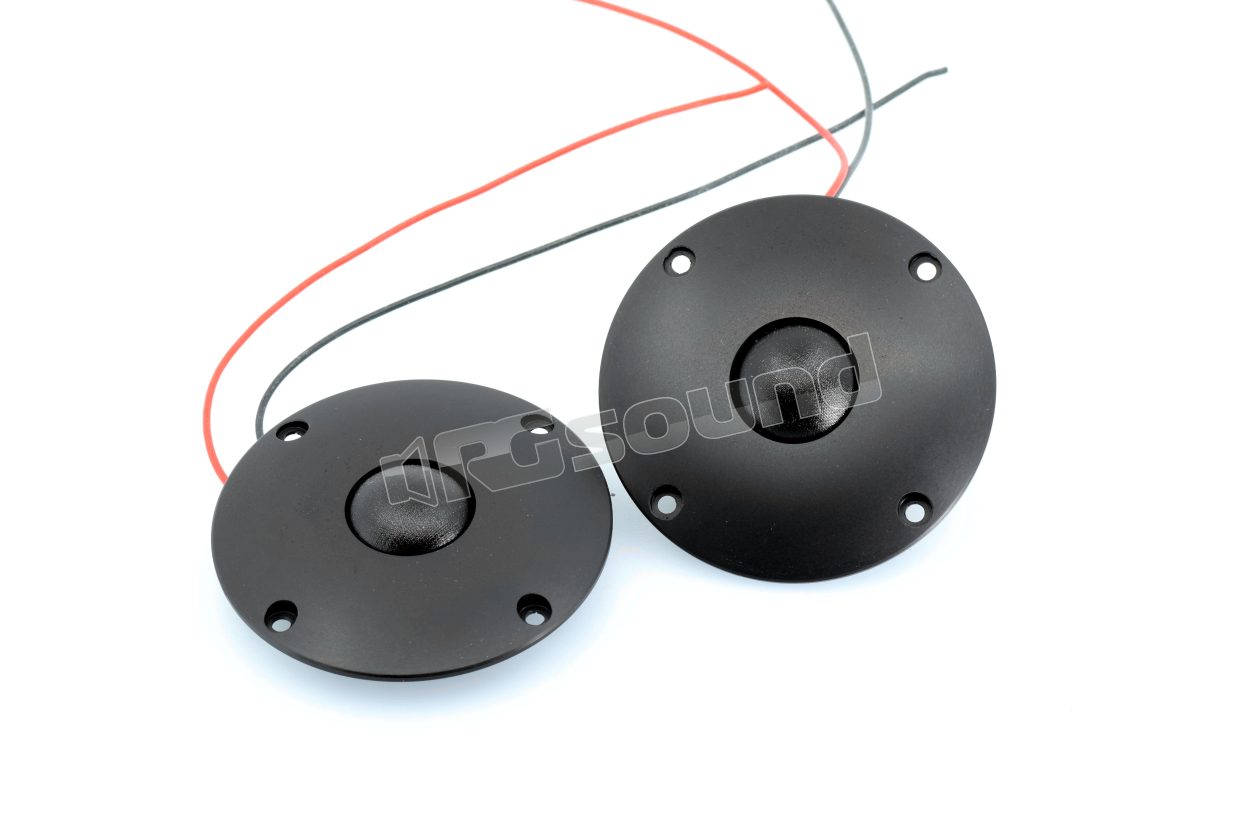

AD Audio Development T100F NEO Black Dome Tweeter in Silk 28 mm with Neodymium Magnet

The T100F NEO Black by AD Audio Development is a high-performance tweeter designed for high-fidelity car audio systems. Equipped with a 28 mm silk dome, it ensures extremely precise reproduction of high frequencies, with clear and natural sound definition.

Thanks to its compact structure and neodymium magnet, the T100F NEO Black offers high efficiency in a reduced space, making it ideal for OEM or custom installations. The aluminum flange with chrome finish adds a refined aesthetic touch, while the low installation depth of just 15 mm facilitates integration in various contexts.

With a nominal power of 30W RMS and a sensitivity of 90.5 dB, this tweeter ensures dynamic and controlled performance even at high volumes, maintaining sound clarity without distortion.

Why Choose AD

All AD Audio Development products are handcrafted in Italy. Each component is hand-built by industry experts, using the highest quality materials and advanced technologies to ensure exceptional sound performance and reliability over time.

The brand's philosophy is based on production that allows for rigorous quality control and constructive care that is rarely found in industrial products. AD components can be compared, in terms of performance and construction, to higher-end models, often sold at significantly higher prices.

Choosing AD Audio Development means purchasing a handcrafted hi-fi product, 100% made in Italy, with an unbeatable quality-to-price ratio for those seeking maximum performance without compromises.

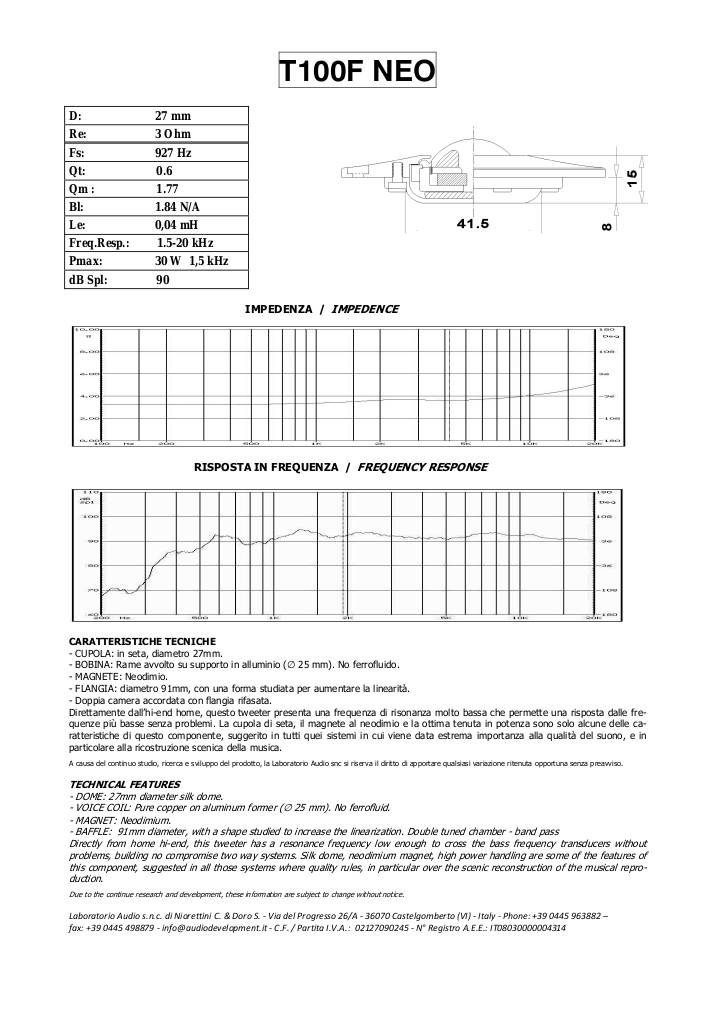

Scheda tecnica

n-20210219115644-t100f-neo-ita-sm.pdf

AD Audio Development T100F NEO Black Technical Specifications

  • Dome: 28 mm silk
  • Voice coil: 28 mm, OFC copper on Kapton support
  • Magnet: Neodymium
  • Nominal power: 30W RMS
  • Frequency response: 1,500 Hz - 21,000 Hz
  • Sensitivity: 90.5 dB
  • Impedance: 3.2 Ohm
  • External diameter: 91 mm
  • Installation depth: 15 mm
  • Body material: Anodized aluminum
  • External flange dimensions - 80 mm diameter
  • Hole spacing 70 mm
  • Installation depth 9 mm
