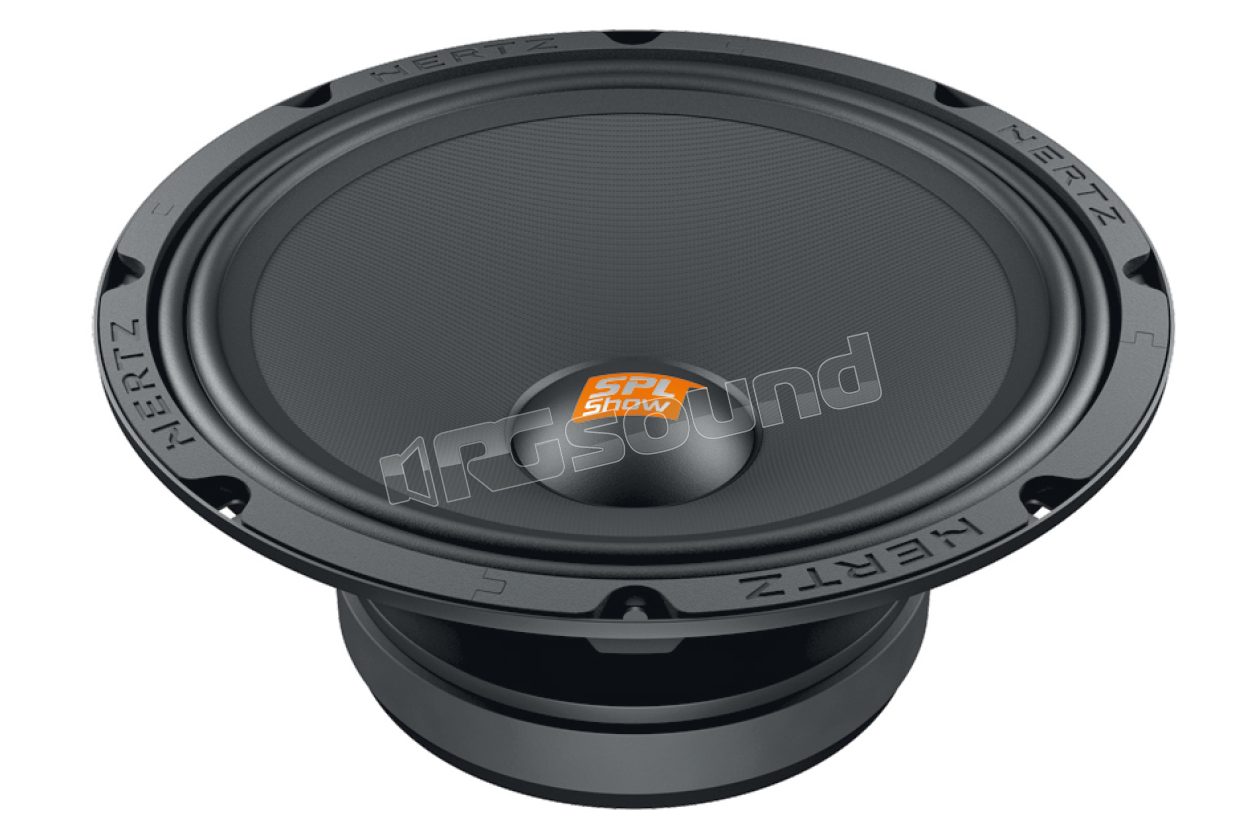

SV 250.1 250 mm high-efficiency SPL Show woofer

Hertz
Your price:
€ 119,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Midrange
Speaker Size
250 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
90-7000 Hertz
Sensitivity
101 dB
Impedance
4 Ohm
Weight
4 Kg
Installation Depth
101 mm
Midrange Cone Material
cellulosa pressata

Hertz SV 250.1 High efficiency 250 mm woofer SPL Show

The midrange Hertz SV 250.1 is the most versatile solution for installations dedicated to SPL. Like the SX subs, SV 250.1 is equipped with a very solid and robust structure and like other components of the SPL Show line uses a double-layer copper coil, wound on KSV support, optimizing mechanical and thermal capabilities even in extreme situations.
For the cone, a pressed paper membrane with water-repellent treatment and a cellulose dust cap were used to ensure rigidity and lightness; double wave suspensions in damped fabric to guarantee linearity even in more extreme conditions.
SV 250.1 Features
  • High permeability magnetic plates guarantee constant and uniform flux.
  • High flux density ferrite magnet, for high level SPL performance.
  • Double-layer copper mobile coil, wound on a KSV support, for excellent thermal and mechanical capability.
  • Tinned high-current terminals.
  • Damped fabric suspension, for maximum lightness and extreme SPL.
  • Water-repellent pressed paper cone.

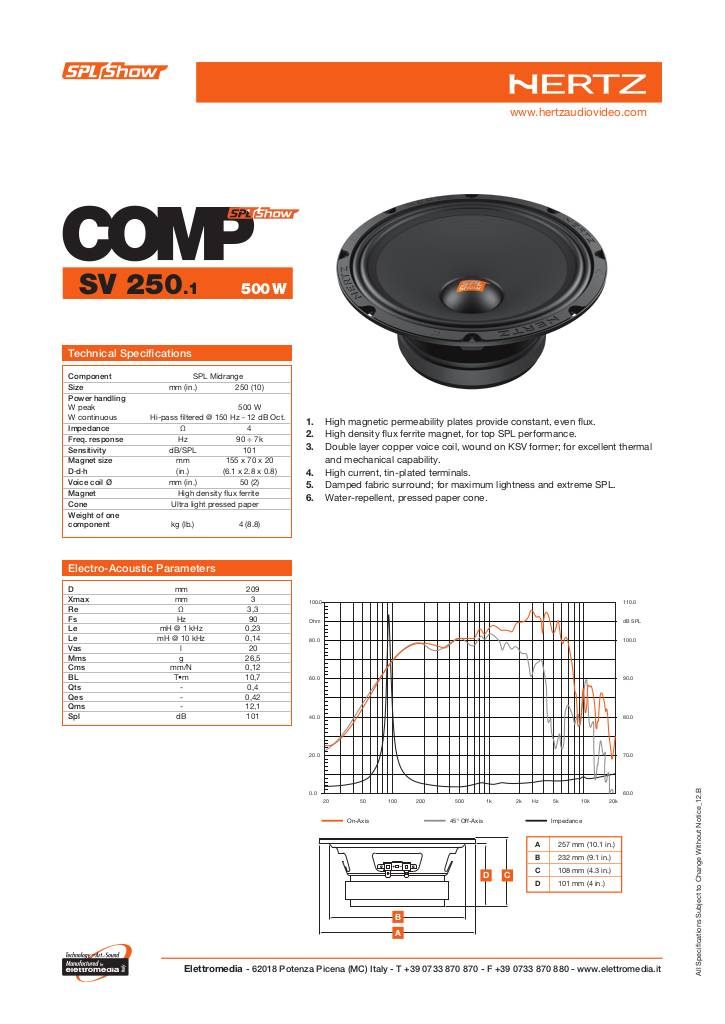

Specifiche - grafico

20121113190657-sv250.pdf

Hertz SV 250.1 Technical specifications

  • SPL Midrange Component
  • Dimensions mm (in.) 250 (10)
  • Power handling
  • W peak 500 W
  • W continuous High-pass filter @ 150 Hz - 12 dB/oct.
  • Impedance Ω 4
  • Frequency response Hz 90 ÷ 7k
  • Sensitivity dB/SPL 101
  • Magnet dimensions mm 155 x 70 x 20
  • Mobile coil Ø mm (in.) 50 (2)
  • Magnet High flux density Ferrite
  • Cone Ultra-light pressed paper
  • Component weight kg (lb.) 4 (8.8)
€ 119,00 Price incl. VAT
