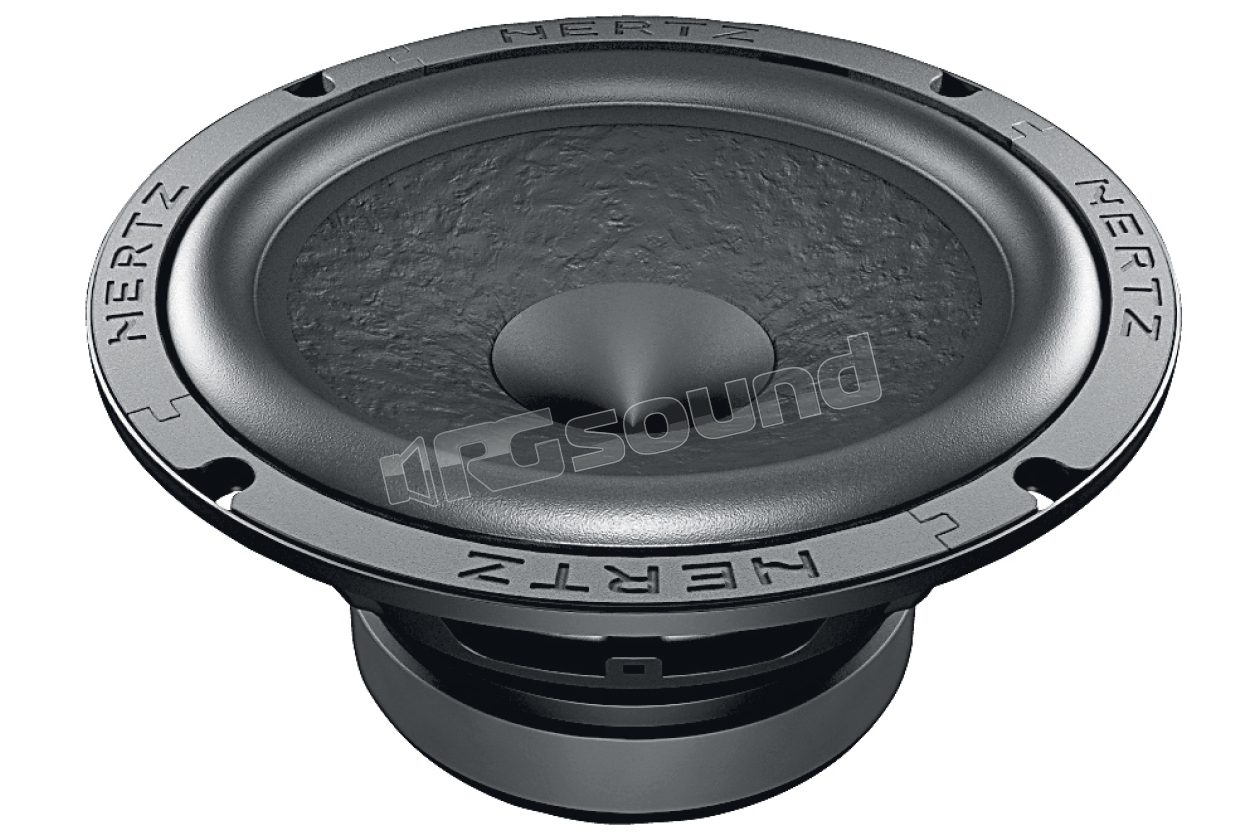

SV 200L High-efficiency 200 mm woofer SPL Show

Hertz
Your price:
€ 199,00
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
45-4500 Hertz
Sensitivity
94,5 dB
Impedance
4 Ohm
Weight
2,32 Kg
Installation Depth
82 mm
Woofer Material
Carta trattata

Hertz SV 200L High efficiency 200 mm SPL Show woofer

Hertz SV 200L is a high efficiency woofer designed to express superior performance for thermal and mechanical reliability. The objective was fully achieved by equipping the woofer with pure copper coil wound on KSV support, oversized magnet and perforated lower pole plate.
SV 200L uses the exclusive V-cone technology on a cone made of cellulose pulp and cotton fiber and a Lossless Polymer Rubber suspension to offer a vigorous response to low frequencies and better off-axis dispersion.
SV 200L Features
  • Pole plates with high magnetic permeability provide continuous and constant flux.
  • Ferrite magnet with high flux density, for superior SPL performance.
  • Double layer copper coil wound on KSV support, for exceptional thermal and mechanical reliability.
  • Perforated lower pole plate, to improve excursion linearity and heat dissipation.
  • High current tinned terminals, for maximum conductivity.
  • Cone in cellulose pulp and cotton fibers for a powerful and dynamic response in low frequency.
  • V-cone® for best acoustic dispersion and detail in mid-high range.
  • Suspension in loss-free polymeric rubber for excellent damping even at high excursions.

Specifiche tecniche

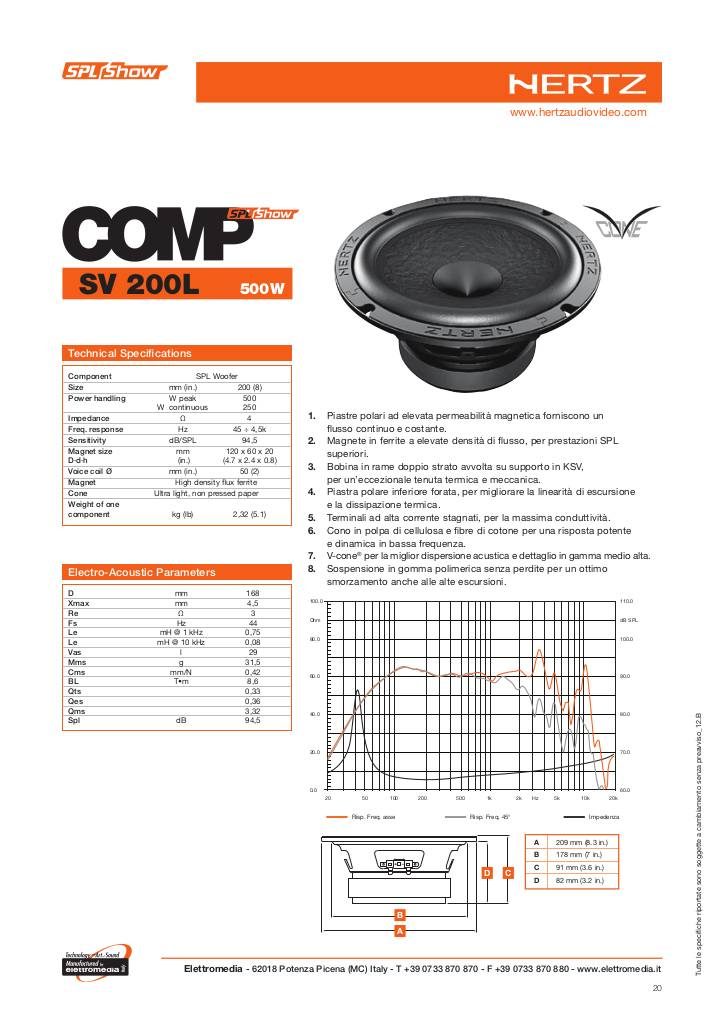

20150423153556-sv200l-scheda.pdf

Pair of SV 200L woofers Installation instructions

Hertz SV 200L Technical specifications

  • SPL Woofer Components
  • Size mm (in.) 200 (8)
  • Power handling - continuous W 250
  • Power handling - Peak W 500
  • Impedance Ohm 4
  • Voice coil Ø 50 (2)
  • Frequency response Hz 45 ÷ 4.5k
  • Magnet size D x d x h mm (in.) 120 x 60 x 20 (4.7 x 2.4 x 0.8)
  • Weight per unit kg (lb.) 2.32 (5.1)
  • High flux density Ferrite magnet
  • Cone Ultralight uncompressed paper

Electroacoustic specifications

  • D mm 168
  • Re Ohm 3
  • Fs Hz 44
  • Le mH 0.75
  • Vas I 29
  • Mms g 31.5
  • Cms mm/N 0.42
  • BL T*m 8.6
  • Qts 0.33
  • Qes 0.36
  • Qms 3.32
  • Spl dB 94.5
€ 199,00 Price incl. VAT
