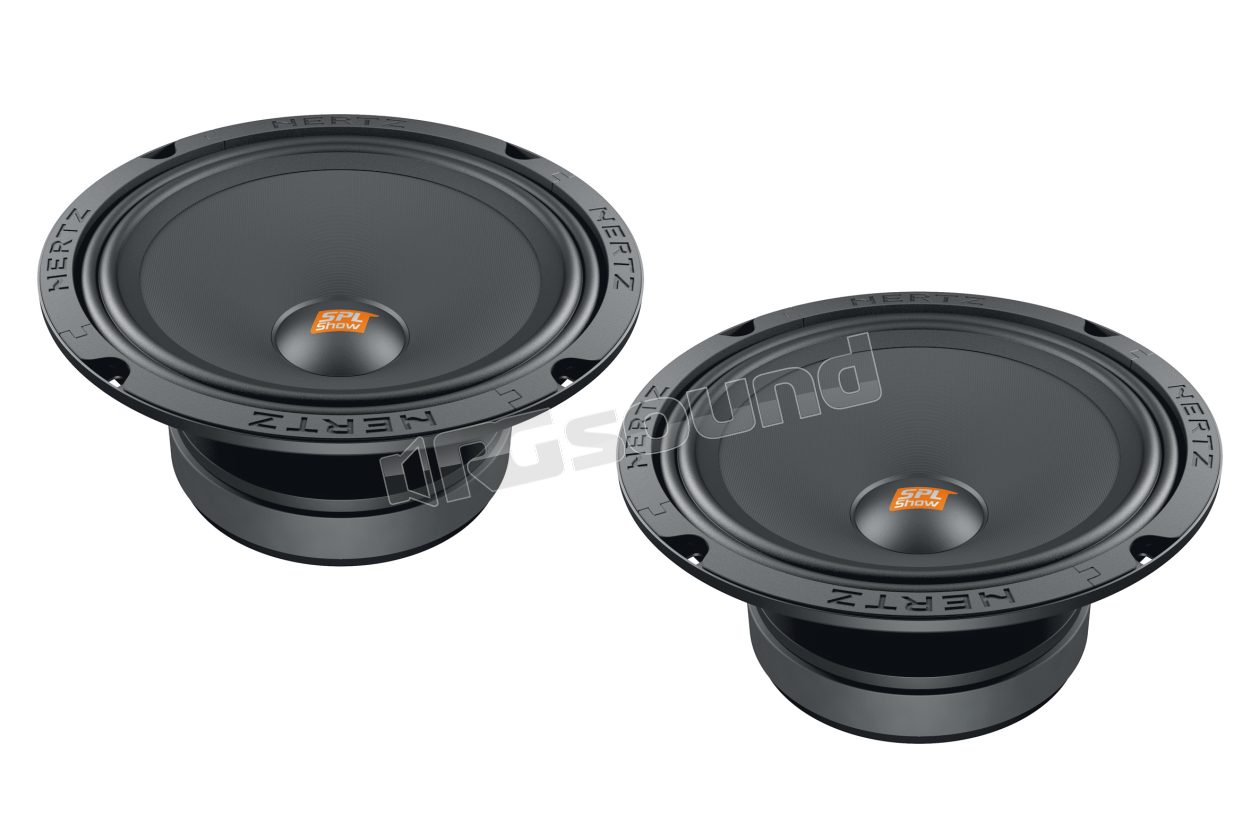

SV 200.1 High-efficiency midrange pair SPL Show

Hertz
Your price:
€ 179,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
200 mm
MAX Power
500 Watt
Frequency Response
100 - 9.000 Hertz
Sensitivity
100 dB
Impedance
4 Ohm
Weight
2,8 Kg
Installation Depth
90 mm
Midrange Cone Material
Cellulosa trattata

Hertz SV 200.1 SPL Pair of 200 mm (8") midrange drivers for SPL competitions, maximum power 500 W, impedance 4 Ohm


The SV 200.1 midrange drivers are equipped with a very solid and robust structure, characteristic of the Hertz SPL Show speaker line.

SV 200.1 Features

  • Pole plates with high magnetic permeability provide continuous and constant flux.
  • Ferrite magnet with high flux density for superior SPL performance.
  • Double layer copper coil wound on KSV support for exceptional thermal and mechanical resistance.
  • High current terminals tinned for maximum conductivity.
  • Damped fabric suspension for maximum lightness and high SPL performance.
  • Pressed paper cone with water-repellent treatment.

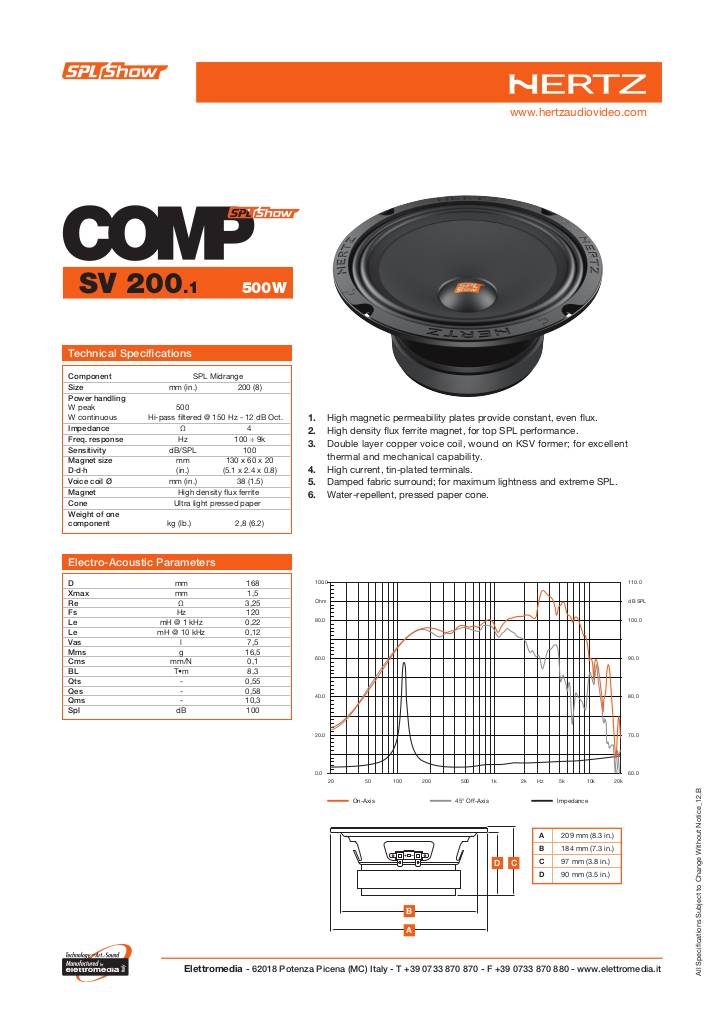

Scheda tecnica

20121113105312-hertz-splshow-sv200-1-tech.pdf

Hertz SV 200.1 Technical Specifications

  • Size 200 mm (8")
  • Maximum power 500 W
  • Impedance 4 Ohm
  • Frequency response 100 ÷ 9k Hz
  • Sensitivity 100 dB SPL
  • Coil Ø 38 mm (1.5")
  • Installation depth 90mm
€ 179,00 Price incl. VAT
